SwitchBlade x3106 Installation Guide
33
AT-SBx31XZ4 XFP Line Card
The AT-SBx31XZ4 XFP Line Card, shown in Figure 16, is a 10 Gigabit
Ethernet switch.

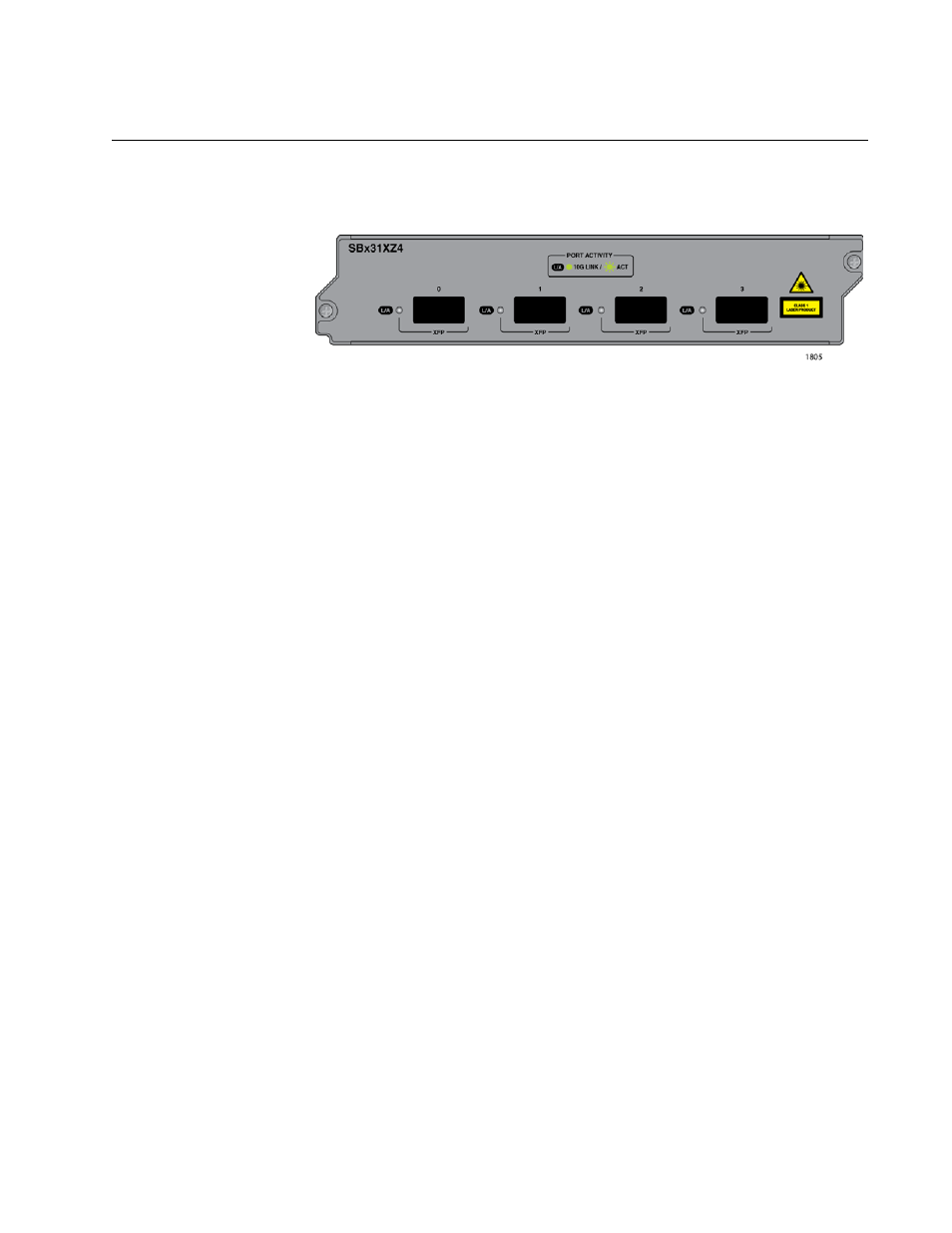

Figure 16. AT-SBx31XZ4 XFP Line Card
Here are the main features of the line card:
 Four slots for 10Gbps XFP transceivers
 Supports 10GBase-SR/LR/ER fiber optic transceivers
 Port Link/Activity (L/A) LEDs
 32K entry MAC address table
 24 Mb buffer memory
 Jumbo frame support:
– 10240 octets for tagged and untagged traffic
between ports on the same line card
– 10232 octets for untagged traffic between ports on
different line cards
– 10236 octets for tagged traffic between ports on
different line cards
 Non-blocking full-wire speed switching on all packet sizes, with two
AT-SBx31CFC Controller Cards
 Hot swappable
Contact your Allied Telesis sales representative for the list of supported
transceivers.
