Allied Telesis SwitchBlade x3106 User Manual
Page 120
Chapter 5: Installing the AT-SBx31CFC Card and Ethernet Line Cards
120

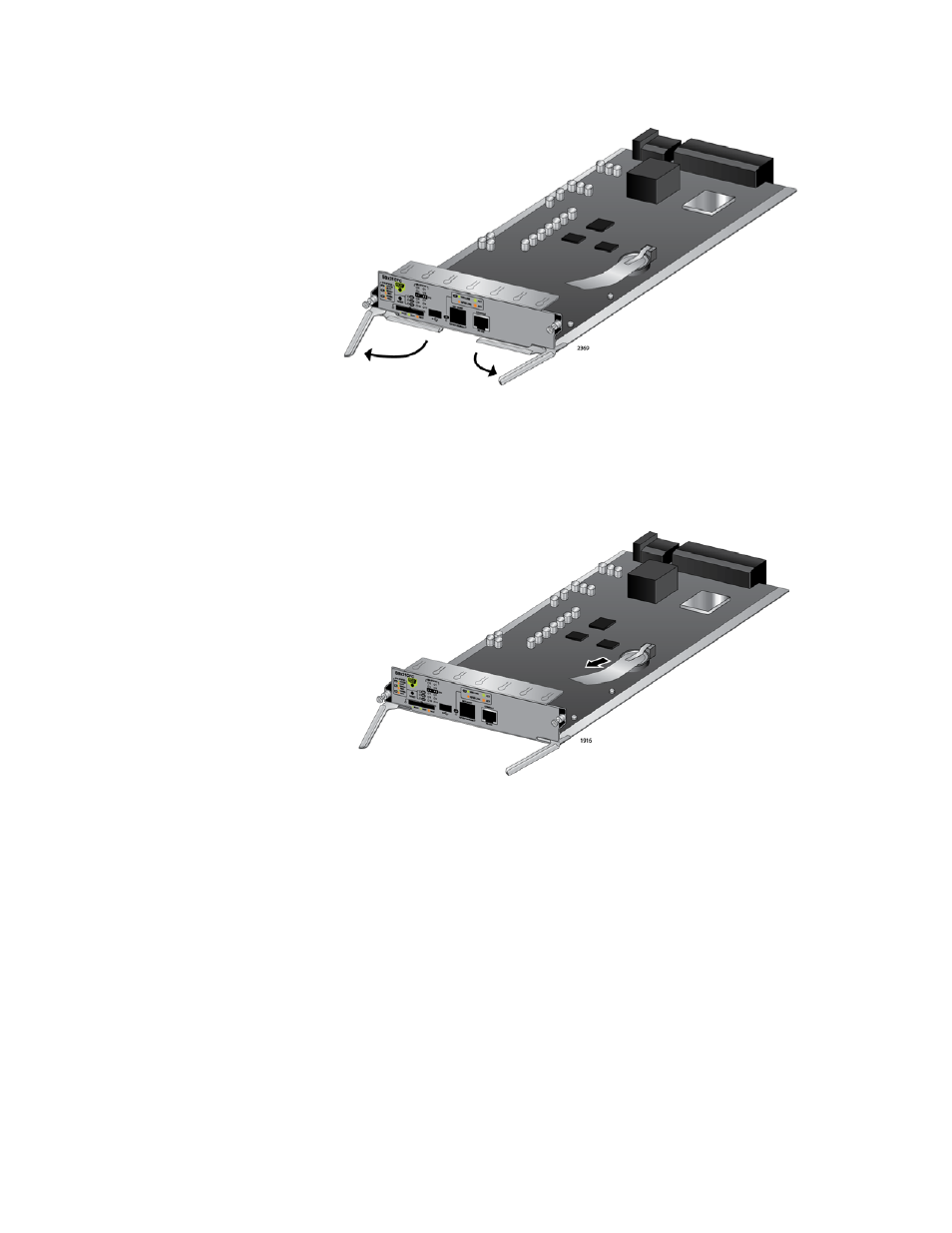

Figure 74. Opening the Locking Handles on the AT-SBx31CFC Controller
Fabric Card
5. Remove the battery insulator tab on the control card by sliding it out
from between the battery and battery clip, as shown in Figure 75.
Figure 75. Removing the Battery Insulator
6. Align the edges of the AT-SBx31CFC Management Fabric Card with
the internal chassis card guides in slot 4 or 5 of the AT-SBx3106
Chassis. Figure 76 on page 121 shows the AT-SBx31CFC Card
aligned in slot 4.
