Allied Telesis SwitchBlade x3106 User Manual
Page 179
SwitchBlade x3106 Installation Guide
179

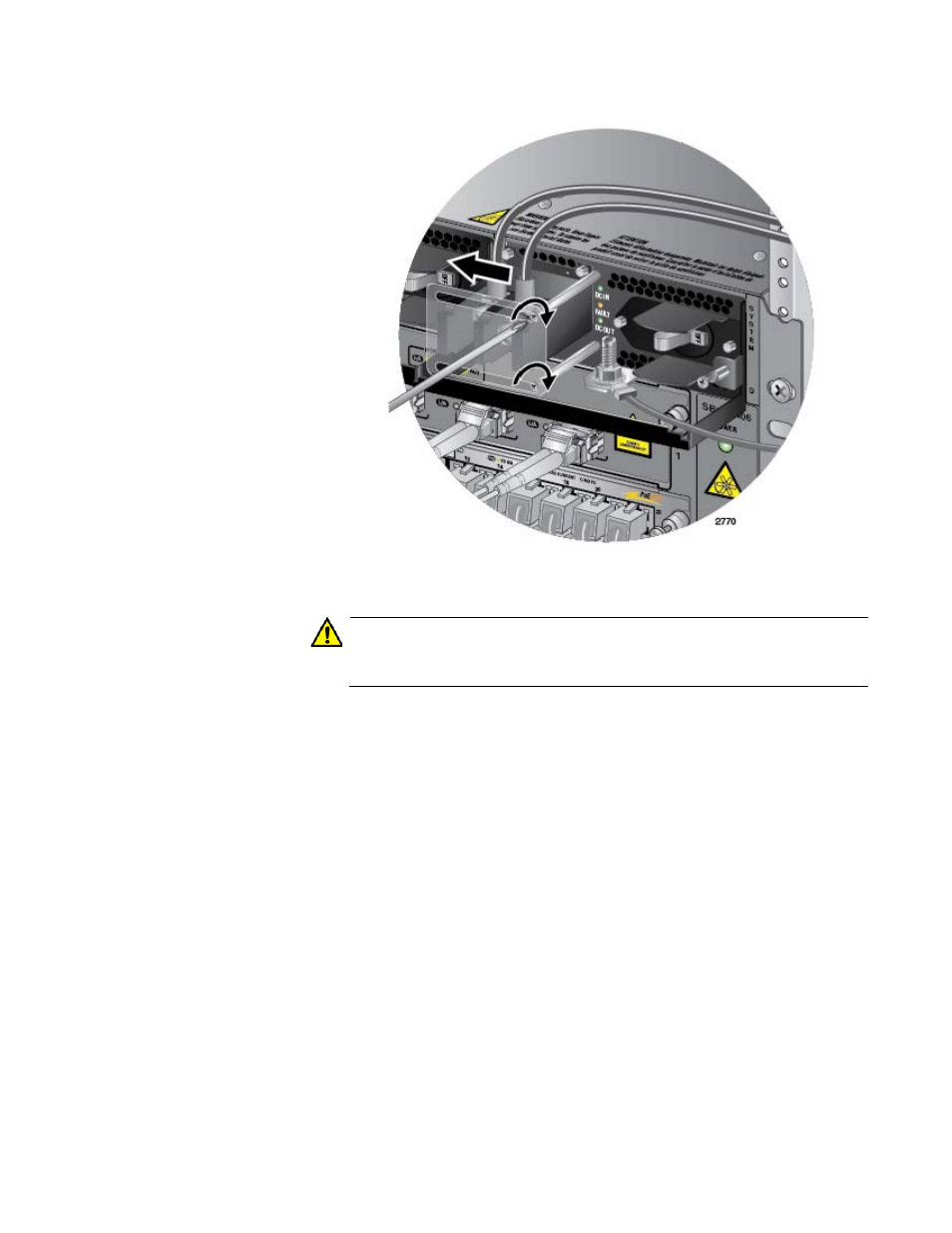

Figure 133. Closing the Plastic Cover over the Terminal Connectors
Caution
Do not over tighten the screws or you may crack or break the plastic
cover.
9. With a #2 Phillips-head screwdriver, tighten the handle locking screw
to secure the power supply to the chassis. See Figure 134 on page
180.
