Figure 138: removing the terminal screws – Allied Telesis SwitchBlade x3106 User Manual
Page 183
SwitchBlade x3106 Installation Guide
183

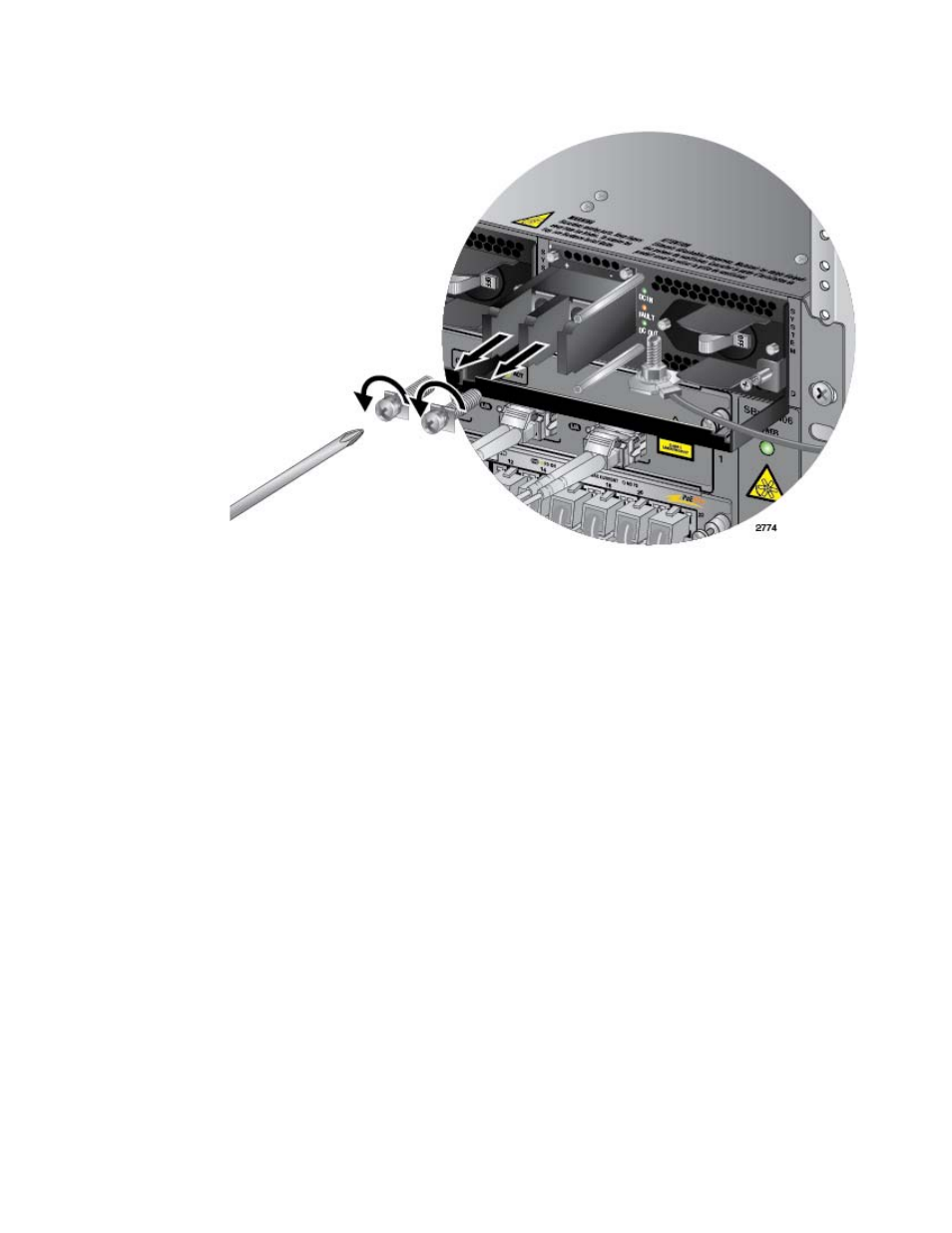

Figure 138. Removing the Terminal Screws
6. With a #3 Phillips-head screwdriver, connect the positive (+) power
lead wire to the positive terminal on the power supply, with one of the
terminal screws removed in the previous step. The positive terminal is
on the left. Refer to Figure 139 on page 184.
Allied Telesis recommends tightening the screw to 30 to 40 inch-lbs.
