Chapter 1: Overview
34
AT-SBx31XS6 SFP+ Line Card
The AT-SBx31XS6 Line Card, shown in Figure 17, is a 10 Gigabit
Ethernet switch.

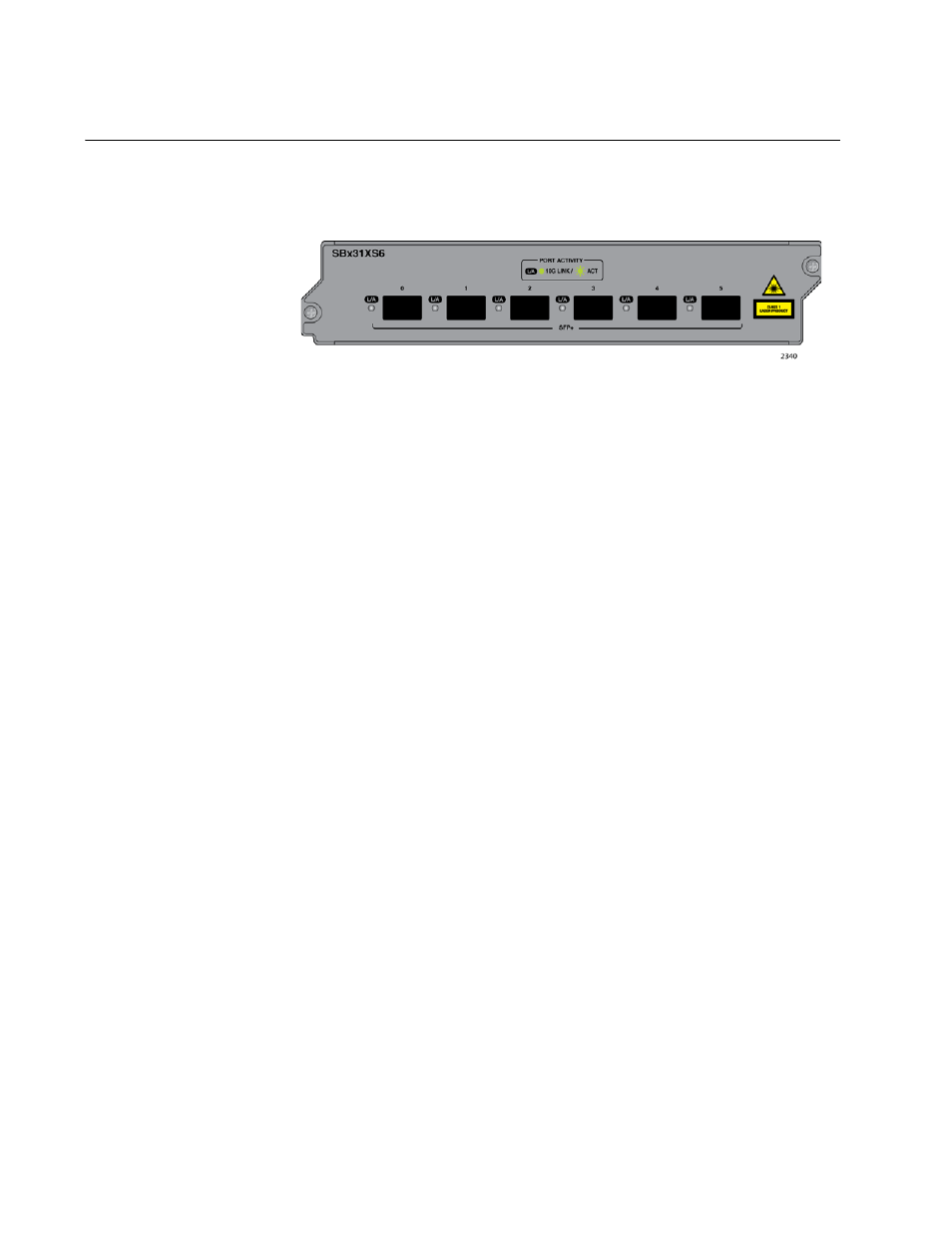

Figure 17. AT-SBx31XS6 Line Card
Here are the main features of the line card:
 Six slots for 10 Gbps SFP+ transceivers
 Supports 10GBase-SR/LR fiber optic transceivers
 Supports AT-SP10TW direct connect twisted pair cables with
SFP+ transceiver-style connectors
 Port Link/Activity (L/A) LEDs
 32K entry MAC address table
 24 Mb buffer memory
 Jumbo frame support:
– 10240 octets for tagged and untagged traffic
between ports on the same line card
– 10232 octets for untagged traffic between ports on
different line cards
– 10236 octets for tagged traffic between ports on
different line cards
 Hot swappable
Contact your Allied Telesis sales representative for the list of supported
transceivers.
