SwitchBlade x3106 Installation Guide
173

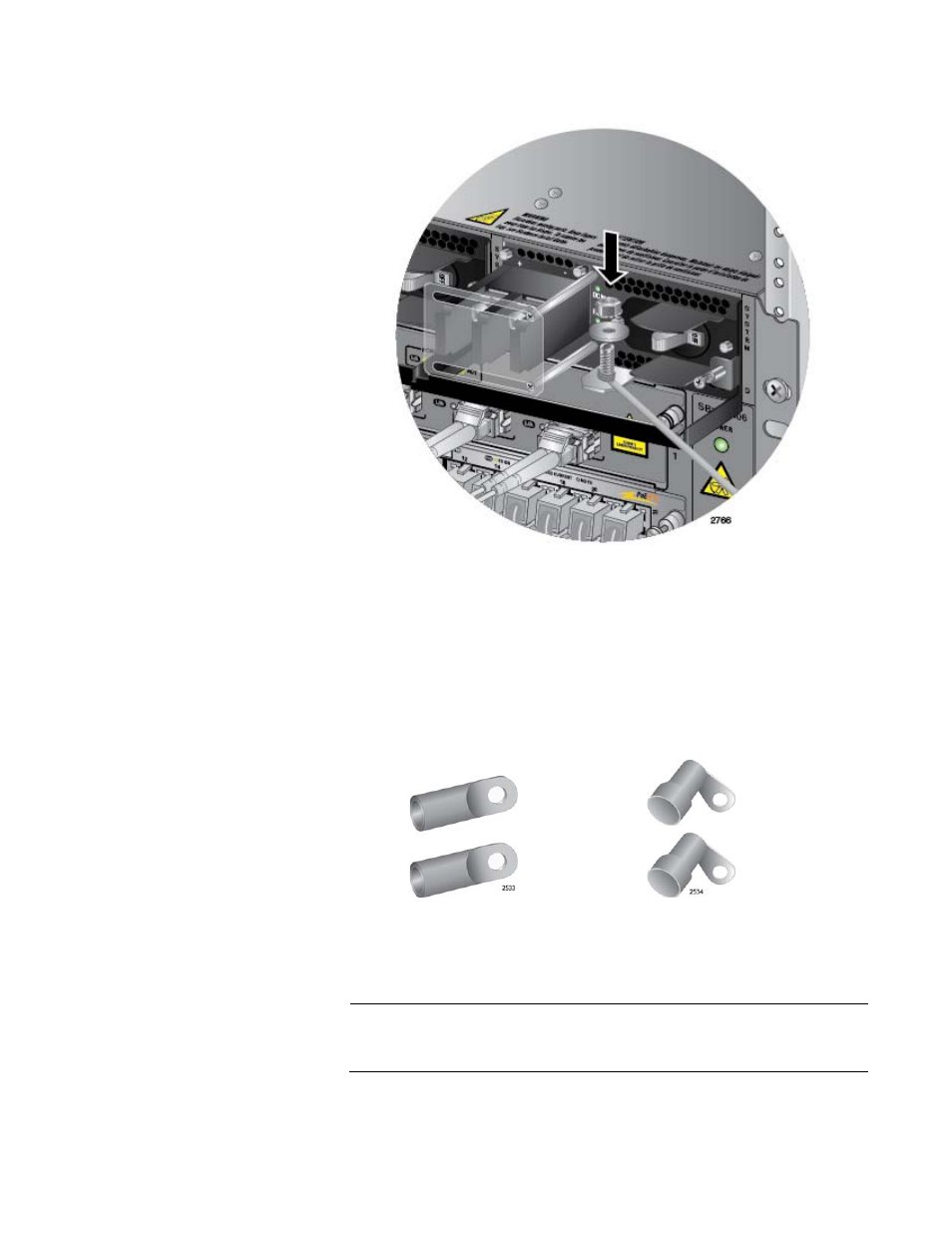

Figure 124. Securing the Bare Grounding Wire to the Grounding Post
Choosing a
Method for
Attaching the
Power Wires
The AT-SBxPWRSYS1 DC Power Supply comes with two sets of power
wire terminals. The terminals are shown in Figure 125. You may use either
set to connect the positive (+) and negative (-) wires to the terminal block
on the power supply. The straight terminals are used to route the wires
above or below the terminal block. The right angle terminals are used to
route the power wires directly away from the terminal block.
Figure 125. Power Wire Terminals
Note
The right angle terminals require the removal of the plastic cover
from the terminal block.
Straight Terminals Right Angle Terminals
