Allied Telesis SwitchBlade x3106 User Manual
Page 222
Chapter 10: Replacing Modules
222
2. Lift the locking hand on the power supply. Refer to Figure 153.

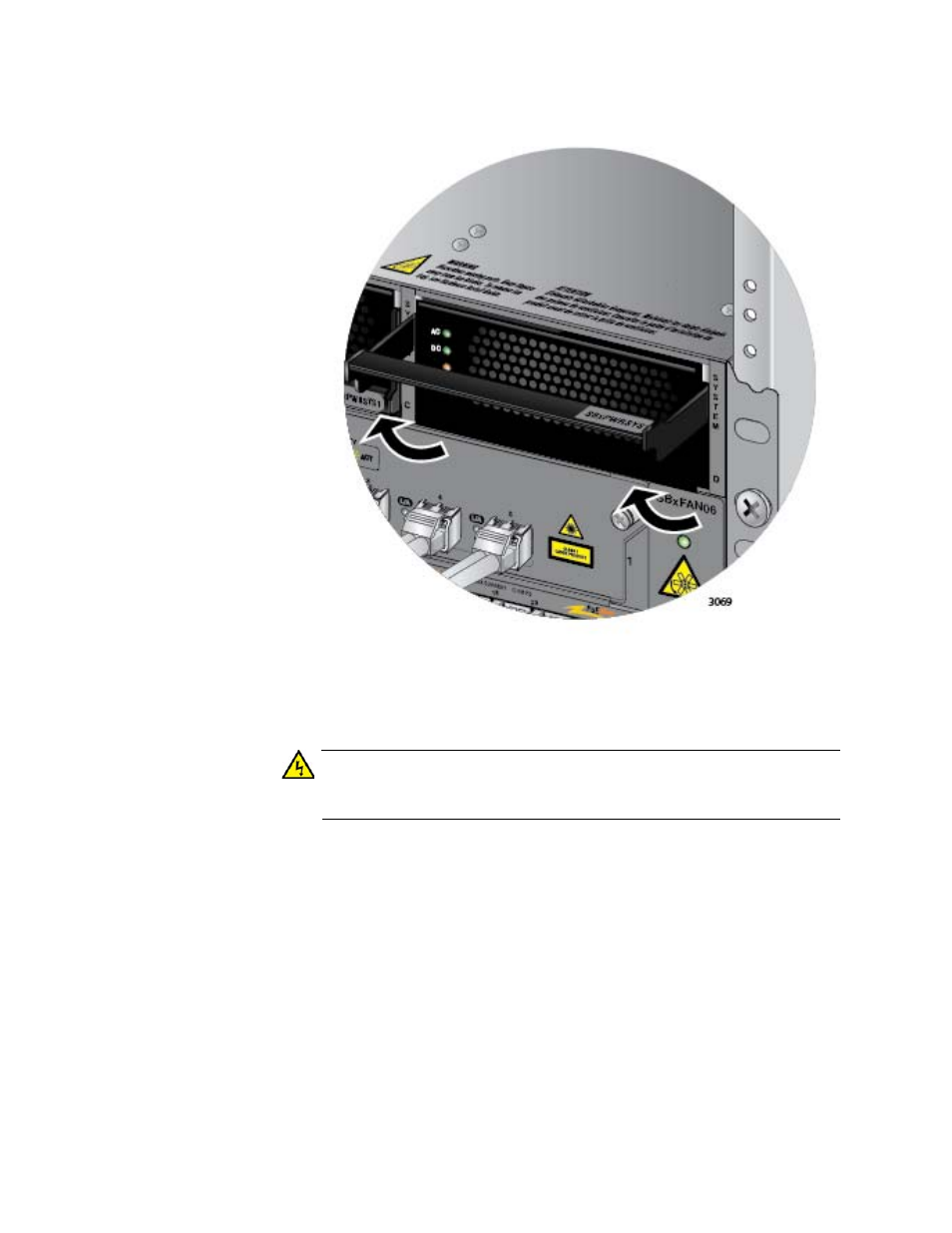

Figure 153. Lifting the Locking Handle on the Power Supply
3. Carefully pull on the locking handle to slide the power supply from the
chassis. Refer to Figure 154 on page 223.
Warning
The power supply is heavy. Use both hands to hold the module as
you remove it from the chassis.
