Installing AT-SP10TW Cables in the AT-SBx31XS6 Line Card
This procedure explains how to connect AT-SP10TW Cables to the AT-
SBx31XS6 Line Card. The cables may be used in place of fiber optic
cables and transceivers for 10 Gbps links of up to 7 meters.
Note
The AT-SP10TW Cable is only supported in the AT-SBx31XS6 Line
Card.
To install the AT-SP10TW Cable, perform the following procedure:
1. Remove the dust plug from the SFP+ slot chosen for the cable.
Figure 102 shows the dust plug being removed from SFP+ slot 0 in the
line card in chassis slot 0.

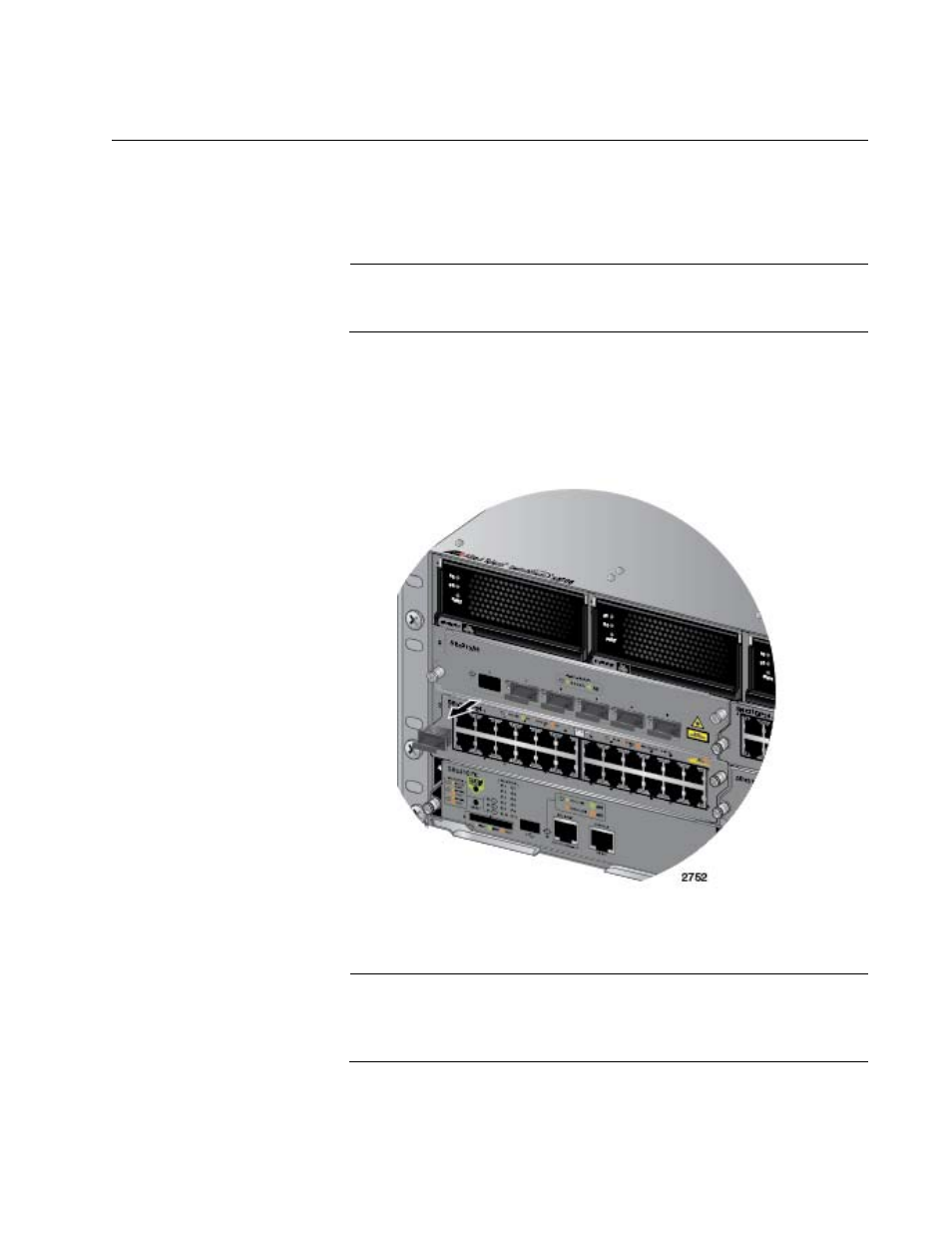

Figure 102. Removing the Dust Cover From an SFP+ Slot in the AT-
SBx31XS6 Line Card
Note
Do not remove the dust plug from a SFP+ slot if you are not
installing the transceiver at this time. The dust plug protects the line
card from dust contamination.
