SwitchBlade x3106 Installation Guide
111

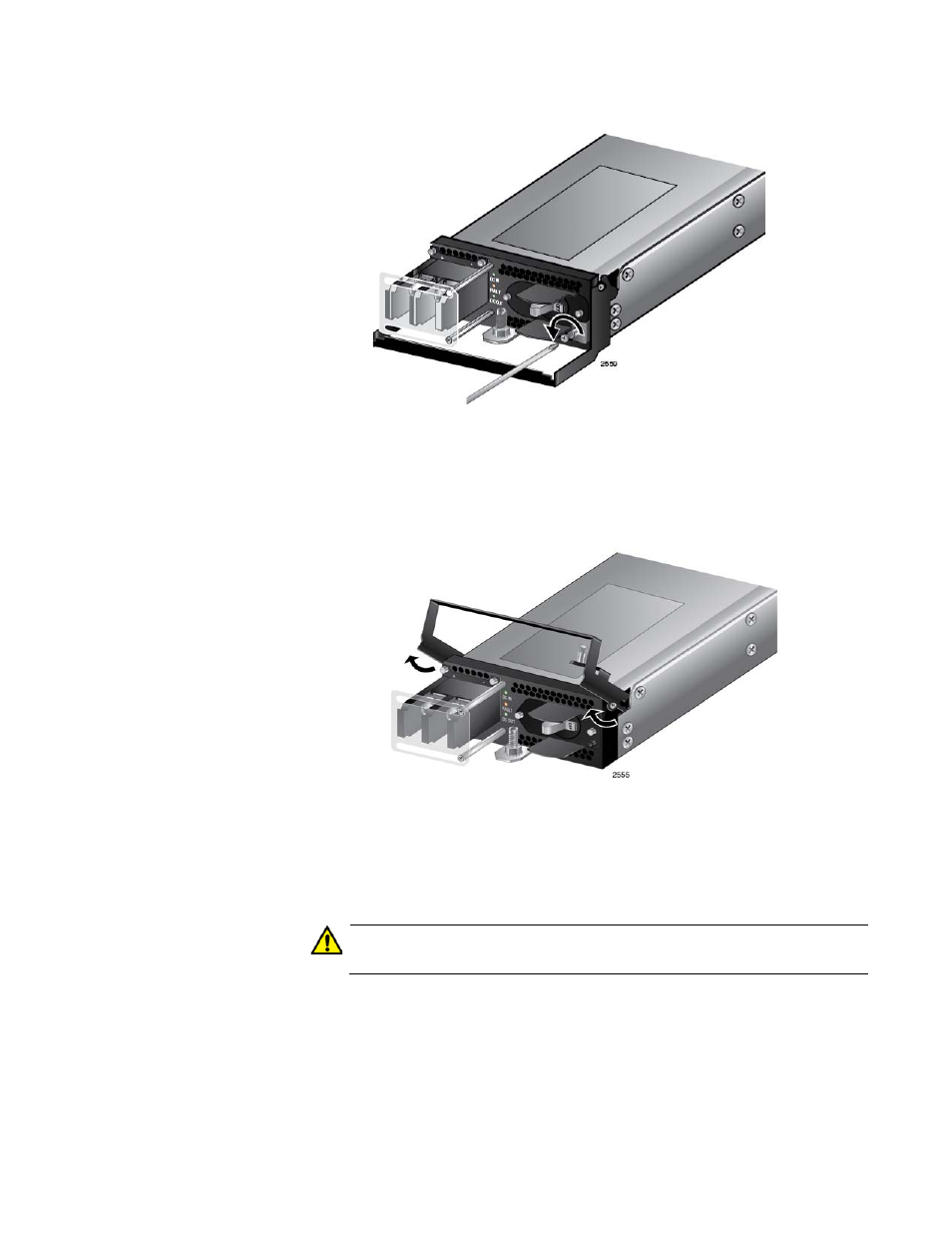

Figure 66. Loosening the Handle locking Screw on the AT-SBxPWRPOE1
DC Power Supply
5. Raise the locking handle on the AT-SBxPWRPOE1 DC Power Supply,
as shown Figure 67.
Figure 67. Raising the Handle on the AT-SBxPWRPOE1 DC Power
Supply
6. Align and insert the AT-SBxPWRSYS1 Module into slot C or D. Figure
68 on page 112 shows the power supply installed in slot D.
Caution
The AT-SBxPWRSYS1 DC Power Supply will not work in slot A or B.
