Chapter 7: Powering On the Chassis
172
Connecting the
Grounding Wire
with Bare Wire
To attach the grounding wire to the power supply with bare wire, perform
the following procedure:
1. Prepare an adequate length of solid or stranded 10 AWG grounding
wire by stripping it as shown in Figure 122.

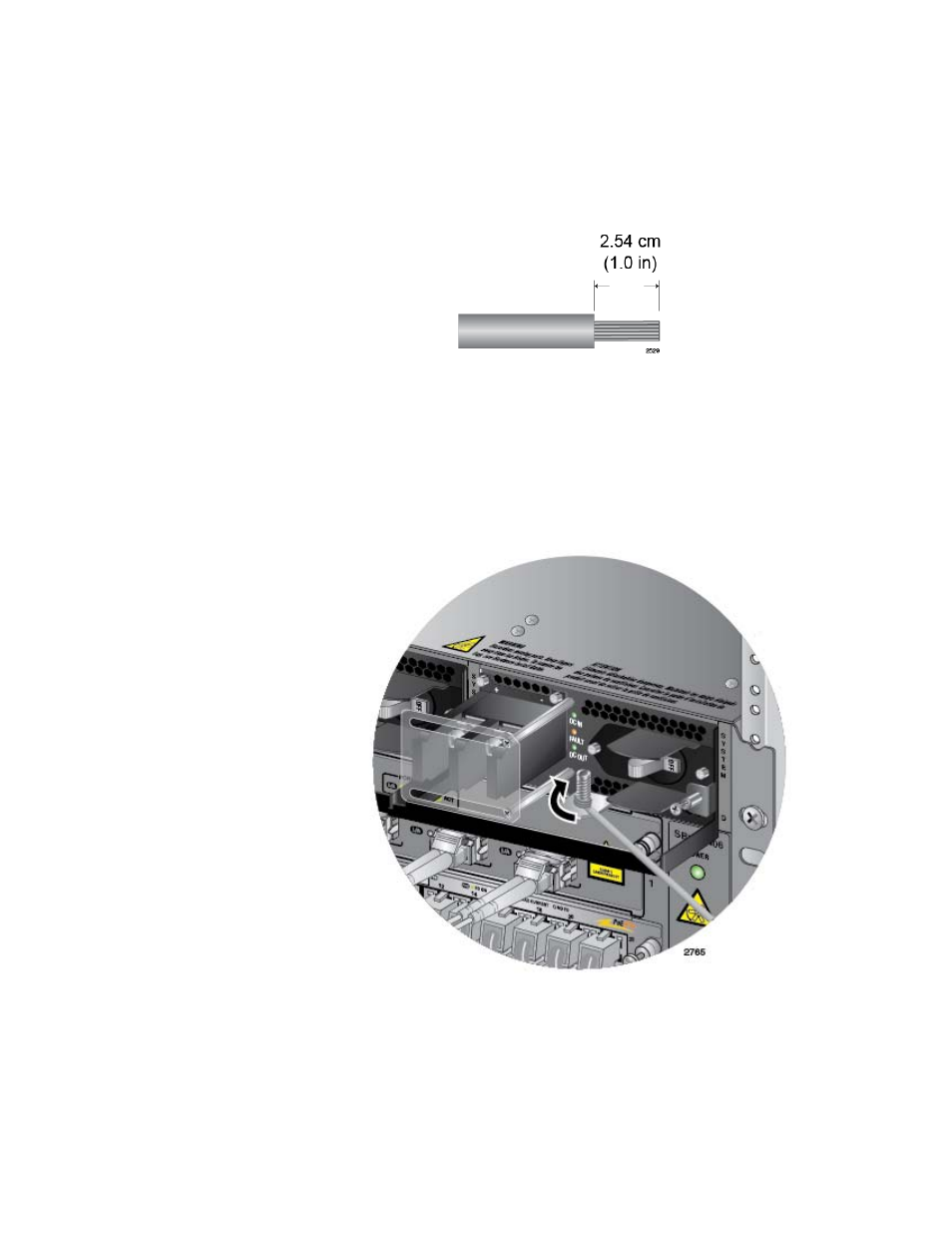

Figure 122. Stripping the solid or Stranded Grounding Wire
2. Use an 8 mm wrench to remove the grounding post nut and washer,
shown in Figure 120 on page 170, from the grounding post on the
power supply.
3. Wrap the grounding wire clockwise around the base of the grounding
post, as shown in Figure 123.
Figure 123. Attaching the Bare Grounding Wire to the Grounding Post
4. Secure the wire with the nut and washer removed in step 2, and an 8
mm wrench, as shown in Figure 124 on page 173.
