L name, shown in figure 54 on – Allied Telesis SwitchBlade x3106 User Manual
Page 100
Chapter 4: Installing the Power Supplies
100

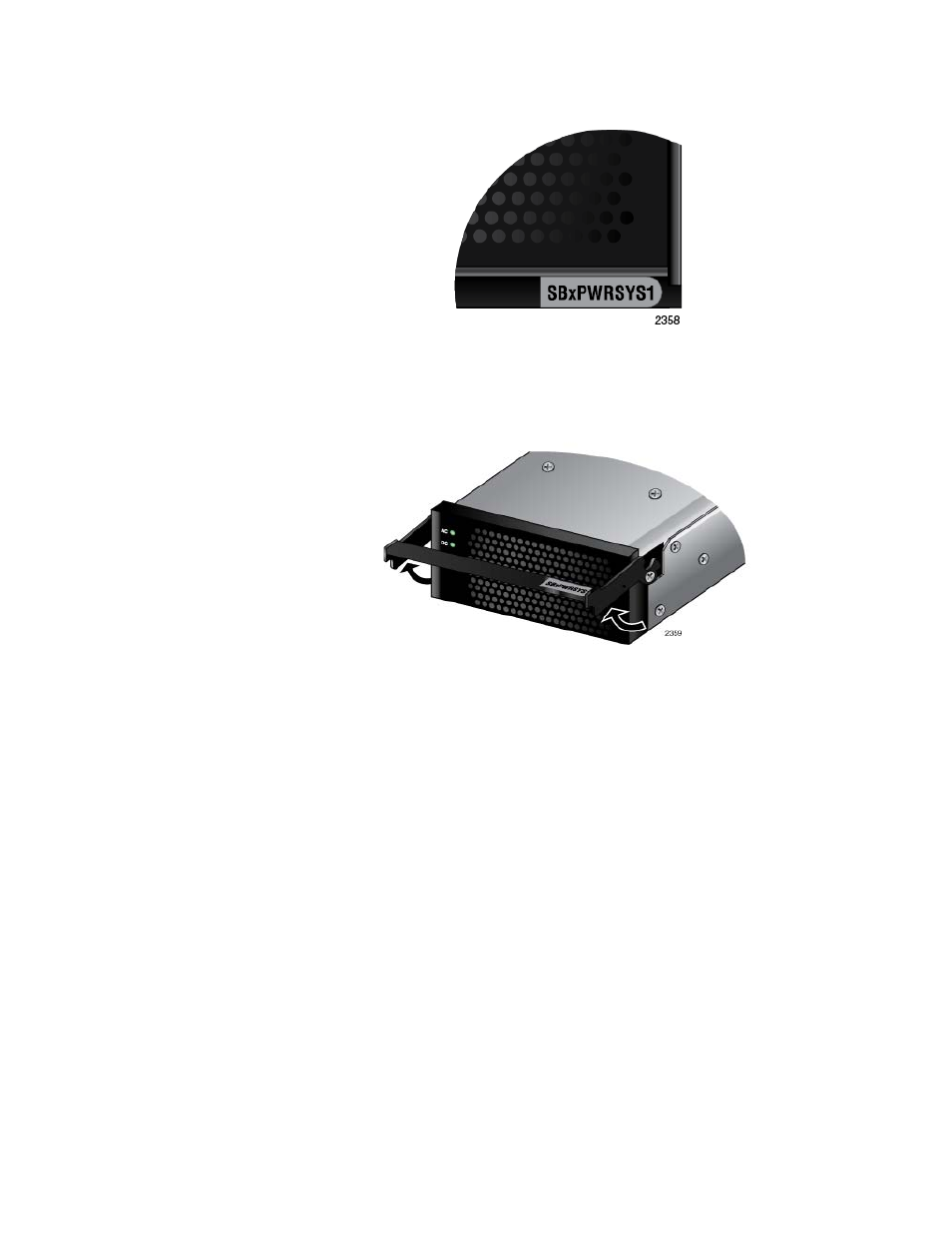

Figure 54. Verifying the AT-SBxPWRSYS1 AC Power Supply
5. Move the locking handle on the AT-SBxPWRSYS1 AC Power Supply
to the unlocked or up position. See Figure 55.
Figure 55. Raising the Handle on the AT-SBxPWRSYS1 AC Power
Supply
6. Align and insert the AT-SBxPWRSYS1 AC Power Supply into the
power supply slot. Figure 56 on page 101 shows the power supply
being installed in slot D.
