SwitchBlade x3106 Installation Guide
21
Figure 3. Ethernet Line Cards and AT-SBx31CFC Central Fabric
Controller Card (Continued)
The three power supplies are shown in Figure 4.
Figure 4. Power Supply Units

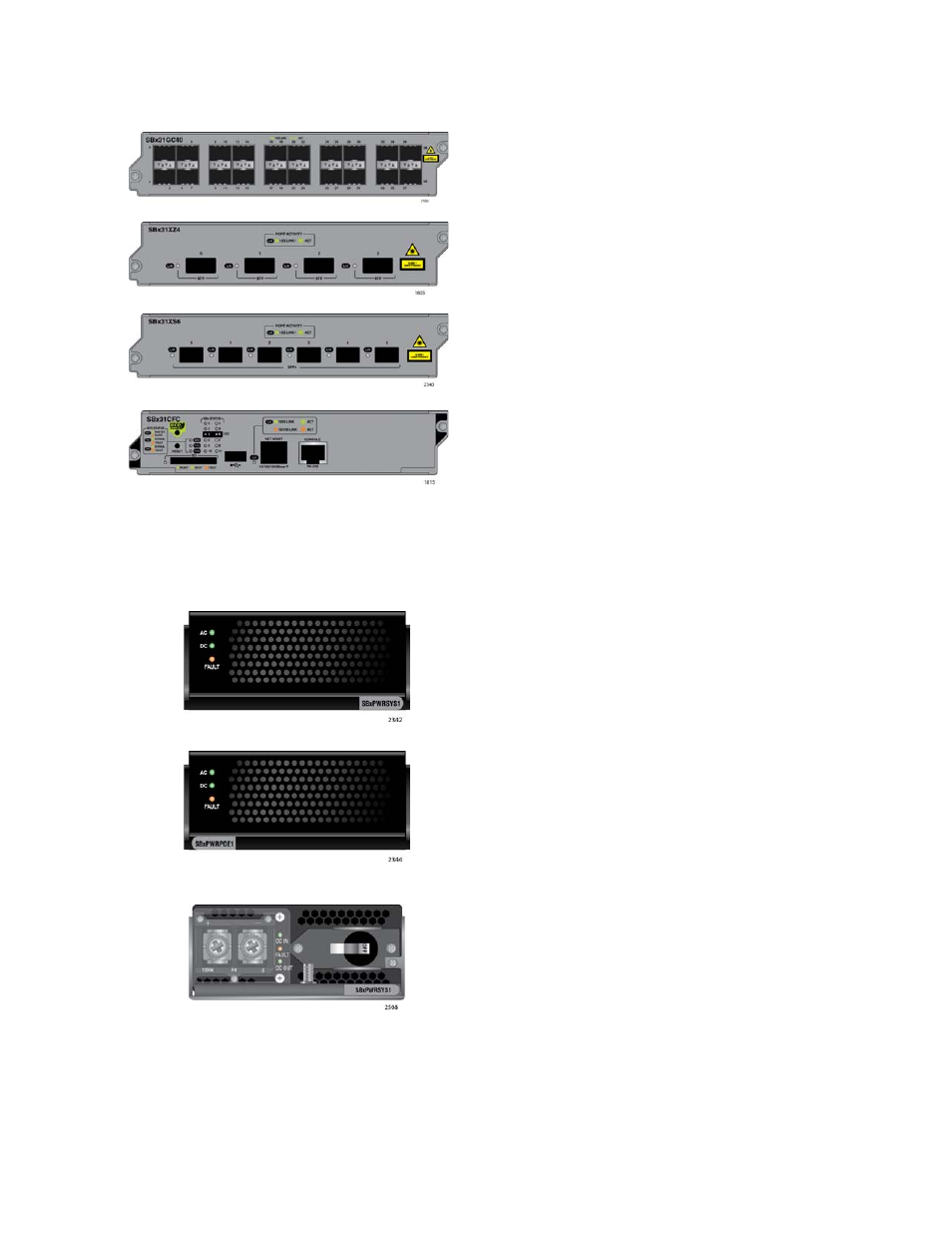

AT-SBx31XZ4 Ethernet Line Card with four
slots for 10 Gbps, fiber optic XFP
transceivers.
AT-SBx31XS6 Ethernet Line Card with six
slots for 10 Gbps, fiber optic SFP+
transceivers or Twinax direct connect
cables.
AT-SBx31CFC Central Fabric Controller
Card
AT-SBx31GC40 Ethernet Line Card with 20
slots for 1000Mbps standard SFP or
compact SFP (CSFP) BiDi transceivers.
AT-SBxPWRSYS1 AC Power Supply for the
Ethernet line cards, controller modules, and
fan module.
AT-SBxPWRPOE1 AC Power Supply with
1200 W PoE budget for the ports on the AT-
SBx31GP24 PoE Ethernet Line Card.
AT-SBxPWRSYS1 DC Power Supply for the
Ethernet line cards, controller modules, and
fan module.
