3. To install an SFP or a CSFP transceiver in a slot on the top row of the
line card, orient it with the label on top, as shown in Figure 93. To
install it into a slot on the bottom row of the line card, orient it with the
label on the bottom.

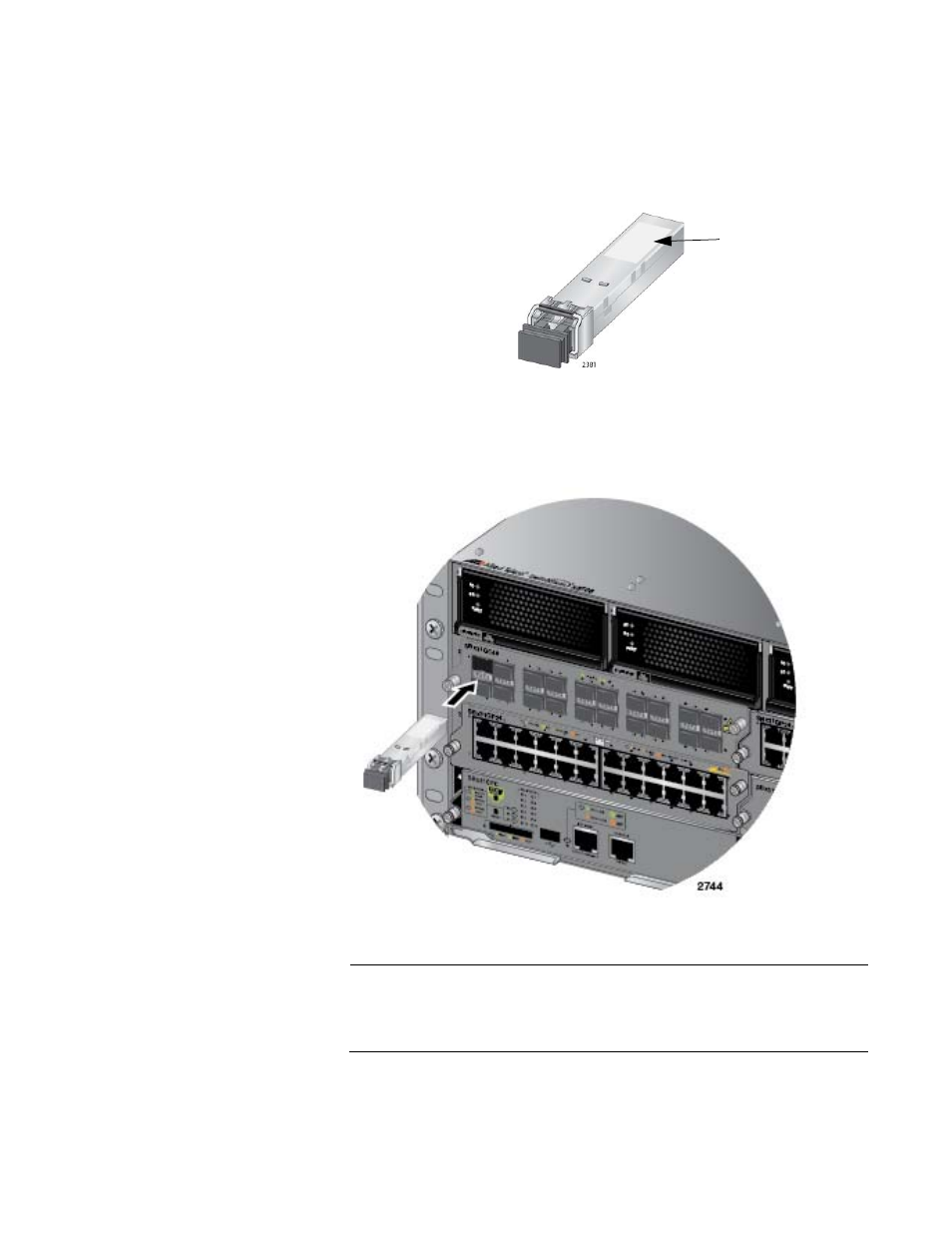

Figure 93. Labels on SFP and CSFP Transceivers
4. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 94.
Figure 94. Inserting an SFP or a CSFP Transceiver
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 4 to install
the remaining SFP and CSFP transceivers in the line cards.
Label
