Allied Telesis SwitchBlade x3106 User Manual
Page 150
Chapter 6: Installing the Transceivers and Cabling the Ports
150
2. Orient the connector on the AT-SP10TW cable so that the release tab
is on top, as shown in Figure 103.

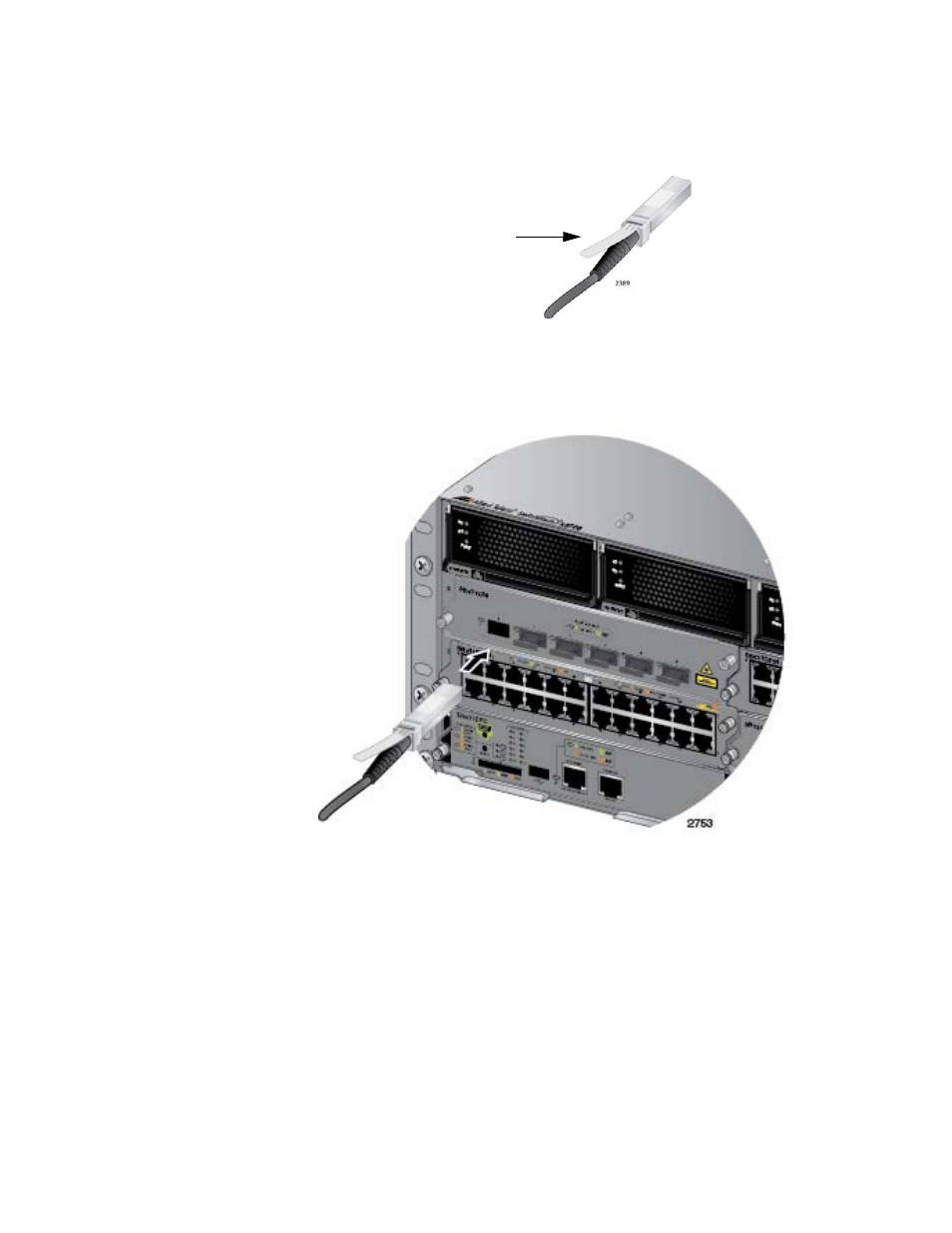

Figure 103. Release Tab on the AT-SBx31XS6 Line Card
3. Slide the connector into the slot until it clicks into place, as shown in
Figure 104. Installing the AT-SP10TW Cable in the AT-SBx31XS6 Line
Card
4. Install the other end of the cable into an SFP+ slot on another network
device.
5. Repeat this procedure to install additional AT-SP10TW Cables.
Release Tab
