Displaying Trend graph KEW6315
- 97 - KEW6315
”Type of value”
Any of the following values can be displayed in each column.
Inst: Instantaneous value, or AVG: Average value, MAX: Maximum value or MIN: Minimum value within the
selected interval.
If the selected interval is “1 sec”, Inst, Avg, Max and Min values will be the same since the display update
is also “1 sec”.
Move the blue highlight to a Type of value in any column. Show the pull-down menu.
Select a desirable type. Confirm. Cancel.
“List display”
Press the (List) key to display all the values on the list.
”4-Split”/ ”8-Split”
Press the (4-Split/ 8-Split) key to expand and display 4 or 8 items on one screen.

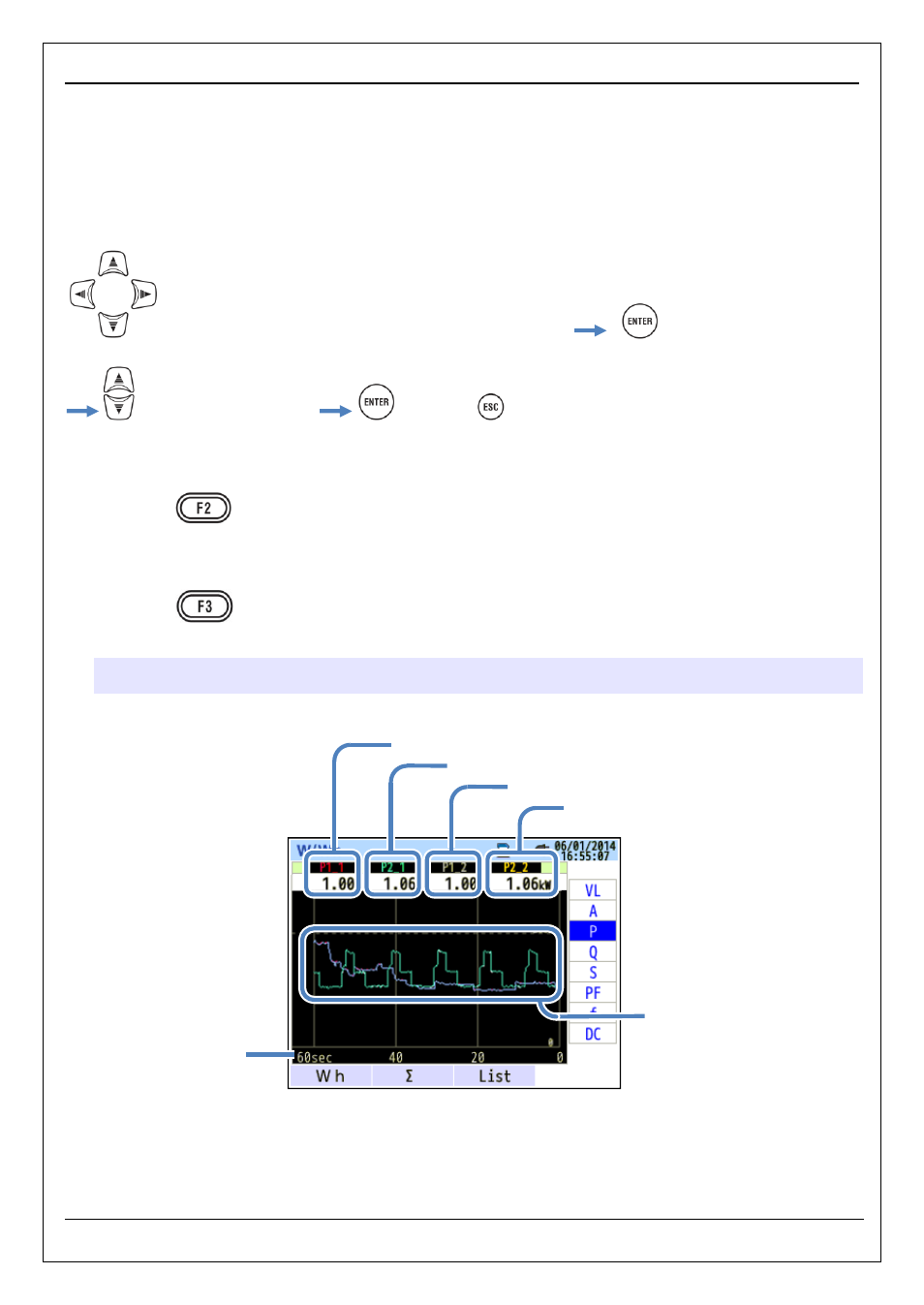

Displaying Trend graph
In the following example, active powers per ch for 1P3W-2 (Single-phase 3-wire, 2-system) are displayed
on the graph.
Changes of each measured values can be displayed on the graph.
Inst value on 1ch of system 1
Inst value on 2ch of system 1
Inst value on 1ch of system 2
Lines are colored per ch.
Inst value on 2ch of system 2
Elapsed time
