Putting Input terminal plate on the Input terminal KEW6315
- 27 - KEW6315
4 Getting started
4.1 Preparation

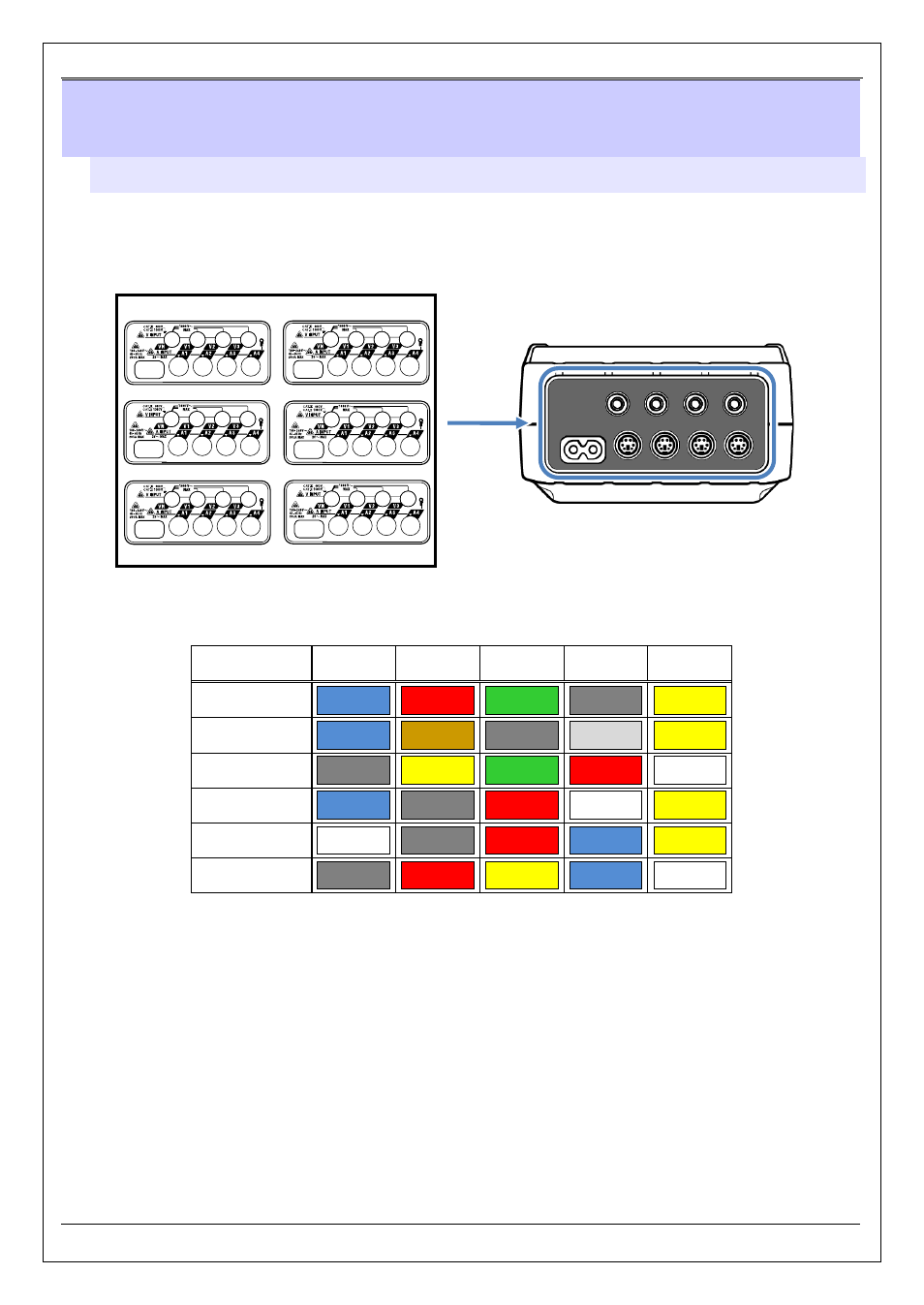

Putting Input terminal plate on the Input terminal
Six Input terminal plates are supplied with this instrument. Choose one Plate which matches the standard
cord colors where the instrument is used. Put the Plate to the Input terminal observing the orientation.
* Clean the Input terminal before putting the Plate and confirm it isn’t wet.
VN V1/A1 V2/A2 V3/A3 A4
TYPE 1 blue red green black yellow
TYPE 2 blue brown black gray yellow
TYPE 3 black yellow green red white
TYPE 4 blue black red white yellow
TYPE 5 white black red blue yellow
TYPE 6 black red yellow blue white
TYPE1
TYPE2
TYPE3
TYPE4
TYPE5
TYPE6
Input terminal plate
Put a proper Input terminal plate.
