2.2 Connector KEW6315
- 17 - KEW6315

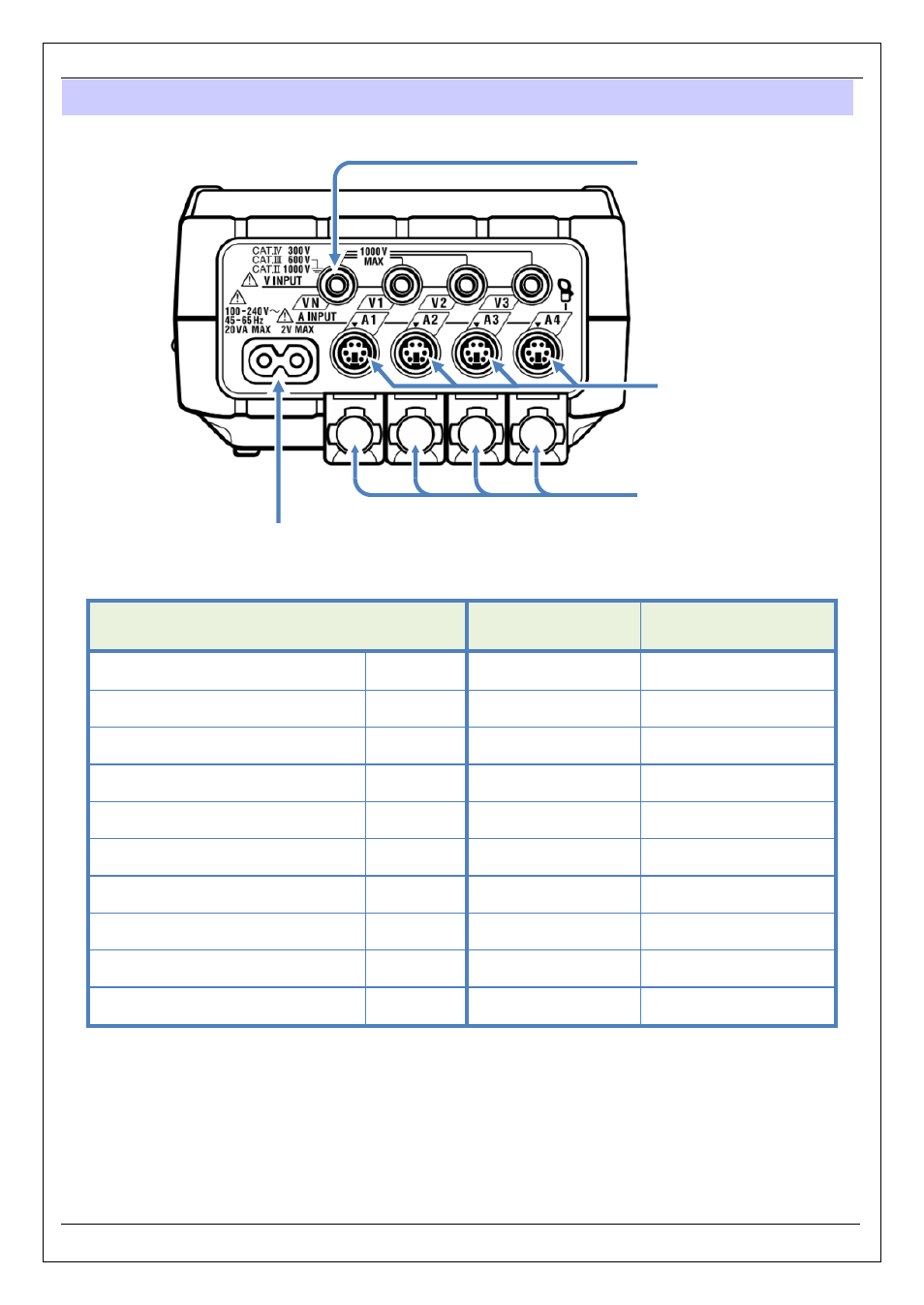

2.2 Connector
Wiring configuration
AC Voltage Input
Terminal
Current Input
Terminal*
Single-phase 2-wire (1-system) 1P2W×1 VN, V1 A1
Single-phase 2-wire (2-system) 1P2W×2 VN, V1 A1, A2
Single-phase 2-wire (3-system) 1P2W×3 VN, V1 A1, A2, A3
Single-phase 2-wire (4-system) 1P2W×4 VN, V1 A1, A2, A3, A4
Single-phase 3-wire (1-system) 1P3W×1 VN, V1, V2 A1, A2
Single-phase 3-wire (2-system) 1P3W×2 VN, V1, V2 A1, A2, A3, A4
Three-phase 3-wire (1-system) 3P3W×1 VN, V1, V2 A1, A2
Three-phase 3-wire (2-system) 3P3W×2 VN, V1, V2 A1, A2, A3, A4
Three-phase 3-wire 3A 3P3W3A V1, V2, V3 A1, A2, A3
Three-phase 4-wire 3P4W×1 VN, V1, V2, V3 A1, A2, A3
* Measurements of r.m.s. values and harmonics are possible at the Current terminals, which are
not used for wiring connection.
AC Voltage Input Terminal
(VN, V1, V2, V3)
Power Connector
Current Input Terminal
(A1, A2, A3, A4)
Terminal Cover
