KEW6315 10.4 Specification of Clamp sensor
KEW6315 - 152 -

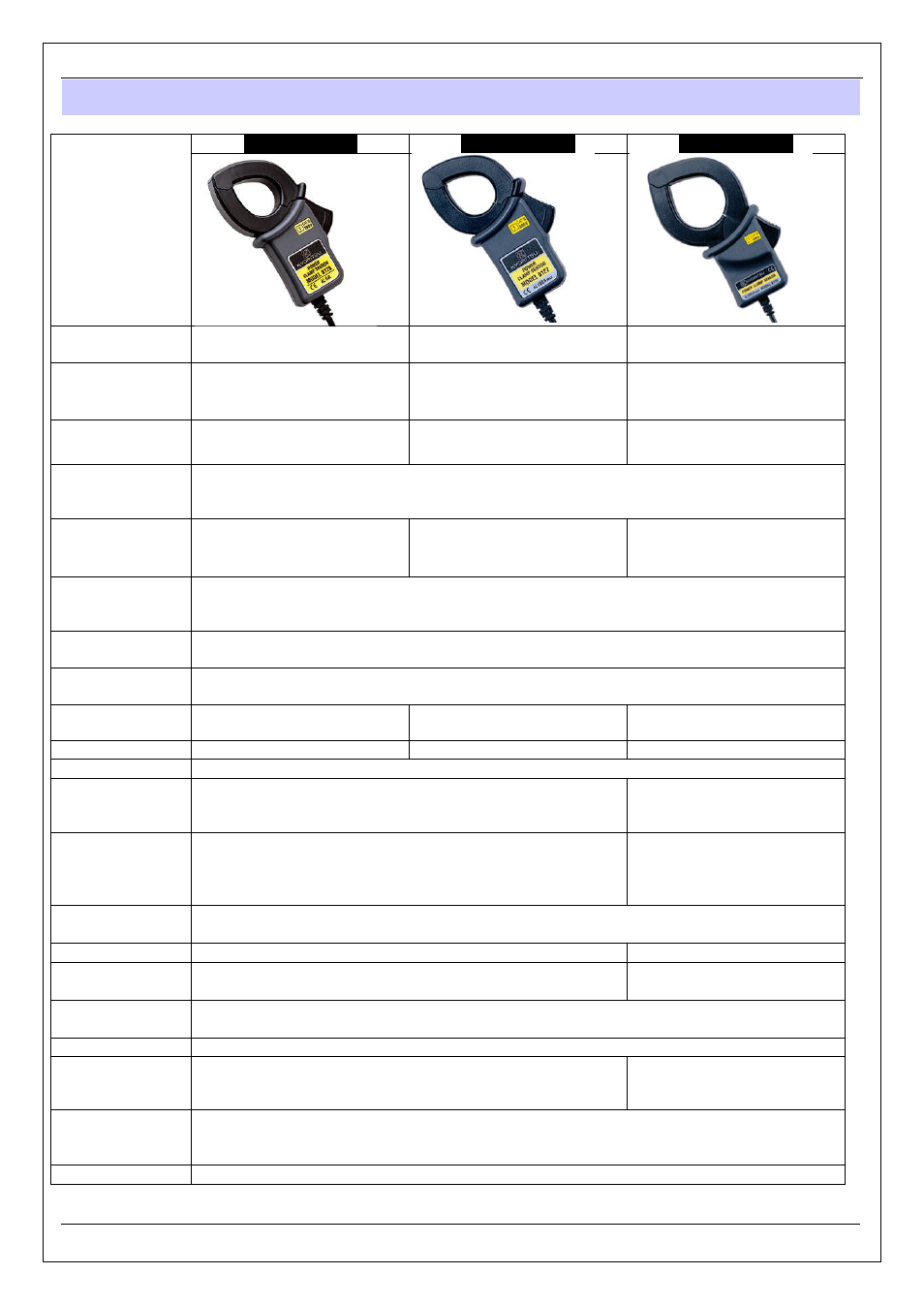

10.4 Specification of Clamp sensor
Rated current
AC 5Arms
[Max. AC50Arms(70.7Apeak)]
AC 100Arms
(141Apeak)
AC 200Arms
(283Apeak)
Output voltage
0 - 50mV (AC 50mV/AC 5A)
[Max.AC 500mV/AC50A]:10mV/A
AC0 - 500mV
(AC500mV/AC100A):5mV/A
AC0 - 500mV
(AC 500mV/AC200A):2.5mV/A
Measuring range AC0 - 50Arms AC0 - 100Arms AC0 - 200Arms
Accuracy
(sine wave input)
±0.5%rdg±0.1mV (50/60Hz)
±1.0%rdg±0.2mV (40Hz - 1kHz)
Phase
characteristics
within ±2.0°
(0.5 - 50A/45 - 65Hz)
within ±2.0°
(1 - 100A/45 - 65Hz)
within ±1.0°
(2 - 200A/45 - 65Hz)
Temp. & humidity
range (guaranteed
accuracy)
23±5ºC, relative humidity 85% or less (no condensation)
Operating temp.
range
0 - 50ºC, relative humidity 85% or less (no condensation)
Storage temp.
range
-20 to 60ºC, relative humidity 85% or less (no condensation)
Allowable input AC50Arms (50/60Hz) AC100Arms (50/60Hz) AC200Arms(50/60Hz)
Output impedance Approx. 20Ω Approx. 10Ω Approx. 5Ω
Location for use In-door use, altitude 2000m or less
Applicable
standards
IEC 61010-1,IEC 61010-2-032
Meas. CAT. III (300V), Pollution degree 2
IEC61326
IEC 61010-1, IEC 61010-2-032
Meas. CAT. III (600V),
Pollution degree 2, IEC61326
Withstand voltage
AC3540V/5 sec.
Between Jaws – Enclosure,
Enclosure – Output terminal, and
Jaws – Output terminal
AC5350V/5 sec.
Between Jaws – Enclosure,
Enclosure – Output terminal, and
Jaws – Output terminal
Insulation
resistance
50MΩ or more/ 1000V
Between Jaws – Enclosure, Enclosure – Output terminal, and Jaws – Output terminal
Max conductor size Approx. ø24mm (max.) Approx. ø40mm (max.)
Dimension 100(L)×60(W)×26(D)mm 128(L)×81(W)×36(D)mm
Cable length Approx. 3m
Output terminal MINI DIN 6PIN
Weight Approx. 160g Approx. 260g
Accessory
Instruction manual
Cable marker
Optional parts 7146 (Banana ø 4 Adjuster plug), 7185(Extension cable)
