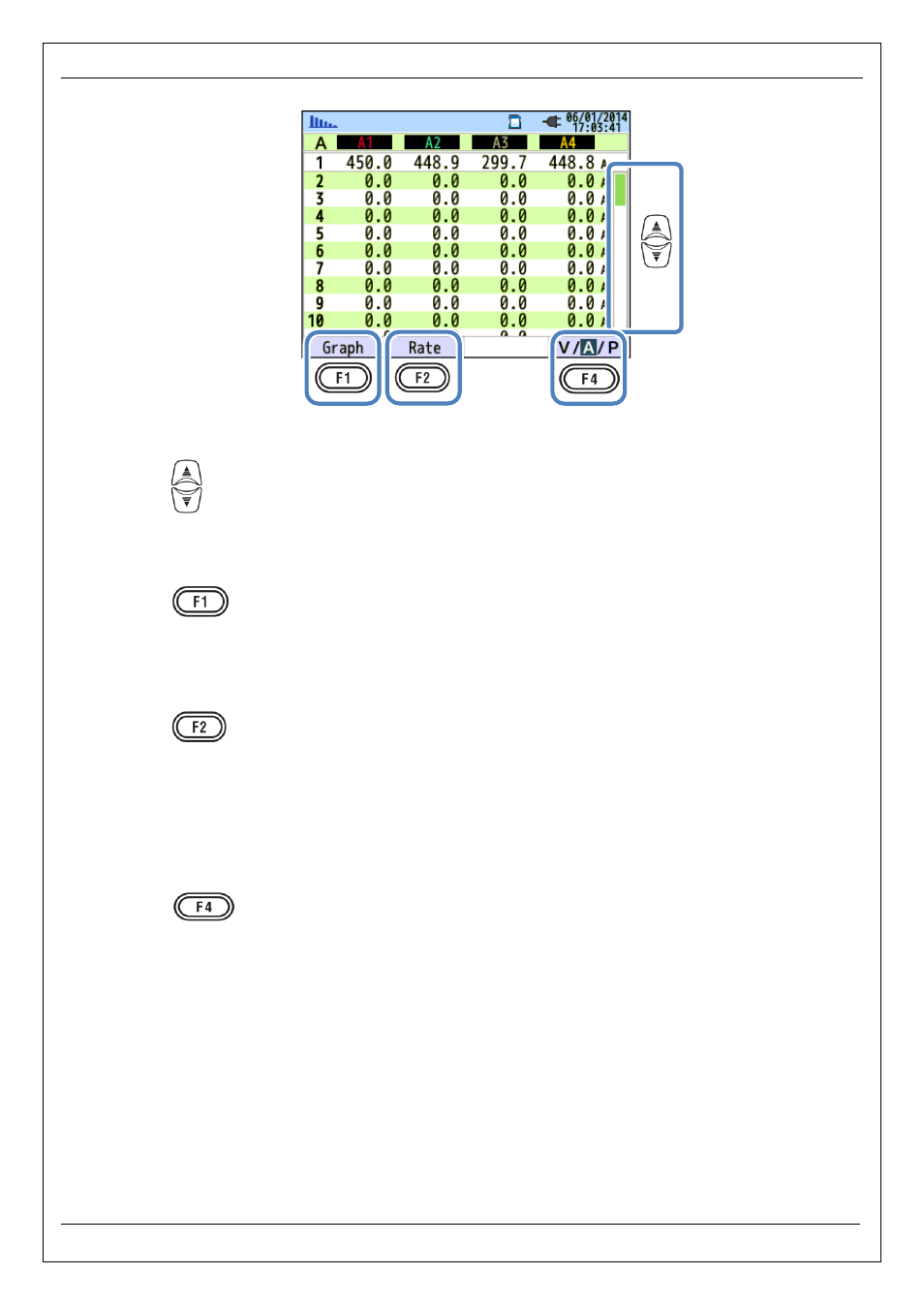

Displaying the list of harmonics KEW6315
- 113 - KEW6315
”Change the displayed harmonics orders”
Press the Key to scroll the page vertically.
”Graph”/ ”List”
Press the Key to display voltage/ current/ power harmonics, from 1
st
to 50
th
order, in list or
graphic form. Only the rate of harmonics content can be checked on graph display screen,
”Rate of content”/”Phase angle”/ RMS value (Power)”
Press the (Rate/ DEG/ RMS) Key to change the displayed items on the list. While “V”:voltage or
“A”: Current are displayed on the screen, Rate/ DEG (phase angle with V1 basis (0
o
)) / RMS are switchable.
While “P” (ΣP): Power is displayed, Rate/ DEG (voltage/ current phase angle per ch) / Power are
switchable.
“V”/”A”/”P/ΣP”
Press the (V/A/P/ΣP) Key and select the items to be analyzed: V: voltage/ A: Current/
P: Power (ΣP: Sum per system, Total amount).
