Page 108: Check
KEW6315

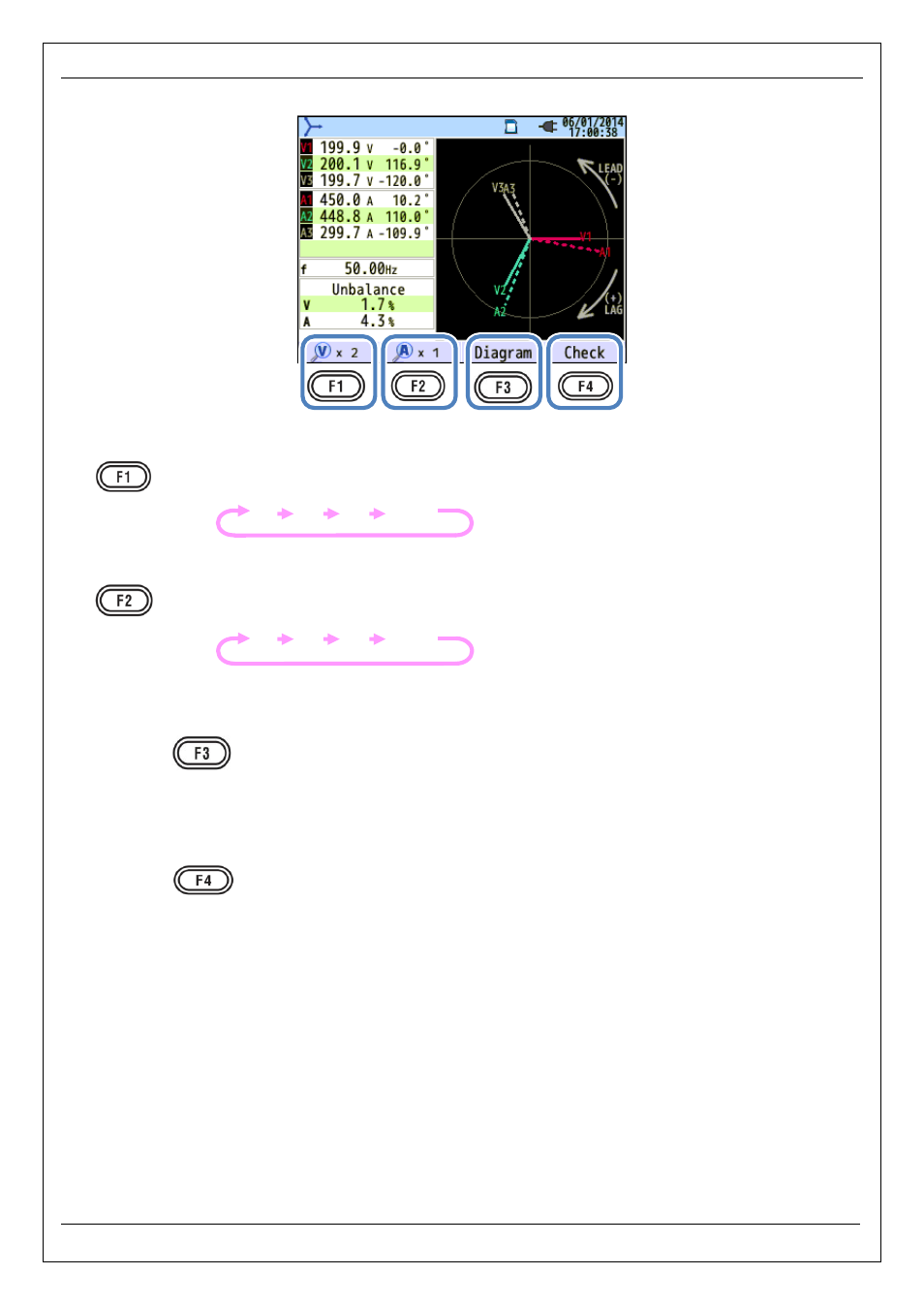

6.4 Vector
KEW6315
- 106 -
e.g.) Vector of 3P4W:
”V x desired magnification”
: toggle the line lengths of voltage vector.
1
2
5
10
”A x desired magnification”
: toggle the line lengths of current vector.
1
2
5
10
“Diagram”
Press the
(Diagram) Key to show the wiring diagram for the selected wiring configuration. Please
refer to “Wiring diagram” (P. 50) in this manual for further details.
”Check”
Press the
(Check) Key to check the wiring connections and show the result. * NG result may
be given, even if the wiring is correct, at the measurement site under bad power factors. Please refer to
“Wiring check” (P. 43) in this manual for further details.
*time(s)
*time(s)
