How to install batteries KEW6315
- 31 - KEW6315
How to install batteries:
Follow the steps below and install batteries.
1 Disconnect the power cord, voltage test leads and clamp sensors from the instrument, and
power off the instrument.
2 Loosen two Battery compartment cover-fixing screws and remove the Cover.
3 Take out all the batteries.
4 Insert six batteries (Size AA alkaline battery: LR6) in correct polarity.
5 Install the Battery compartment cover and fix it with two screws.
Power cord connection
The following should be checked before the connection.
DANGER
● Use only the Power cord supplied with this instrument.
● Connect the Power cord to a mains outlet. The mains supply voltage must not exceed AC240V.
(max rated voltage of supplied Power cord MODEL7169 : AC125V)
WARNING
● Confirm that the instrument is powered off, and then connect the Power cord.
● Connect the Power cord to the instrument first. The cord should be firmly connected.
● Never attempt to make measurement if any abnormal conditions are noted, such as a broken cover and
exposed metal parts.
● When the instrument is not in use, disconnect the Power cord from the outlet.
● When unplugging the cord from the mains socket outlet, do so by removing the plug first and not by
pulling the cord.

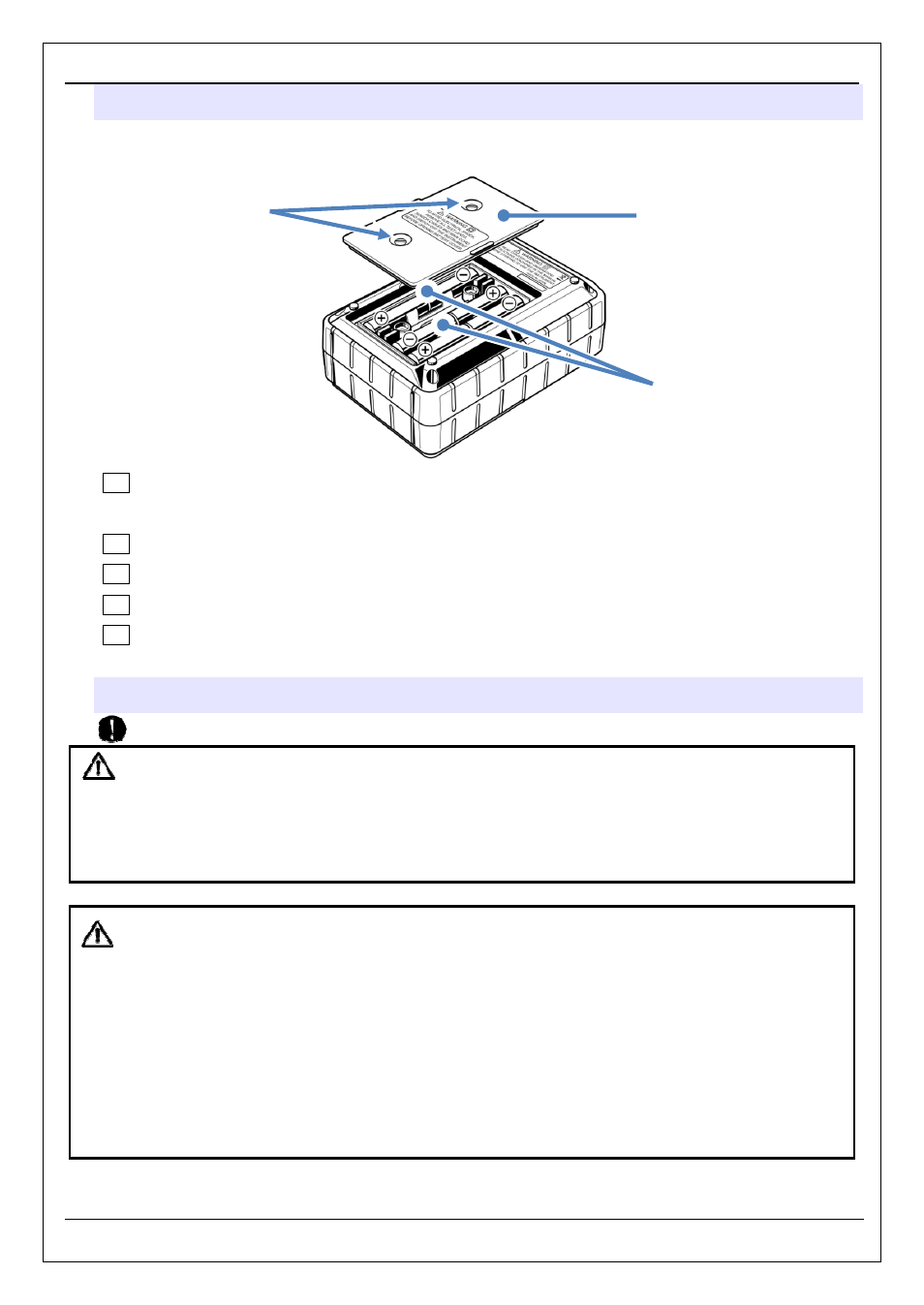

Battery compartment
cover
LR6: Size AA Alkaline battery
Screw
