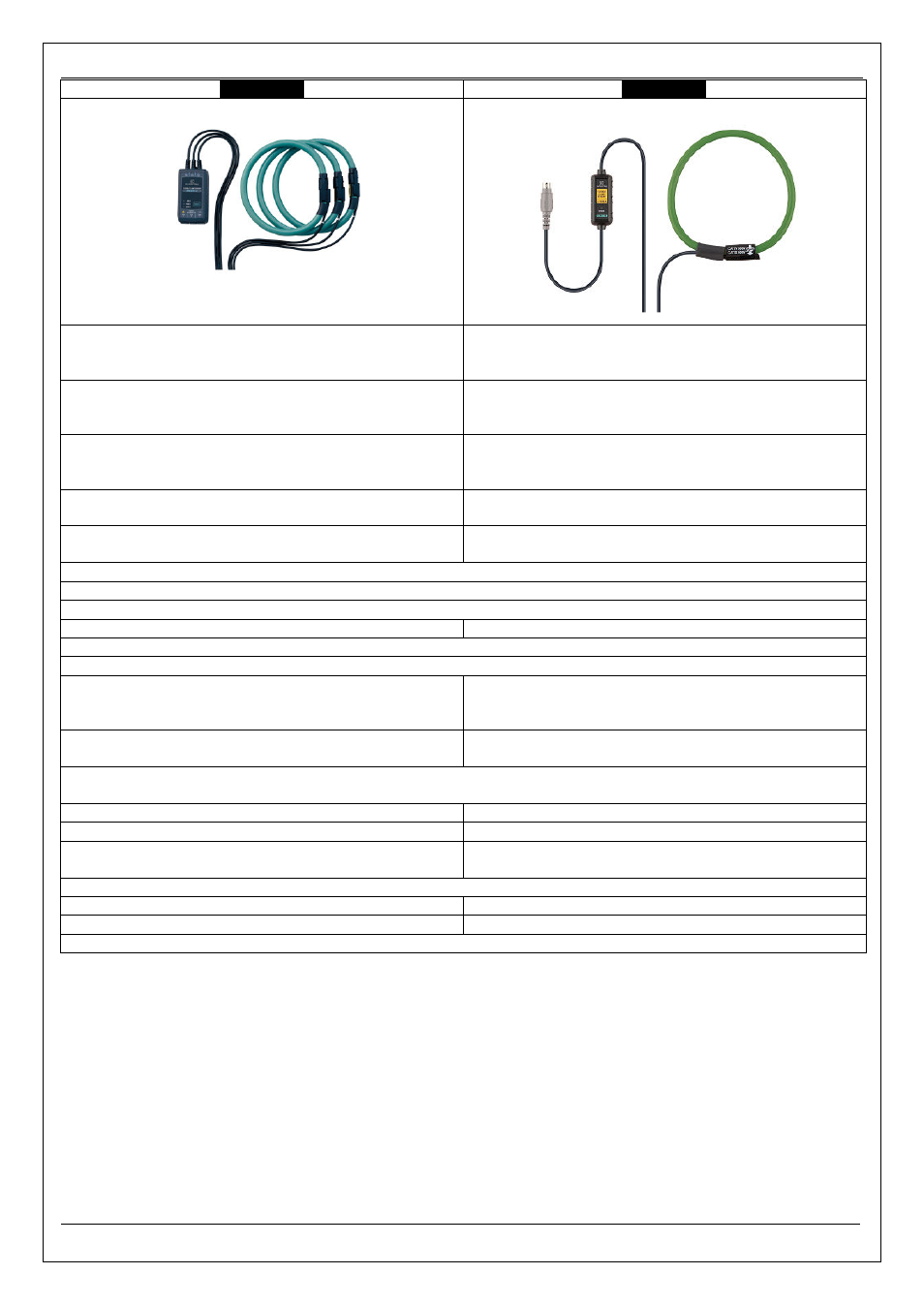

KEW6315 10.4 Specification of Clamp sensor
KEW6315 - 154 -
300A Range: AC 300 Arms( 424Apeak)
1000A Range: AC 1000 Arms(1414Apeak)
3000A Range: AC 3000 Arms(4243Apeak)
AC 1000 Arms(1850Apeak)
300A Range: AC0 - 500mV(AC500mV/AC 300A):1.67mV/A
1000A Range: AC0 - 500mV(AC500mV/AC1000A):0.5mV/A
3000A Range: AC0 - 500mV(AC500mV/AC3000A):0.167mV/A
AC0 - 500mV
(AC500mV/AC1000A):0.5mV/A
300A Range: 30 - 300Arms
1000A Range: 100 - 1000Arms
3000A Range: 300 - 3000Arms
AC0 - 1000Arms
±1.0%rdg (45 - 65Hz)
(at the center point))
±0.5%rdg±0.2mV (45 - 65Hz)
±1.5%rdg±0.4mV (40Hz - 1kHz)
within ±1.0°
(in each measuring range: 45 - 65Hz)
within ±2.0° (45 - 65Hz)
within ±3.0°(40 - 1kHz)
23±5ºC, relative humidity 85% or less (no condensation)
-10 - 50ºC, relative humidity 85% or less (no condensation)
-20 to 60ºC, relative humidity 85% or less (no condensation)
AC3600Arms (50/60Hz) AC1300Arms (50/60Hz)
Approx. 100Ω or less
In-door use, altitude 2000m or less
IEC 61010-1,IEC 61010-2-032
Meas. CAT. III (600V) Pollution degree 2
IEC61326
IEC 61010-1,IEC 61010-2-032
Meas. CAT. III (600V)/CAT.IV (300V) Pollution degree 2
IEC61326
AC5350V/5 sec
Between circuit – sensor
AC5160V/5 sec
Between circuit – sensor
50MΩ or more/ 1000V
Between circuit – sensor
Approx. ø150mm (max) Approx. ø110mm (max.)
111(L)×61(W)×43(D)mm (protrusions are not included) 65(L)×25(W)×22(D)mm
Sensor part: Approx. 2m
Output cable: Approx. 1m
Sensor part: Approx. 2.7m
Output cable: Approx.0.2m
MINI DIN 6PIN
8129-1: Approx.410g/8129-2: Approx.680g/8129-3: Approx.950g Approx.170g
Instruction manual, Output cable(M-7199), Carrying case Instruction manual, Cable marker, Carrying case
-
