KYORITSU 6315 Instruction Manual User Manual
Page 58
KEW6315
Settings of current measurement
KEW6315
- 56 -

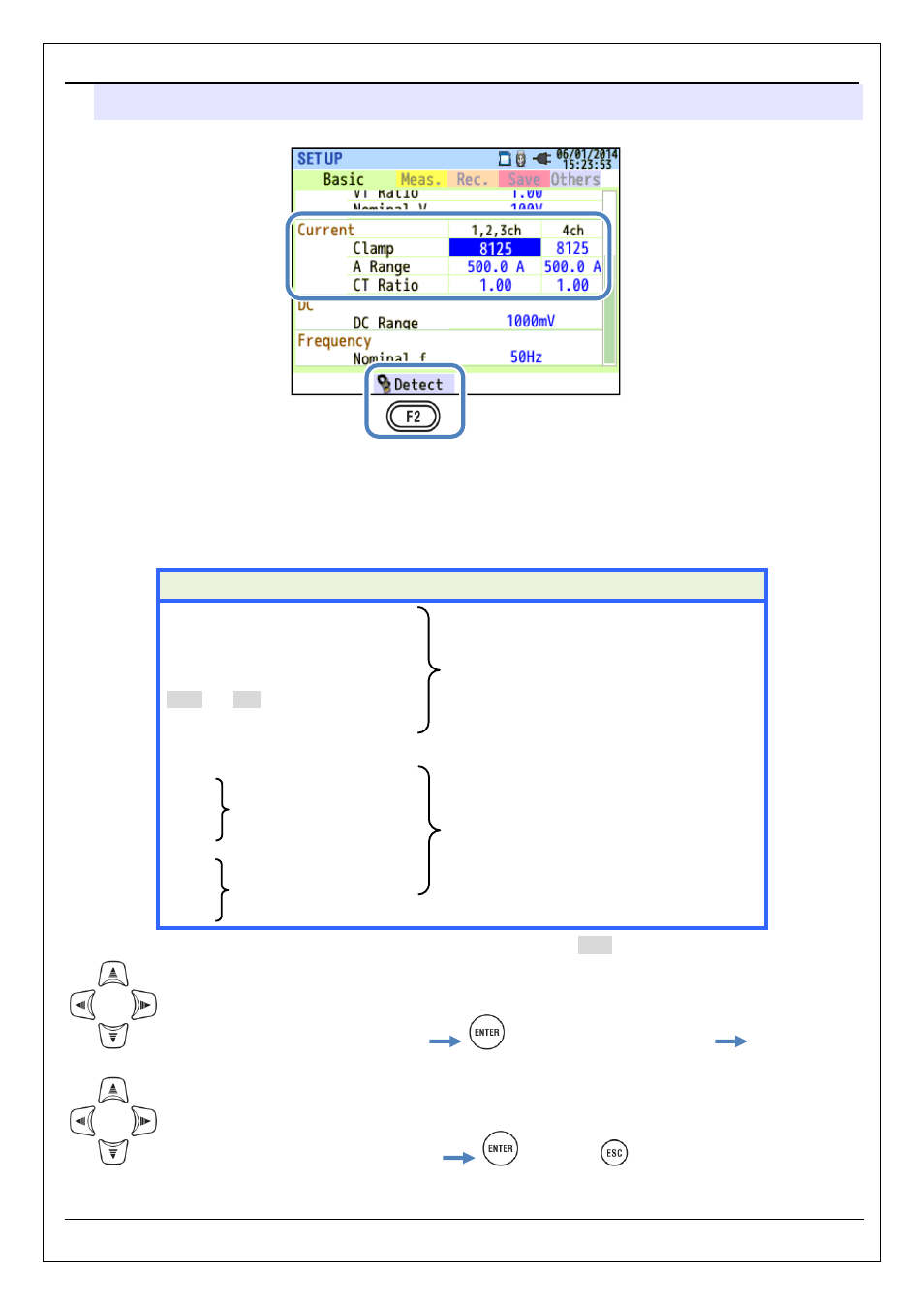

Settings of current measurement
“Clamp” : Clamp sensors for current measurement
Select the model names of the connected sensors. If an optional sensor is used and set for “+Clamp”,
an exceptional sensor can be set for 4ch. The rated current and the max conductor size are displayed
in a pop-up while opening the list of sensor model names.
Selection
8128:5/ 50A/ AUTO
8127:10/ 100A/ AUTO
8126:20/ 200A/ AUTO
8125:50/ 500A/ AUTO
8124/ 8130:100/ 1000A/ AUTO
8129:300/ 1000/ 3000A
8141:
8142:
500mA/ AUTO
8143:
8146:
8147:
1/ 10A/ AUTO
8148:
* Default setting is highlighted in gray.
Move the blue highlight to “Clamp”.
Show the pull-down menu.
Select the model name of the sensor.
Confirm.
Cancel.
Clamp sensors for power measurement
Clamp sensors for leakage current measurement
