Page 66
KEW6315
Settings for Harmonic analysis
KEW6315
- 64 -

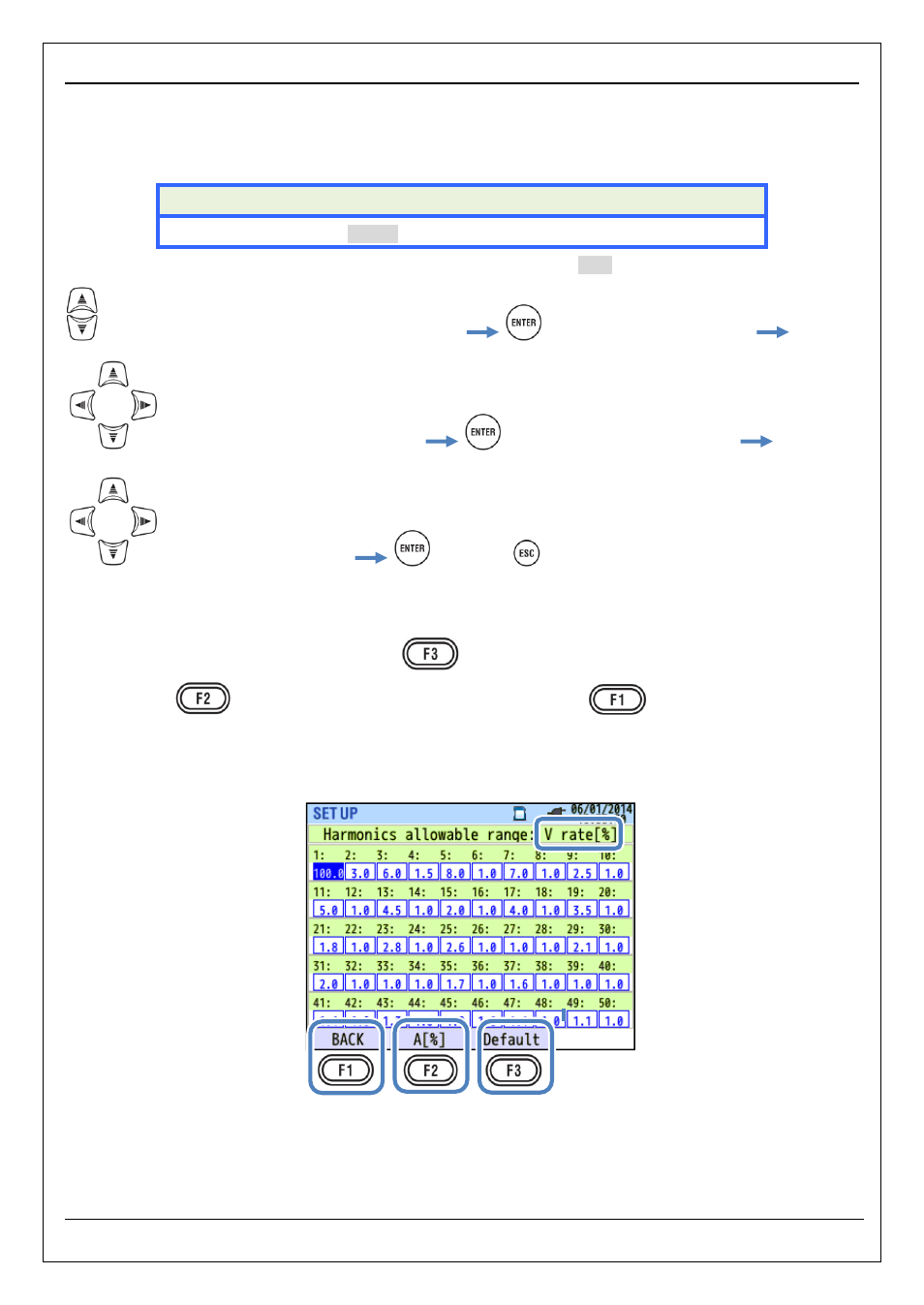

”Edit allowable range”
Set the EMC allowable range (rate of content) for harmonics per order. The edited ranges are displayed
as bar graph on the graph of harmonics.
Selection
Default/ can be customized (V/ A)
* Default setting is highlighted in gray.
Move the blue highlight to “Edit allowable range”.
Show the list of the ranges.
Select any desired harmonic order.
Show the value entry window.*
Set the allowable values.
Confirm.
Cancel.
The values in each box by default are complied with the international EMC standard IEC61000-4-7:
Industrial environment Class 3. Press the
key (Default) to restore the edited values to default.
Press the
key (A/V [%]) to switch current and voltage. The
key is to return to
the Measurement setting screen.
* A pop-up appears and show the effective range.
