KEW6315 8.4 Getting power from measured lines
KEW6315 - 128 -
8.4 Getting power from measured lines
If it is difficult to get power from an outlet, KEW6315 operates with power from the measured line by using
Power supply adapter MODEL8312 and voltage test leads.
DANGER
● When the instrument and the test lead are combined and used together, whichever lower category
either of them belongs to will be applied. Confirm that the measured voltage rating of the test lead is
not exceeded.
● Do not connect a Voltage test lead unless required for measuring the desired parameters.
● Connect Voltage test leads to the instrument first, and only then connect them to the measured line.
● Never disconnect the voltage test leads from the connectors of the instrument during a
measurement (while the instrument is energized).
● Connect to the downstream side of a circuit breaker since a current capacity at the upstream
side is large.
WARNING
● Power off the instrument before connecting the adapter and test leads.
● Connect Voltage test lead to the instrument first. It should be firmly connected.
● Never attempt to make measurement if any abnormal conditions are noted, such as a broken cover
and exposed metal parts.

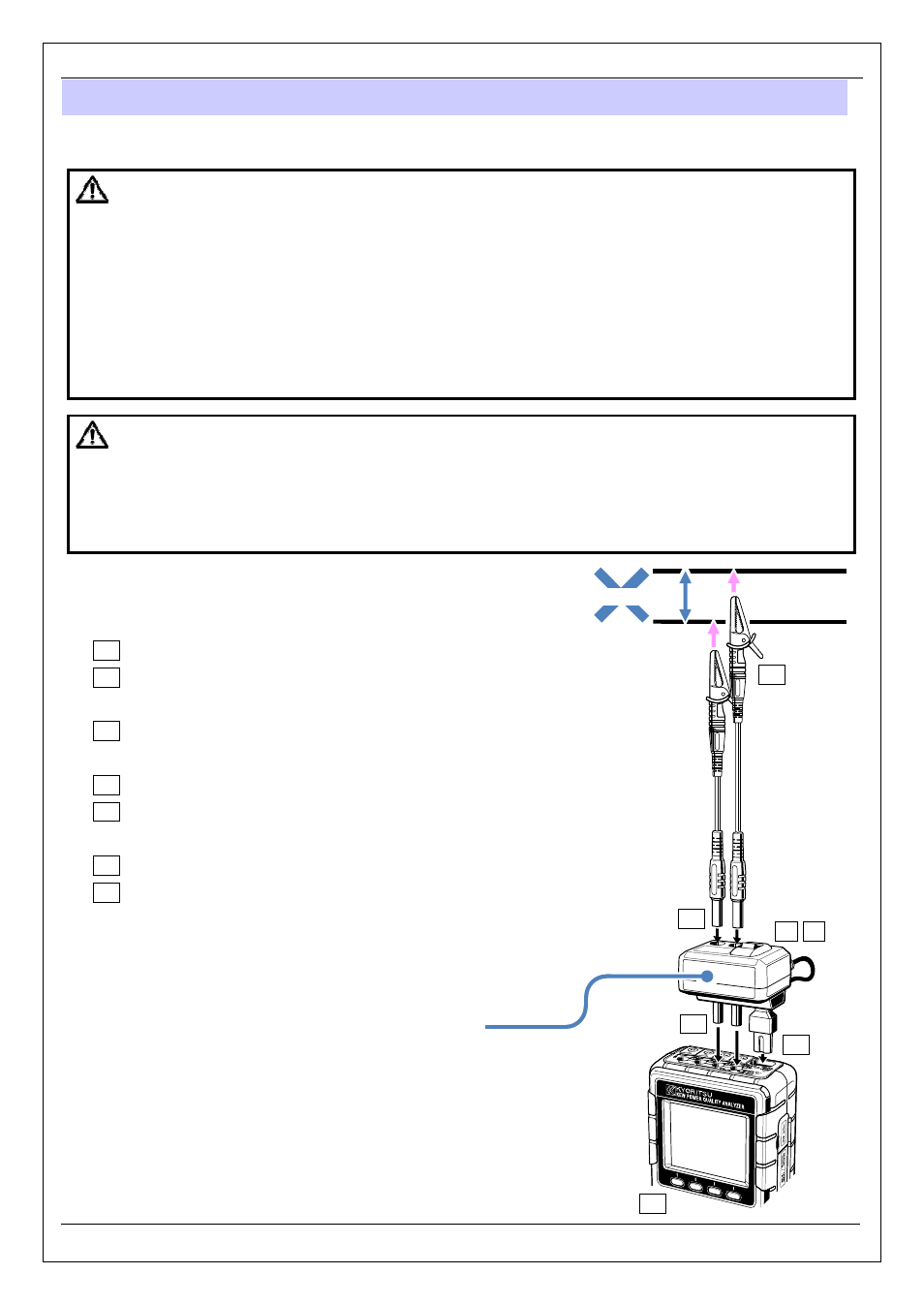

Connect the Adapter according to the following procedure.
1 Confirm that the Power switch on MODEL8312 is “OFF”.
2 Connect the Plug of MODEL8312 to VN and V1 terminals on
KEW6315.
3 Connect the Power Plug of MODEL8312 to the Power connector
On KEW6315.
4 Connect the Voltage test leads to VN and V1 terminals of the Adapter.
5 Connect the Alligator clips of the voltage test leads to the circuit
under test.
6 Power on MODEL8312.
7 Start KEW6315.
* Reversed procedure is applied to remove the Adapter from KEW6315.
Please refer to the instruction manual for MODEL8312 for further details.
MODEL8312
Measurement CAT.III 150V CAT.II 240V
Fuse rating : AC500mA/ 600V,
Fast acting, Φ6.3 x 32mm
5
240V or more
1 / 6
2
3
4
7
