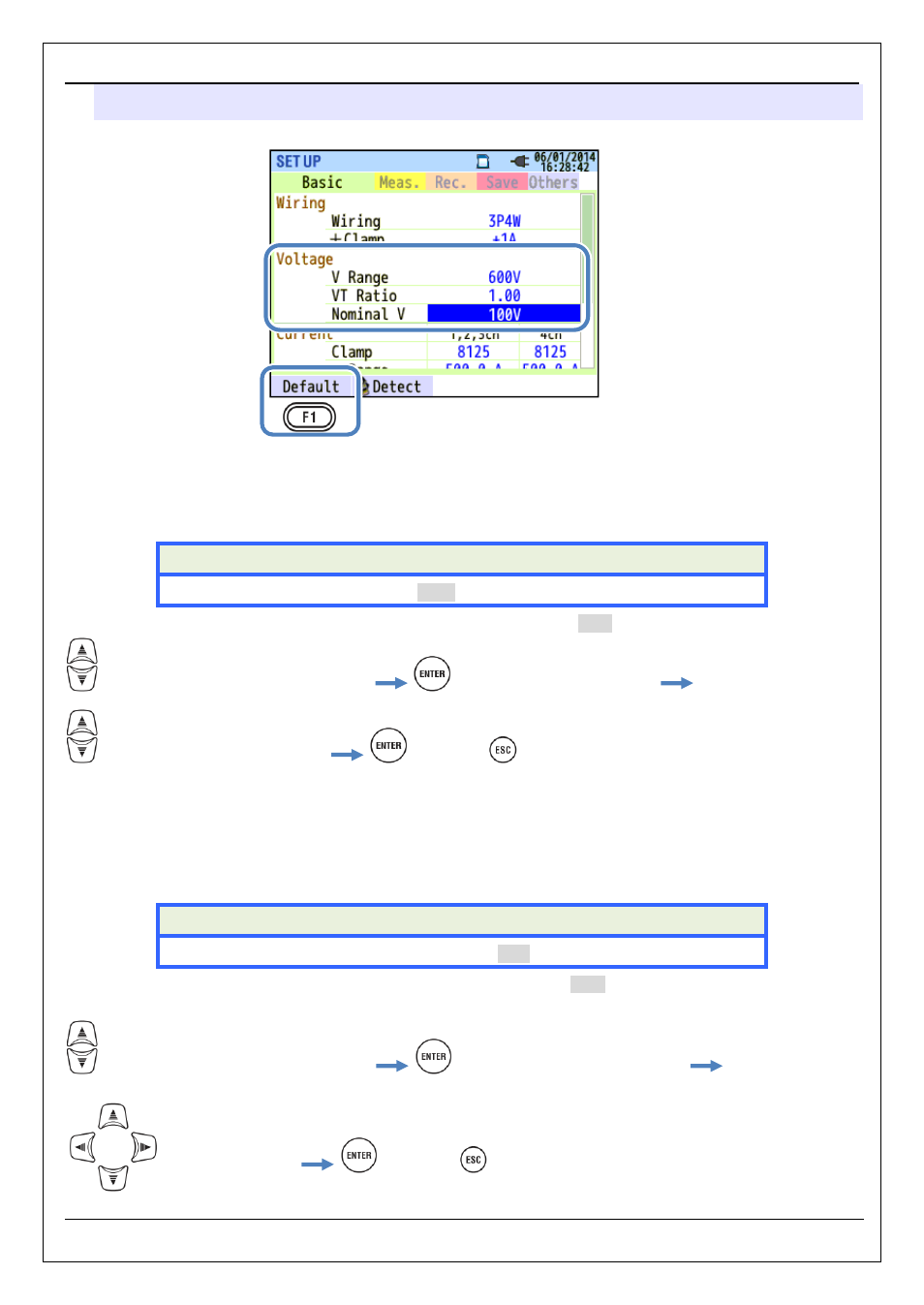

Settings of voltage measurement
KEW6315
- 53 -
KEW6315
Settings of voltage measurement
“Voltage range”
Choose a desired voltage range.
* For measurements according to IEC61000-4-30 Class S, set the range to “600V”.
Selection
600V/1000V
* Default setting is highlighted in gray.
Move the blue highlight to “V Range”.
Show the pull-down menu.
Select a proper voltage range.
Confirm.
Cancel.
”VT Ratio”
Set the proper VT ratio when VTs (transformer) are installed in the measured system. The selected VT ratio
will be reflected to all the values measured during any voltage measurements.
Selection
0.01 - 9999.99(1.00)
* Default value is highlighted in gray.
Move the blue highlight to “VT Ratio”.
Show the value entry window.*
Set the VT Ratio.
Confirm.
Cancel.
* A pop-up appears and shows the effective range.
