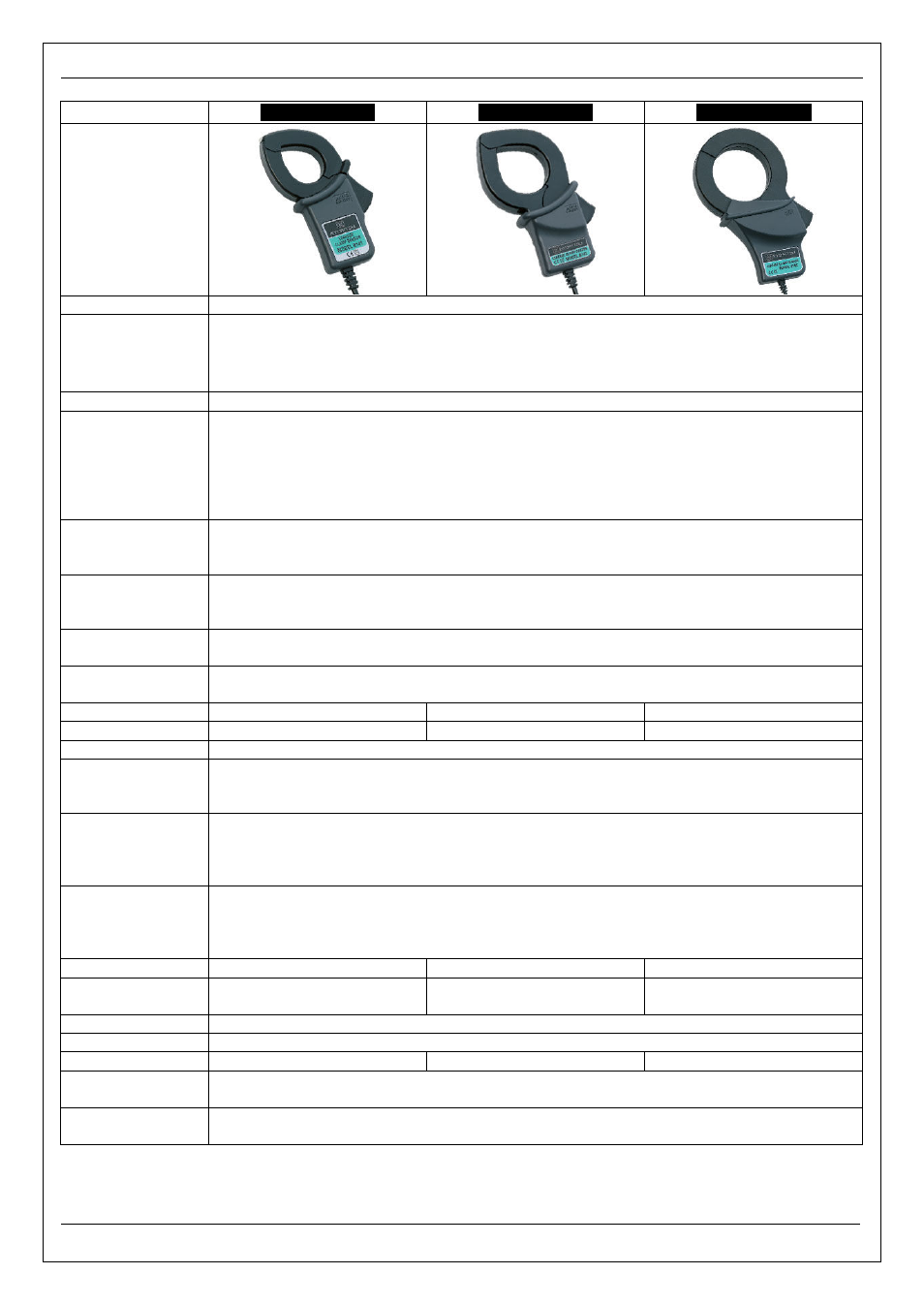

10.4 Specification of Clamp sensor KEW6315
- 155 - KEW6315
Rated current AC1000mArms
Output voltage AC0 - 100mV(AC100mV/AC1000mA)
Measuring range AC0 - 1000mArms
Accuracy
(sine wave input)
±1.0%rdg±0.1mV (50/60Hz)
±2.0%rdg±0.1mV (40Hz - 1kHz)
Phase
characteristics
-------------
Temp. & humidity
range (guaranteed
accuracy)
23±5ºC, relative humidity 85% or less (no condensation)
Operating temp.
range
0 - 50ºC, relative humidity 85% or less (no condensation)
Storage temp.
range
-20 to 60ºC, relative humidity 85% or less (no condensation)
Allowable input AC100Arms (50/60Hz) AC200Arms (50/60Hz) AC500Arms (50/60Hz)
Output impedance Approx. 180Ω Approx. 200Ω Approx. 120Ω
Location for use In-door use, altitude 2000m or less
Applicable
standards
IEC 61010-1,IEC 61010-2-032
Meas. CAT. III (300V), Pollution degree 2
IEC61326 (EMC standard)
Withstand voltage
AC3540V/5 sec
Between Jaws – Enclosure,
Jaws – Output terminal, and
Enclosure – Output terminal
Insulation
resistance
50MΩ or more/ 1000V
Between Jaws – Enclosure,
Jaws – Output terminal, and
Enclosure – Output terminal
Max conductor size Approx. ø24mm (max) Approx. ø40mm (max) Approx. ø68mm (max)
Dimension
100(L)×60(W)×26(D)mm
(protrusions are not included)
128(L)×81(W)×36(D)mm
(protrusions are not included)
186(L)×129(W)×53(D)mm
(protrusions are not included)
Cable length Approx. 2m
Output terminal MINI DIN 6PIN
Weight Approx. 150g Approx. 240g Approx. 490g
Accessory
Instruction manual
Carrying case
Optional parts
7146 (Banana ø 4 Adjuster plug)
7185(Extension cable)
