KEW6315
Threshold setting for Power quality (Event)
KEW6315
- 66 -
“Transient”: Over-voltage (Impulse)
Set an instantaneous voltage value as a threshold for the transient event. The following selection range
varies depending on the selected VT ratio.
Selection
±50 to ±2200Vpeak against the nominal voltage (300%)
* Default setting is highlighted in gray.
Move the blue highlight to “Transient”.
Show the value entry window.*
Set the voltage value.
Confirm.
Cancel.

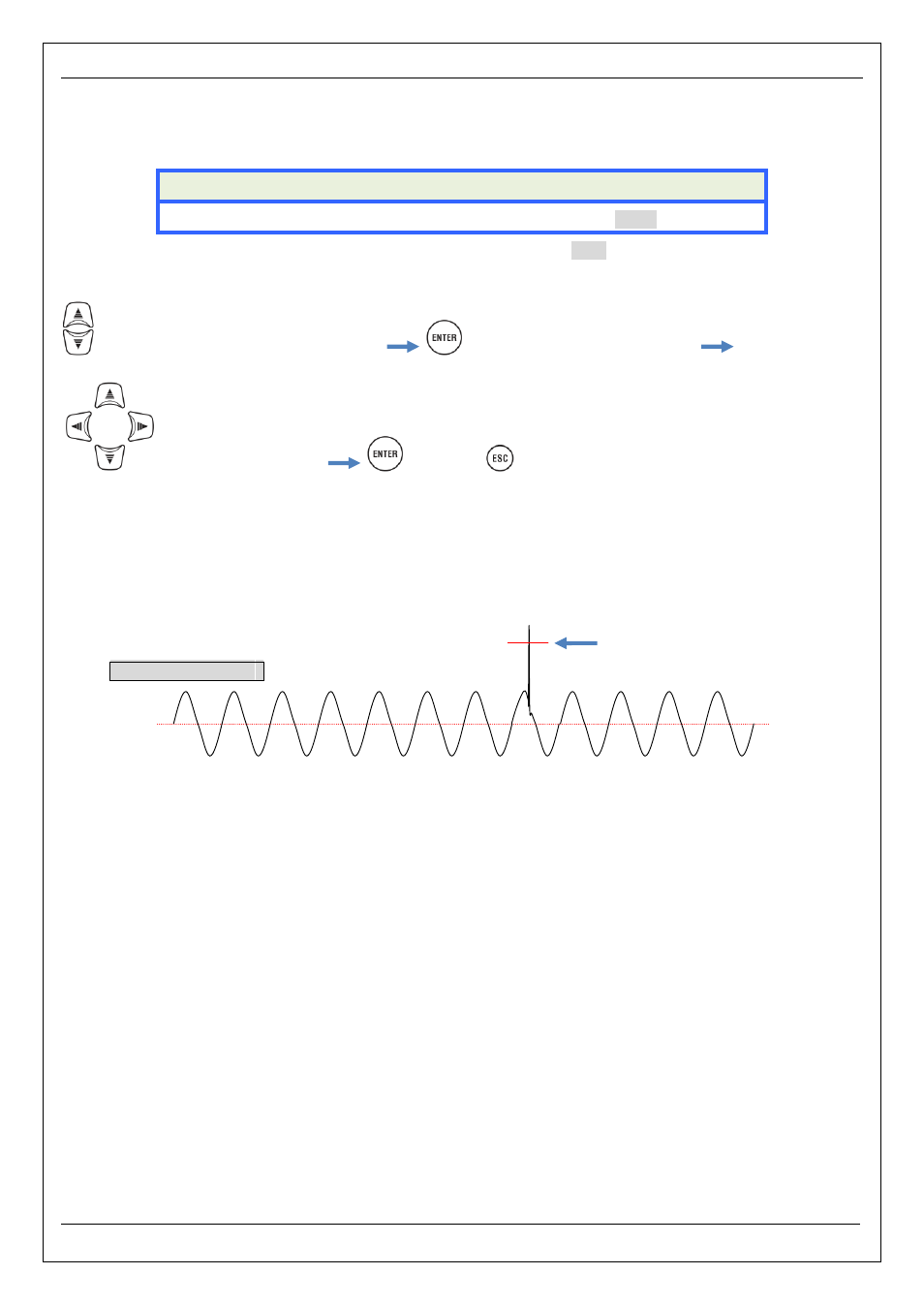

Example of Transient detection:
The details are described in “Displaying recorded events” (P. 116).
Threshold value (voltage value)
Voltage waveform
* A pop-up appears and show the effective range.
