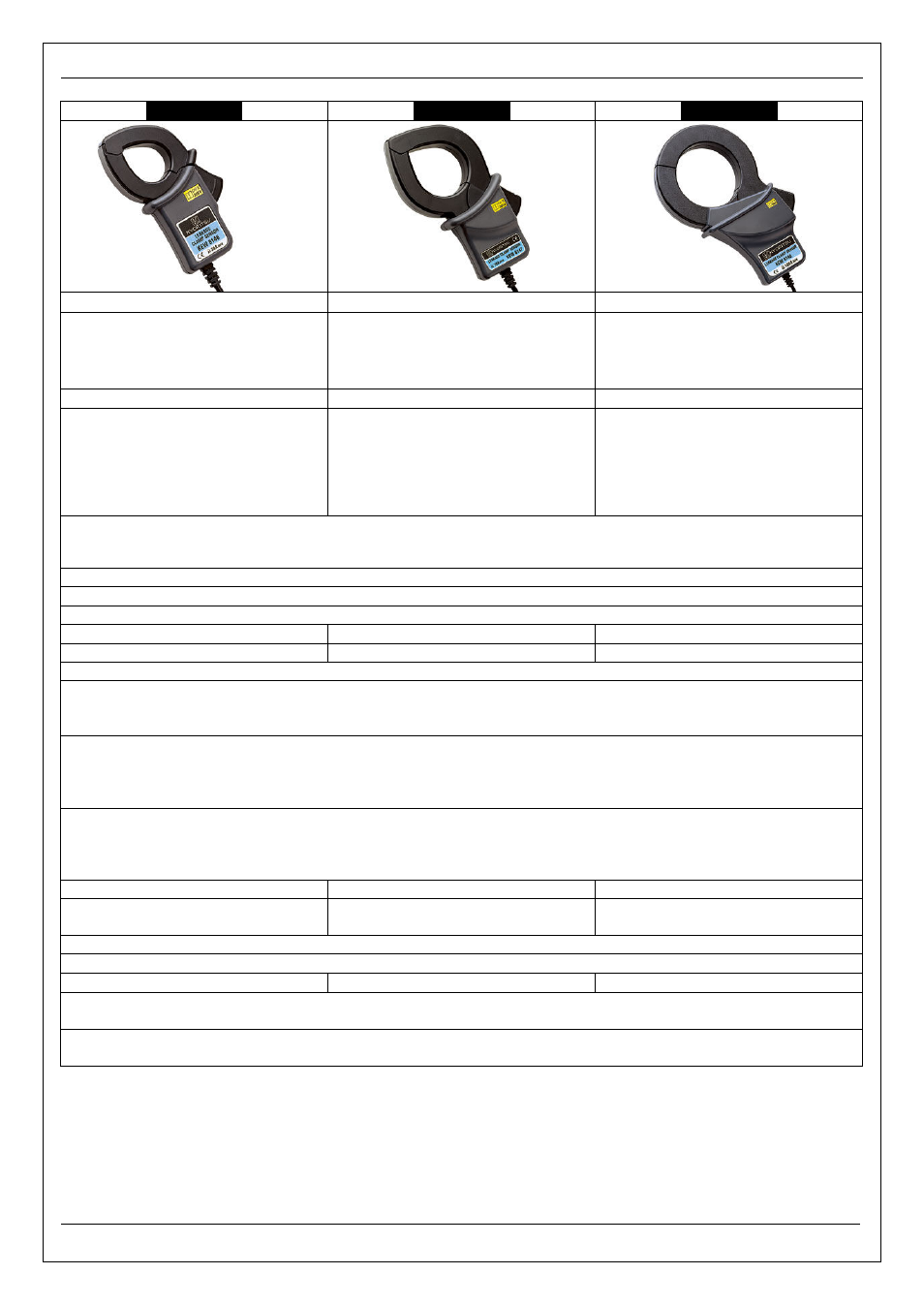

KEW6315 10.4 Specification of Clamp sensor
KEW6315 - 156 -
AC 30Arms (42.4Apeak) AC 70Arms (99.0Apeak) AC 100Arms (141.4Apeak)
AC0 - 1500mV(AC50mV/A) AC0 - 3500mV(AC50mV/A) AC0 - 5000mV(AC50mV/A)
AC0 - 30Arms AC0 - 70Arms AC0 - 100Arms
0 - 15A
±1.0%rdg±0.1mV (50/60Hz)
±2.0%rdg±0.2mV (40Hz - 1kHz)
15 - 30A
±5.0%rdg (50/60Hz)
±10.0%rdg (45 - 1kHz)
0 - 40A
±1.0%rdg±0.1mV (50/60Hz)
±2.0%rdg±0.2mV (40Hz - 1kHz)
40 - 70A
±5.0%rdg (50/60Hz)
±10.0%rdg (45 - 1kHz)
0 - 80A
±1.0%rdg±0.1mV (50/60Hz)
±2.0%rdg±0.2mV (40Hz - 1kHz)
80 - 100A
±5.0%rdg (50/60Hz)
±10.0%rdg (45 - 1kHz)
-------------
23±5ºC, relative humidity 85% or less (no condensation)
0 - 50ºC, relative humidity 85% or less (no condensation)
-20 to 60ºC, relative humidity 85% or less (no condensation)
AC30Arms (50/60Hz) AC70Arms (50/60Hz) AC100Arms (50/60Hz)
Approx. 90Ω Approx. 100Ω Approx. 60Ω
In-door use, altitude 2000m or less
IEC 61010-1,IEC 61010-2-032
Meas. CAT. III (300V) Pollution degree 2
IEC61326
AC3540V/5 sec
Between Jaws – Enclosure,
Enclosure – Output terminal, and
Jaws – Output terminal
50MΩ or more/ 1000V
Between Jaws – Enclosure, Enclosure – Output terminal, and Jaws – Output terminal
Approx. ø24mm (max) Approx. ø40mm (max) Approx. ø68mm (max)
100(L)×60(W)×26(D)mm 128(L)×81(W)×36(D)mm 186(L)×129(W)×53(D)mm
Approx. 2m
MINI DIN 6PIN
Approx. 150g Approx. 240g Approx. 510g
Instruction manual
Cable marker
7146 (Banana ø 4 Adjuster plug)
7185(Extension cable)
