Displaying trend graph of Pst, 1min
KEW6315
- 121 -
KEW6315
Displaying trend graph of Pst, 1min

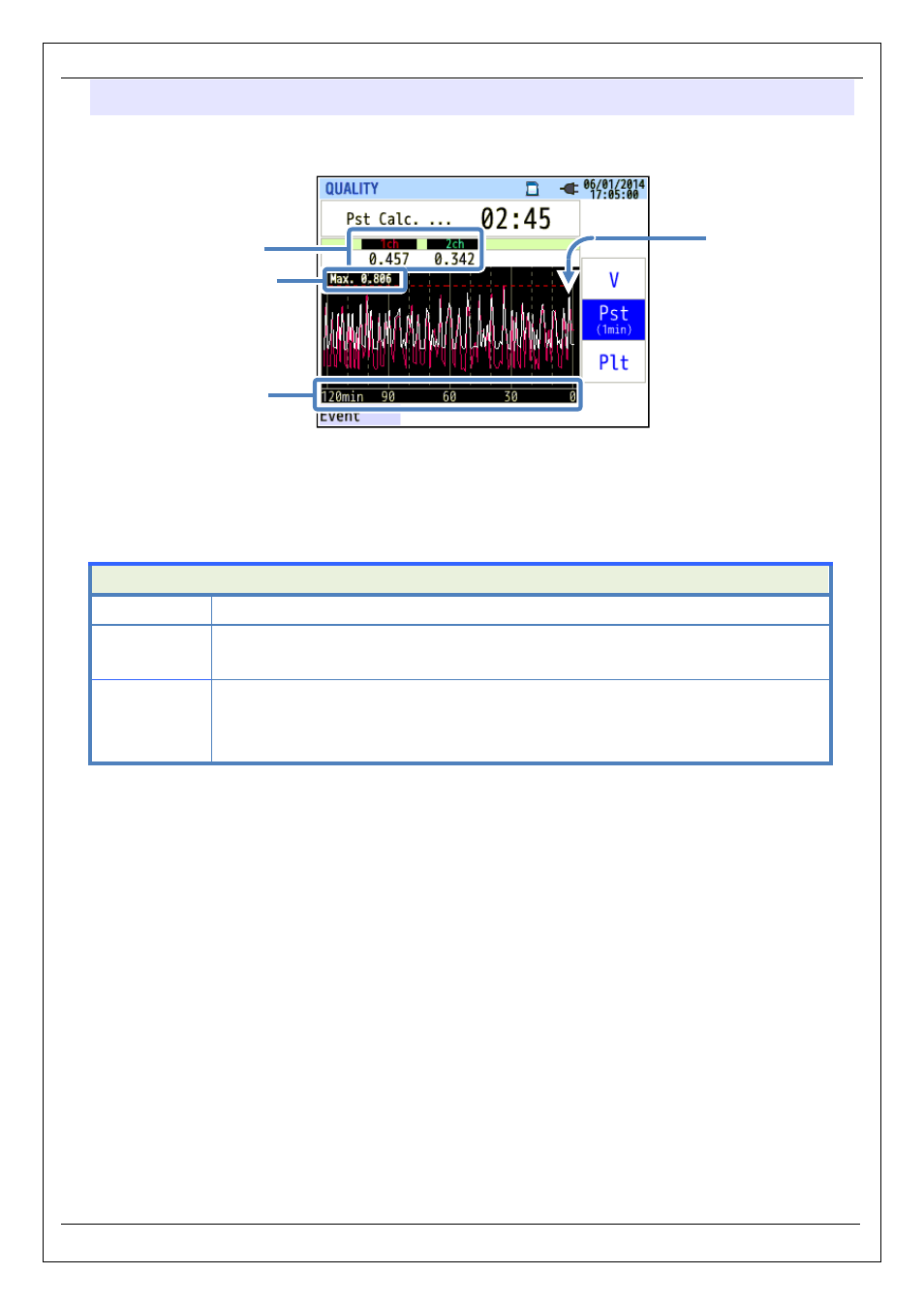

The “Pst, 1min” measured in the recent 120 min is displayed on the trend graph.
Items displayed on the LCD
Pst,1min
The latest Pst (1 min)
Max value
Max “Pst, 1min” recorded through the measurement. It is refreshed every time when
the measured values exceed the previous max values.
Elapsed time
The latest measured value is displayed at the right end (on 0 min tick), and it shifts
to left as time goes by. Changes in the recent 120 min can be displayed on one
screen.
Max values
Elapsed time
Latest
Pst,1min
Pst,1min
