List display of the measured values KEW6315
- 93 - KEW6315
*1
W screen: Displays of V and VL can be “customized” when “3P4W” is selected.
*2
W screen: “An” is displayed only when “3P4W” is selected.
*3
W screen: Displays of PA and C can be “customized” with the (customize) Key. Line voltages
are converted into phase voltages to determine currents and phase angles for “PA” of 3P3W3A.

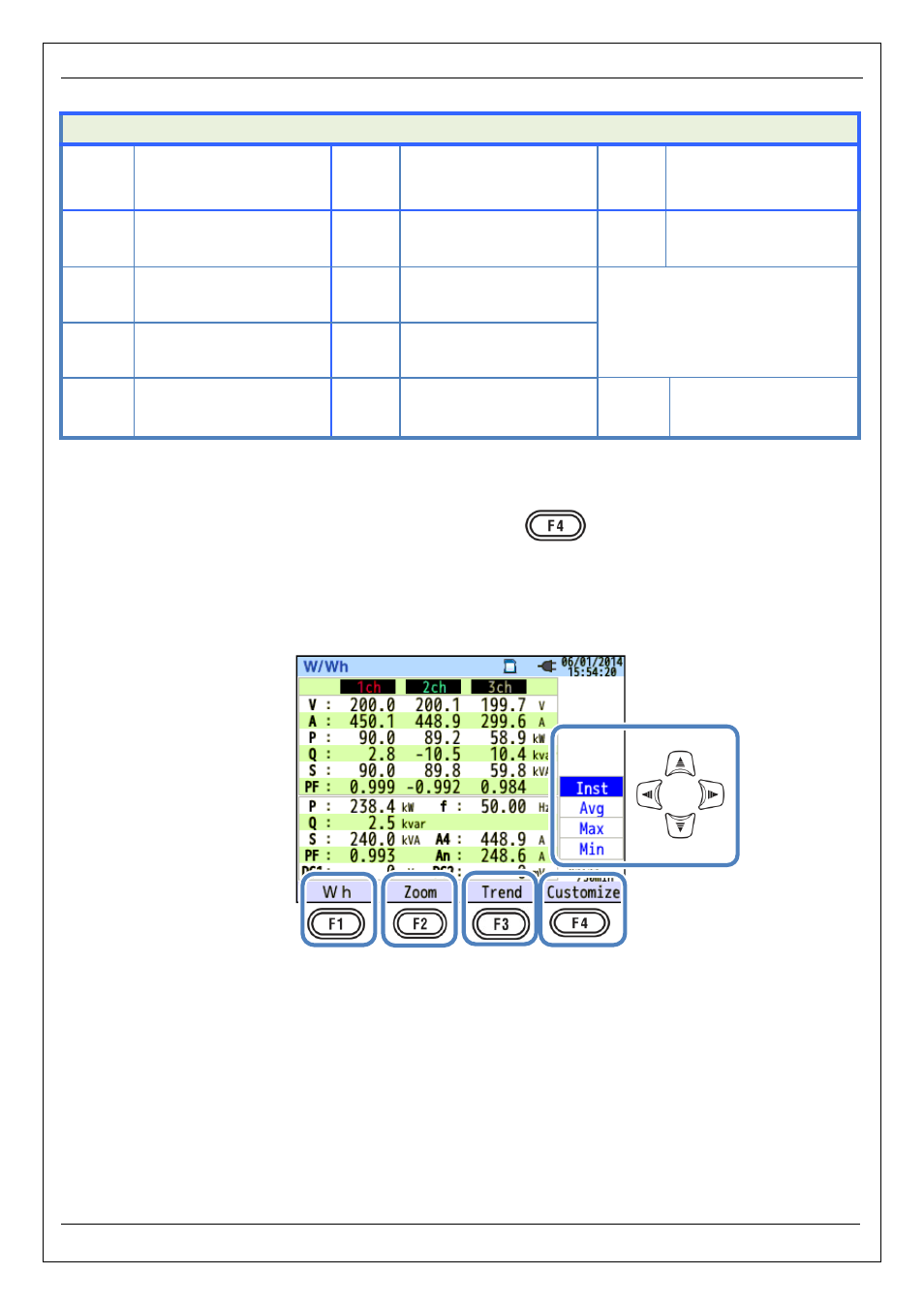

e.g.) Instantaneous values measured under 1P3W-2 (2 systems)
Symbol displayed on the LCD
V
*1
Phase voltage VL
*1
Line voltage A Current
P
Active
power + consumption
Q
Reactive
power
+ Lagging
S Apparent power
- regenerating - leading
PF
Power
factor
+ Lagging
f Frequency
- leading
DC1
Analog input
Voltage at 1ch
DC2
Analog input
Voltage at 2ch
An*
2
Neutral current PA
*3
V/A Phase
difference
+ Lagging
C * 3
Capacitance calculation
－ leading
