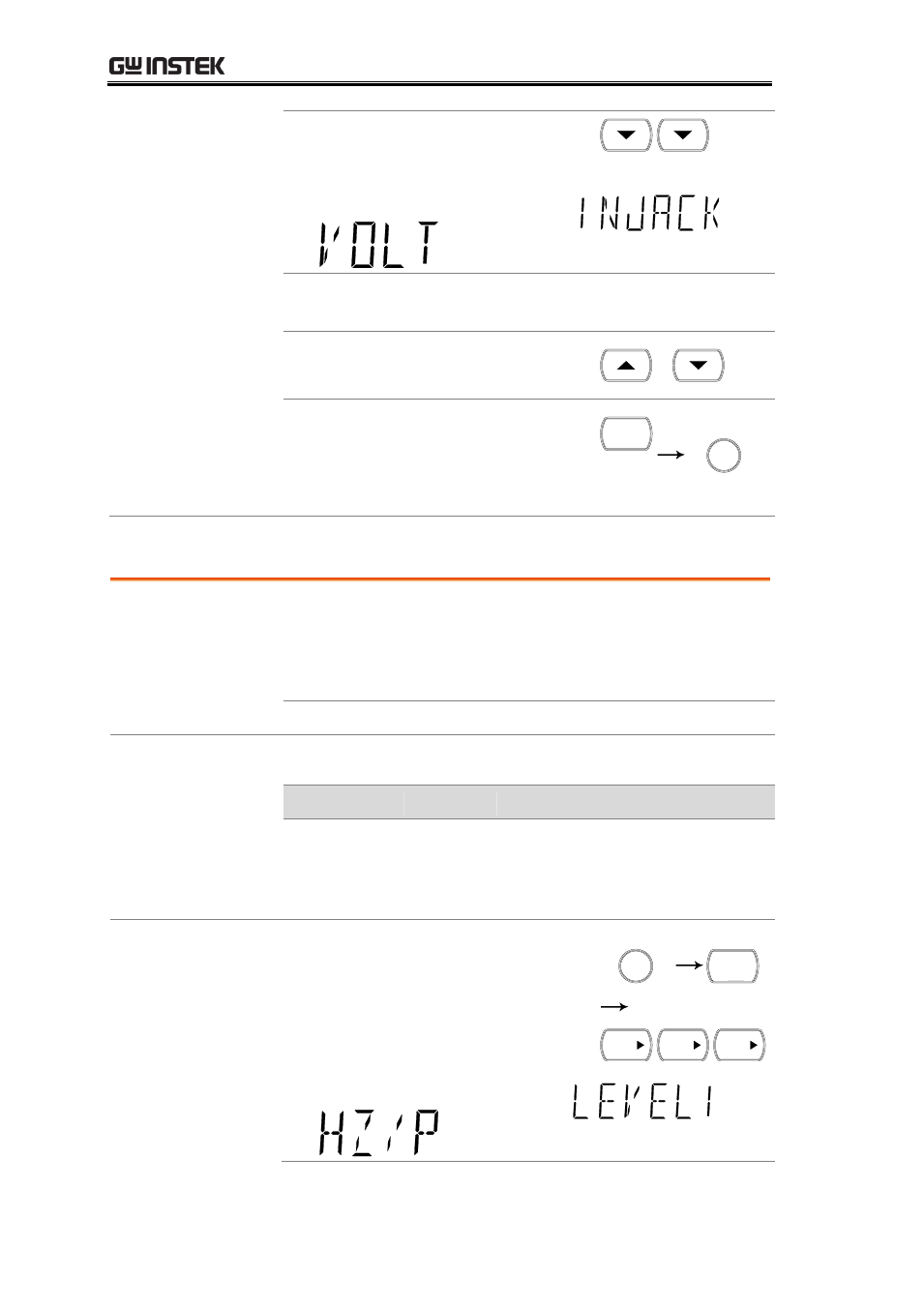

GDM-8261 User Manual

92

2. Press the Down key twice. The

INJACK setting appears.

1st display

Indicates which input port is assigned
as the input port.

3. Select the input using the

Up/Down key.

4. Press the Enter key to confirm

your selection. Press the Exit

key to go back to the default
display.

AUTO

ENTER

/ EXIT

SHIFT

Gate Time Setting

Background

The gate time settings determine the accuracy of the
frequency and period measurements. The gate time

settings are the equivalent to the Fast, Medium and Slow

rate settings.

Setting

10ms, 100ms, 1000ms

Rate Settings

The gate time settings are analogous to the rate settings.

Function

Digits

Rate

Readings/s Gate time

Frequency,
Period

6 ½

Slow

1

1000ms

5 ½

Med.

10

100ms

4 ½

Fast

100

10ms

Panel operation

1. Press the Shift key followed by

the 2nd (Menu) key. Press the

right key three times. The Hz/P
menu appears.

/ EXIT

SHIFT

2ND

MENU

TRIG

TRIG

TRIG
