REMOTE CONTROL
129
Configure Interface
Overview
Interface type USB Device USB 1.1 or 2.0, TypeA, female
connector.
RS-232C D-sub 9 pin, male connector. Baud rate:
230400/115200/57600/38400/19200/
9600. Data bits: 8, Parity: none,
Stop bits: 1, Flow control: none.
GPIB (optional) 24 Pin female GPIB port
LAN (optional) 10BaseT/100BaseTx
Return to Local
control mode In order to switch back to the Local
control mode (front panel
operation), press the LOCAL key.
2ND
LOCAL

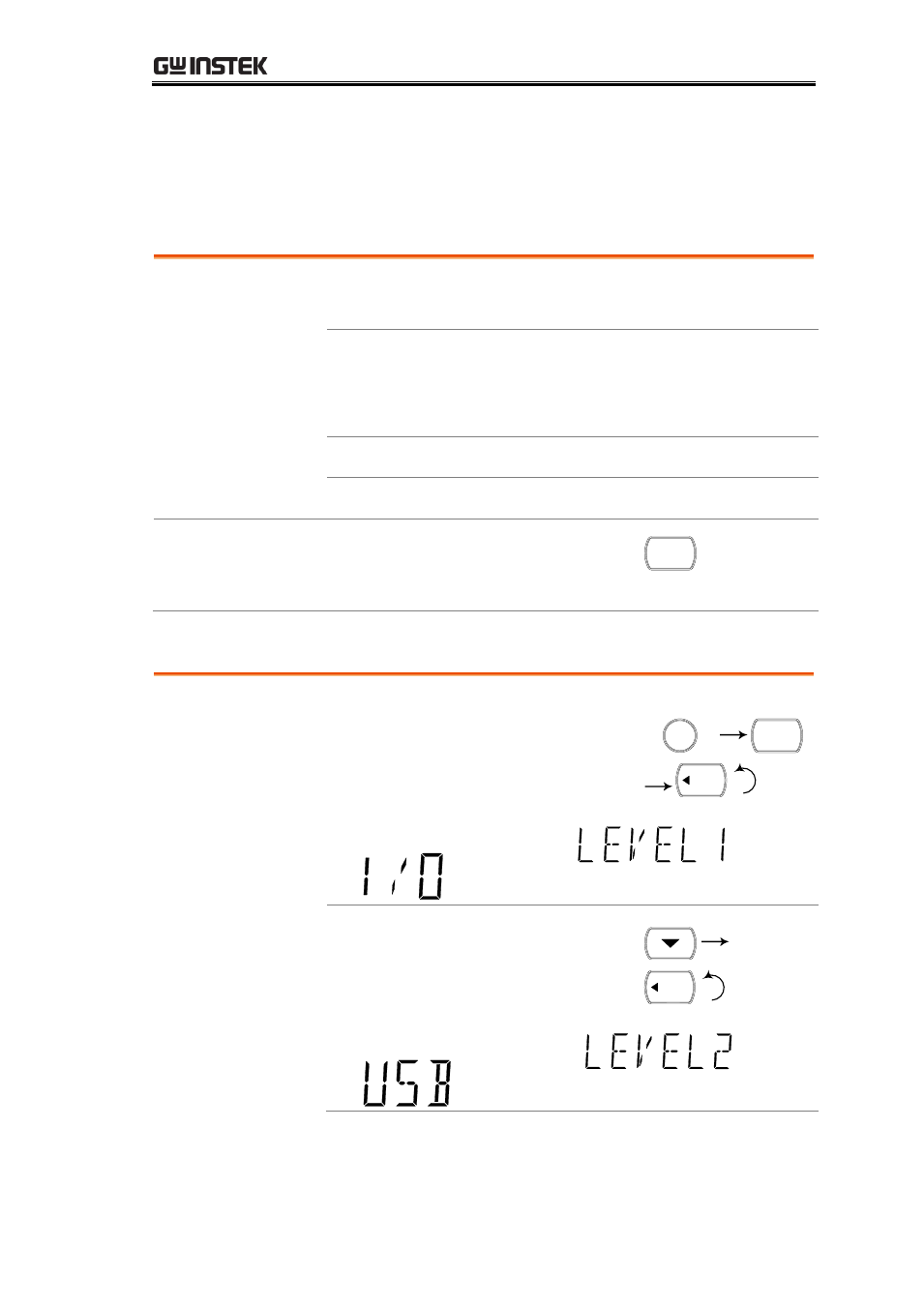

Configure USB Interface
USB device port
configuration 1. Press the Shift key, the 2nd
(Menu) key, and then the left key
repeatedly until the I/O
configuration menu appears.
/ EXIT SHIFT
2ND
MENU
HOLD
2. Press the Down key and the left
key repeatedly until the USB
selection display appears.
HOLD
