GDM-8261 User Manual

28

Select Voltage Range

Auto range

To turn the automatic range selection

On/Off, press the AUTO key.

AUTO

Manual range

Press the Up or the Down key to select
the range. The AUTO indicator turns

Off automatically. If the appropriate

range is unknown, select the highest

range.

Selection list

Range

Resolution Full scale @ slow rate

100mV

0.1µV

119.9999mV

1V

1µV

1.199999V

10V

10µV

11.99999V

100V

100µV

119.9999V

750V (AC)

1mV

750.000V

1000V (DC)

1mV

1000.000V

Note:

For more detailed parameters, see the
specifications on page 212.

DC Voltage
Range Note:

DC voltages with AC components cannot be accurately
measured if the DC+AC component exceed the ADC

dynamic range for the selected DC range. Any voltage

exceeding the ADC dynamic range will be clipped at the

upper/lower range limit. Under these conditions the range
that is chosen with the Auto range function may be too

small.

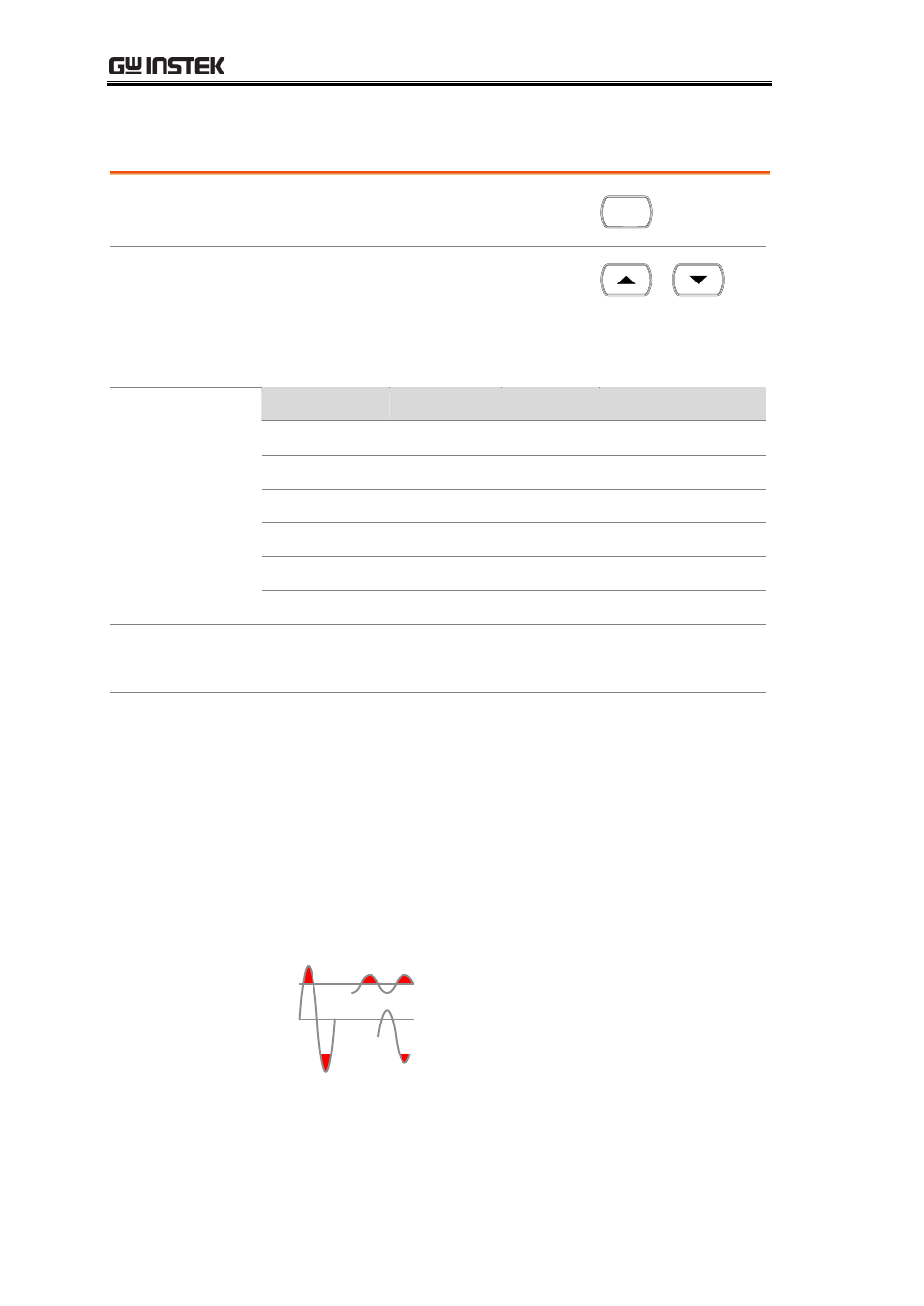

Example:

A

+2V

0V

-2V

C

D

B

E

DC 1V Range

A,B: Input exceeds the ADC
dynamic range.
C,D: The DCV offset causes
the input to exceed the upper
ADC dynamic range.
E: The DCV offset causes the
input to exceed the lower
ADC dynamic range.
