ADVANCED MEASUREMENT

65

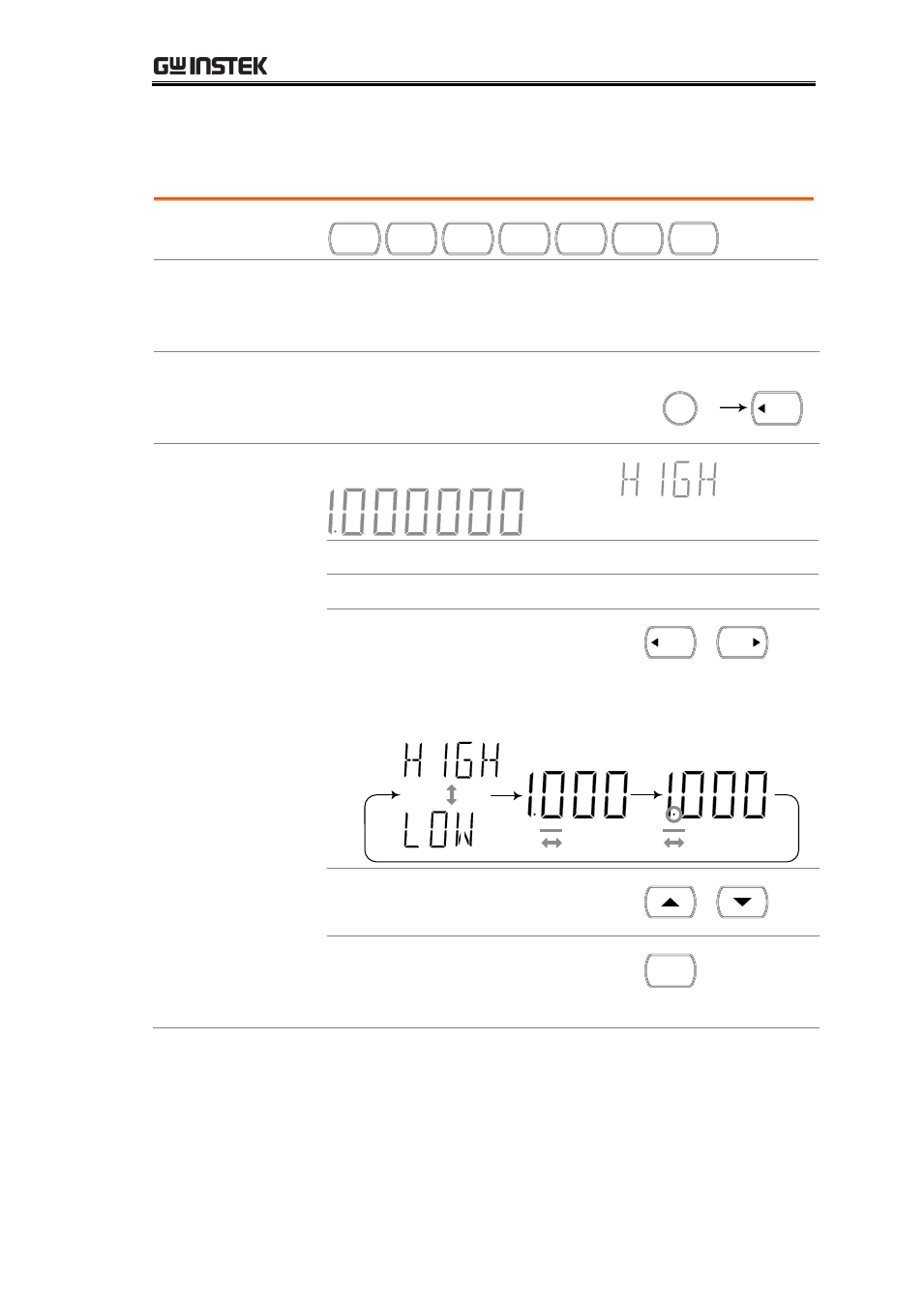

Compare Measurement

Applicable to

ACV

DCV

ACI

DCI

2/4W

Hz/P

TEMP

Background

Compare measurement checks and updates if the

measurement data stays between the upper (high) and

lower (low) limit specified.

1. Activate
Compare
measurement

Press the Shift key, then the Hold

(Comp) key.

/ EXIT

SHIFT

HOLD

COMP

2. High limit
setting

V

1st display

Shows the high limit value

2nd display

Indicates high limit setting

1. Use the Left/Right key to move

the cursor (flashing point)

between high/low setting, digits,

and decimal point.

HOLD

TRIG

2. Change the parameter using the

Up/Down key.

3. Press the Enter key to confirm

editing and move to the low
limit setting.

AUTO

ENTER
