SYSTEM/DISPLAY CONFIGURATION

91

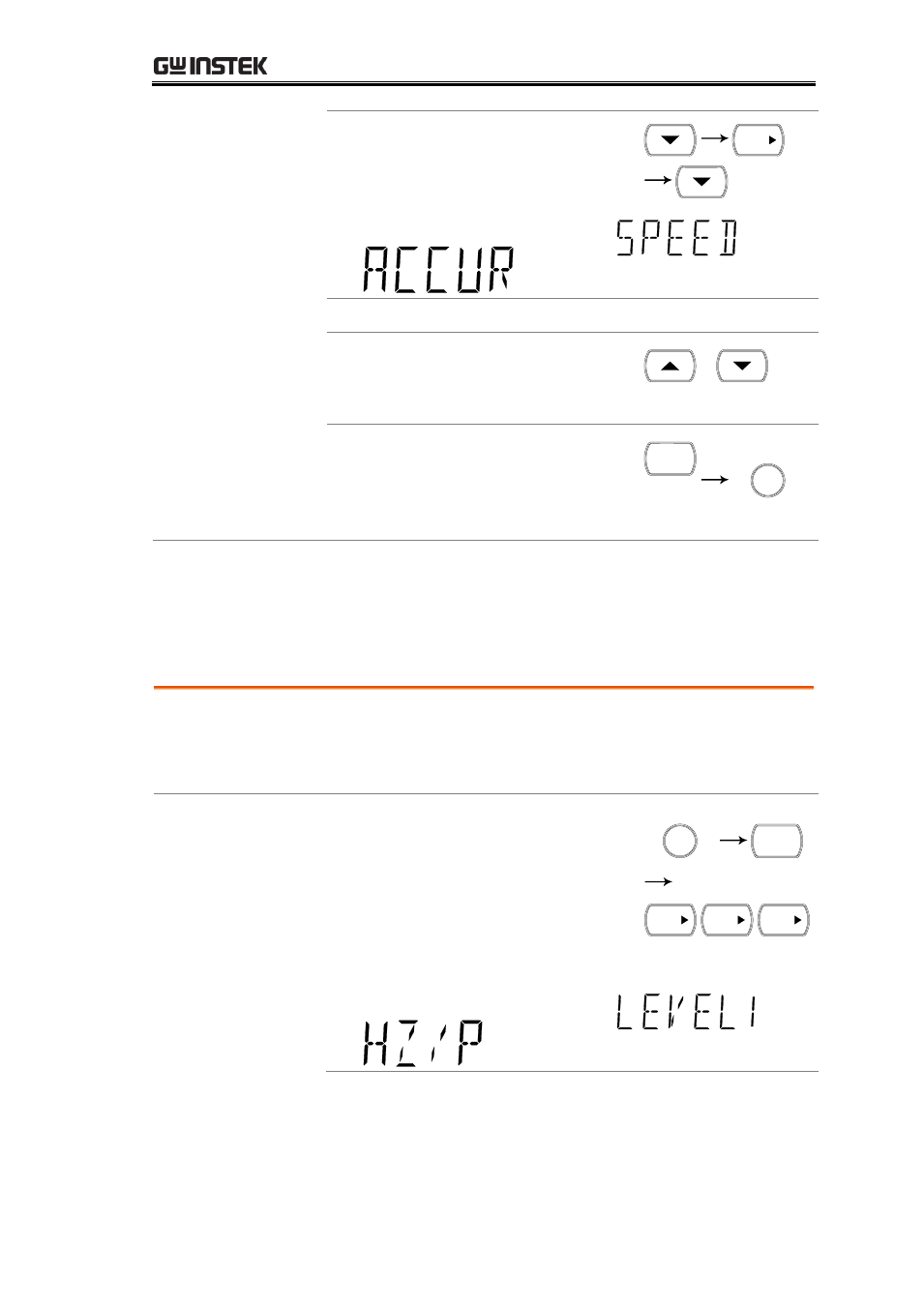

3. Press the Down key, the right

key and then the down key. The

Speed settings menu appears.

TRIG

1st display

Shows the Speed setting

4. Use the Up/Down keys to

select either ACCUR or

QUICK.

5. Press the Enter key to confirm

your selection. Press the Exit

key to go back to the default
display.

AUTO

ENTER

/ EXIT

SHIFT

Frequency / Period Settings

Input Port Selection

Background

The INJACK settings set which input port is used for
frequency or period measurements.

Setting

VOLT, 1A, 10A

Panel operation

1. Press the Shift key followed by

the 2nd (Menu) key. Press the

right key three times. The

Frequency/Period menu
appears.

/ EXIT

SHIFT

2ND

MENU

TRIG

TRIG

TRIG
