GDM-8261 User Manual

52

2nd
Measurement
item setting

Press the 2nd key, then the target
item (example: ACV). The display

updates the measurement result.

(example: ACI + ACV)

2ND

ACV

2ND

AUTO

AC

V

A

m

S

AUTO

AC

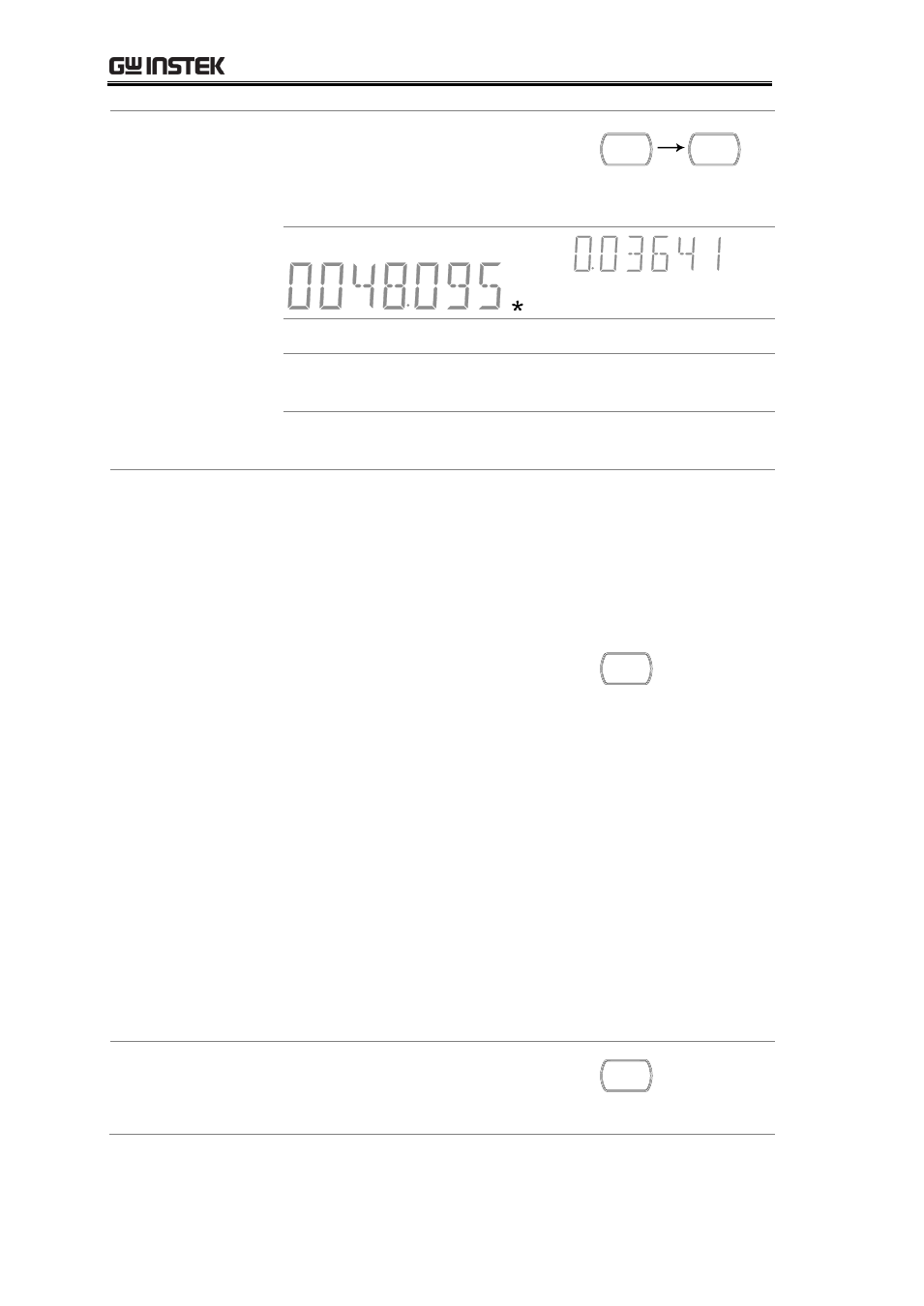

1st Display

Shows the primary measurement result

2nd Display

Shows the secondary measurement

result

2

ND

Indicates that dual measurement is

active

Editing 1st or
2nd
measurement
item settings

After the secondary measurement function has been

activated, the rate, range and measurement item can be

edited for either the primary or secondary display. Note

however, it is more practical to configure the first or
second measurement items before activating dual

measurement mode.

1. Select active
display

Toggle whether the primary or
secondary display is the active

display by pressing the 2ND key:

Primary display: 2ND is not

visible on the display
Secondary display: 2ND is

visible on the display

Do not hold the 2ND key. This will turn

the dual measurement off.

2ND

(toggle

active display)

2. Edit active
display settings

Edit the range, rate or measurement

item for the active display in the

same way as for single measurement

operation. See the Basic
Measurement chapter for details.

Page 23

Turn Off 2nd
Measurement

To turn Off the 2nd measurement,

press and hold the 2nd key for more
than 1 second.

2ND

(hold

1 sec.)
