BASIC MEASUREMENT
45

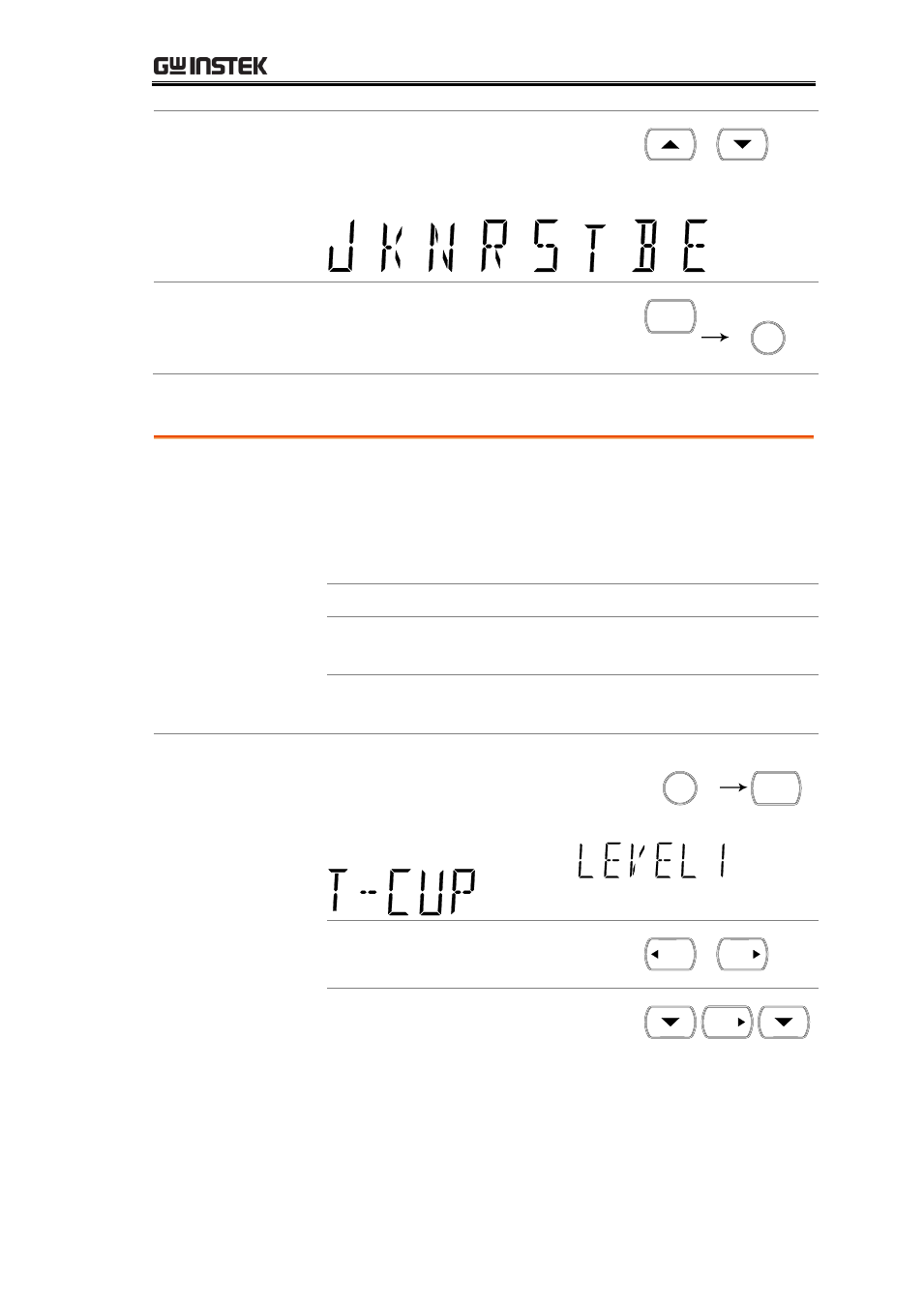

4. Select sensor
type Press the Up/Down key. The
thermocouple type switches to the
next one.
      
5. Confirm and
go back to the
default display Press the Enter key to confirm.
Press the Exit key to go back to the
default display.
AUTO
ENTER
/ EXIT SHIFT
Set Reference Junction Temperature (T-CUP)
Background When a thermocouple is connected to the GDM-8261,
the temperature difference between the thermocouple
lead and the GDM-8261 input terminal should be taken
into account and be cancelled; otherwise an erroneous
temperature might be added.
Type Range Resolution
SIM
(simulated) 0 ~ +50°C 0.01°C
The terminal temperature is manually defined by the user.
Default value: 23.00
1. Open
reference
junction menu Press the Shift key, then the TEMP
(Sensor) key. The sensor selection
menu appears on the display.
/ EXIT SHIFT
TEMP
SENSOR
Press the Left and Right arrow keys
and select T-CUP (thermocouple).
HOLD TRIG
Press Down, Right arrow key and
then Down again. The reference
junction selection menu appears on
the display.
TRIG
