REMOTE CONTROL
137

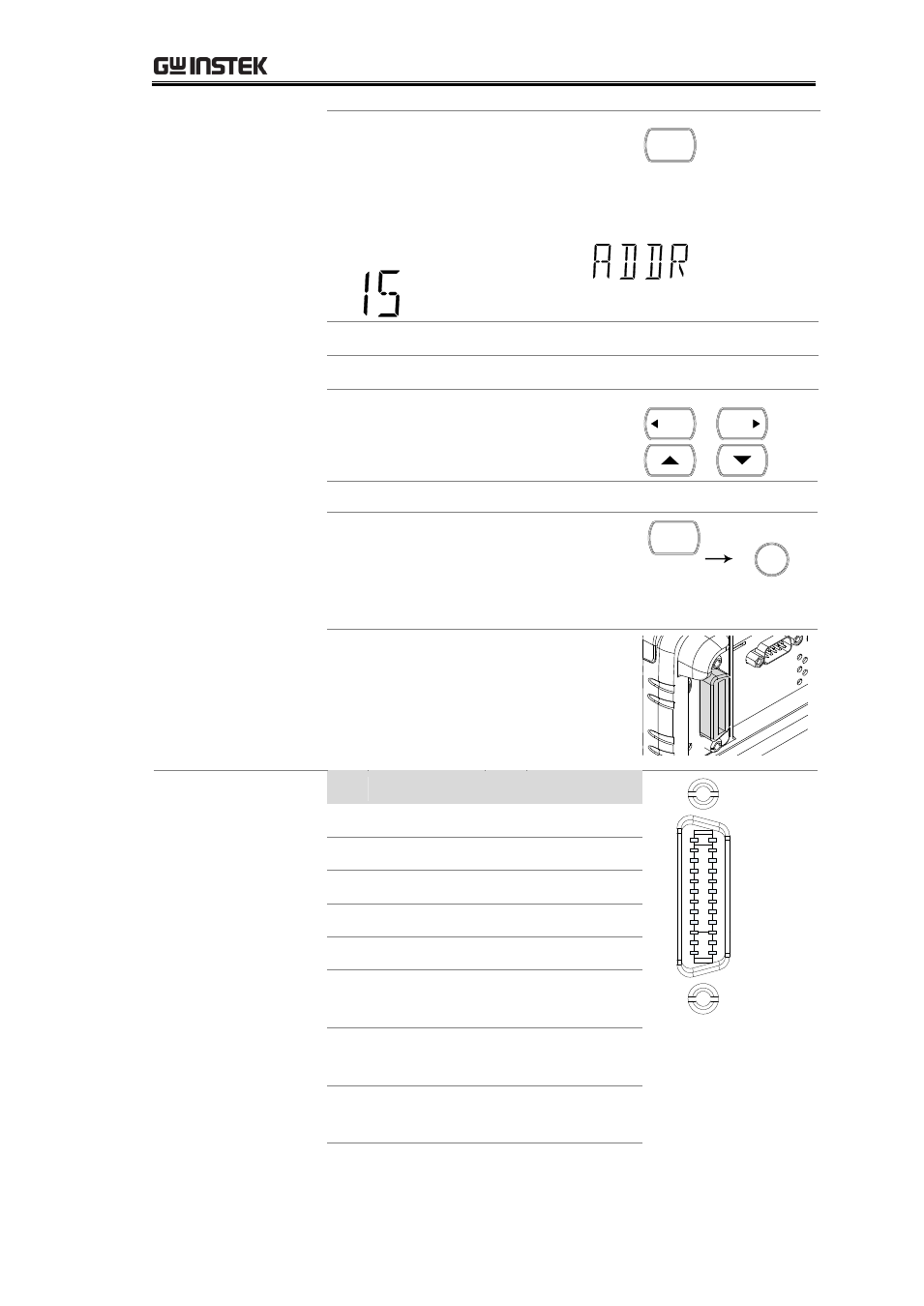

5. To continue to the GPIB
address configuration, press the
Enter key. The GPIB address
configuration menu appears.
AUTO
ENTER
1st display Shows the GPIB address.
2nd display Indicates GPIB address setting
6. Change the address using the
Left/Right and Up/Down keys.
HOLD TRIG
Range 0~30 (Default = 15)
7. Press the Enter key followed by
the Exit key. The GPIB setting
is stored and the display goes
back to the default display.
AUTO
ENTER
/ EXIT SHIFT
8. Connect the GPIB cable to the
rear panel optional
communication port after the
GPIB card has been installed
(page 131).
GPIB pin
assignment Pin Signal Pin Signal
1
12 24
13
1 Data I/O 1 13 Data I/O 5
2 Data I/O 2 14 Data I/O 6
3 Data I/O 3 15 Data I/O 7
4 Data I/O 4 16 Data I/O 8
5 EOI 17 REN
6 DAV 18 Ground
(DAV)
7 NRFD 19 Ground
(NRFD)
8 NDAC 20 Ground
(NDAC)
