GETTING STARTED

19

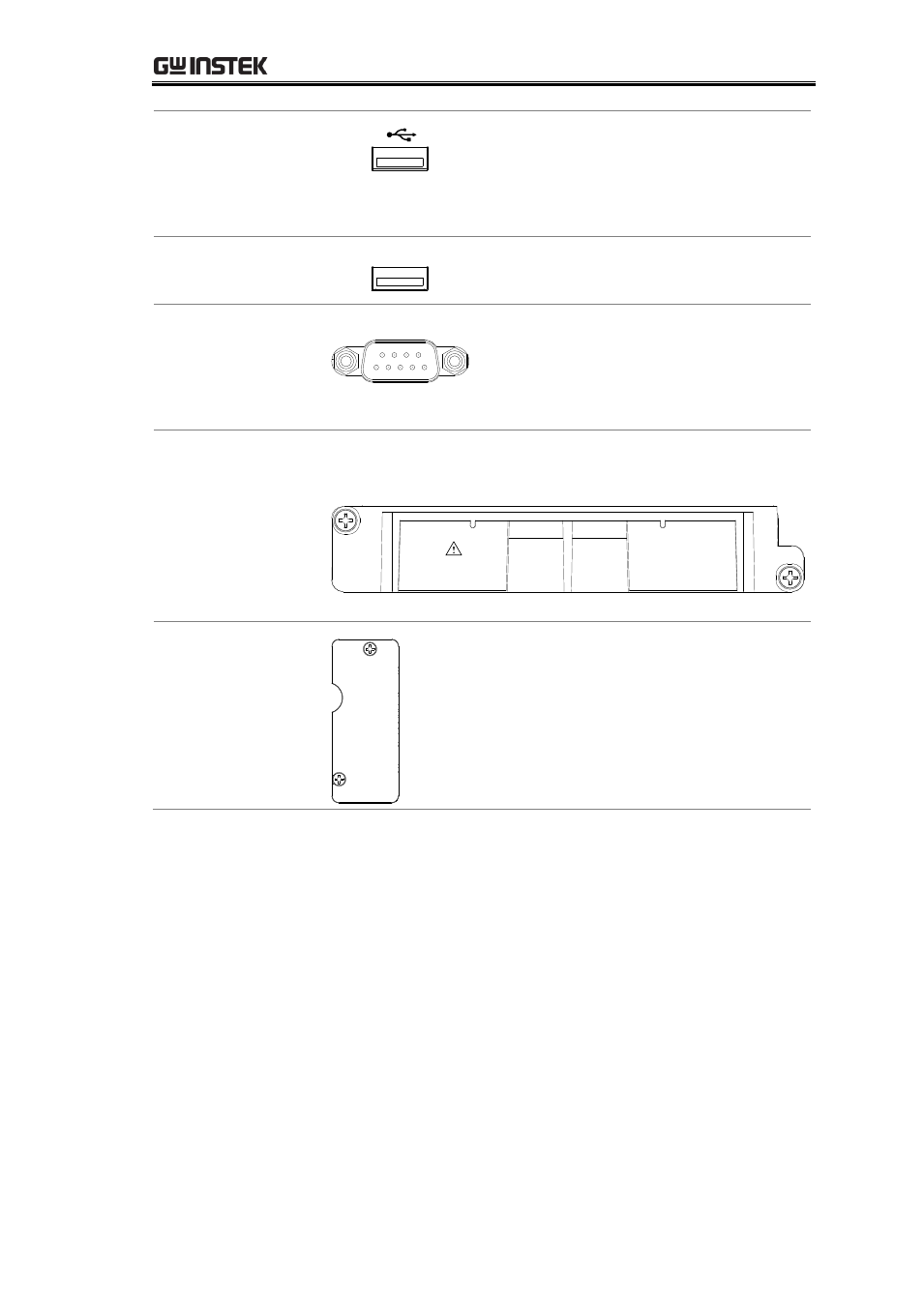

USB device port

Accepts a USB device cable for remote
control; Type A, female connector.
For remote control details, see page

129.

CAL key port

CAL KEY

Reserved for internal purposes such as

firmware updates and calibration.

Digital I/O port

DIGITAL I / O

Accepts a digital I/O cable for the
Hi/Lo limit tests; DB-9 pin, female

connector.
For digital I/O details, see page 121.

Optional slot x1

Accepts the optional 16 channel scanner module. For

scanner details, see page 101.

16 CHANNEL

SCANNER

MAX. RATING

250V , 2A

Optional
Communication
port

Accepts an optional GPIB or Ethernet

card.
