1-12
SM MX100-01E

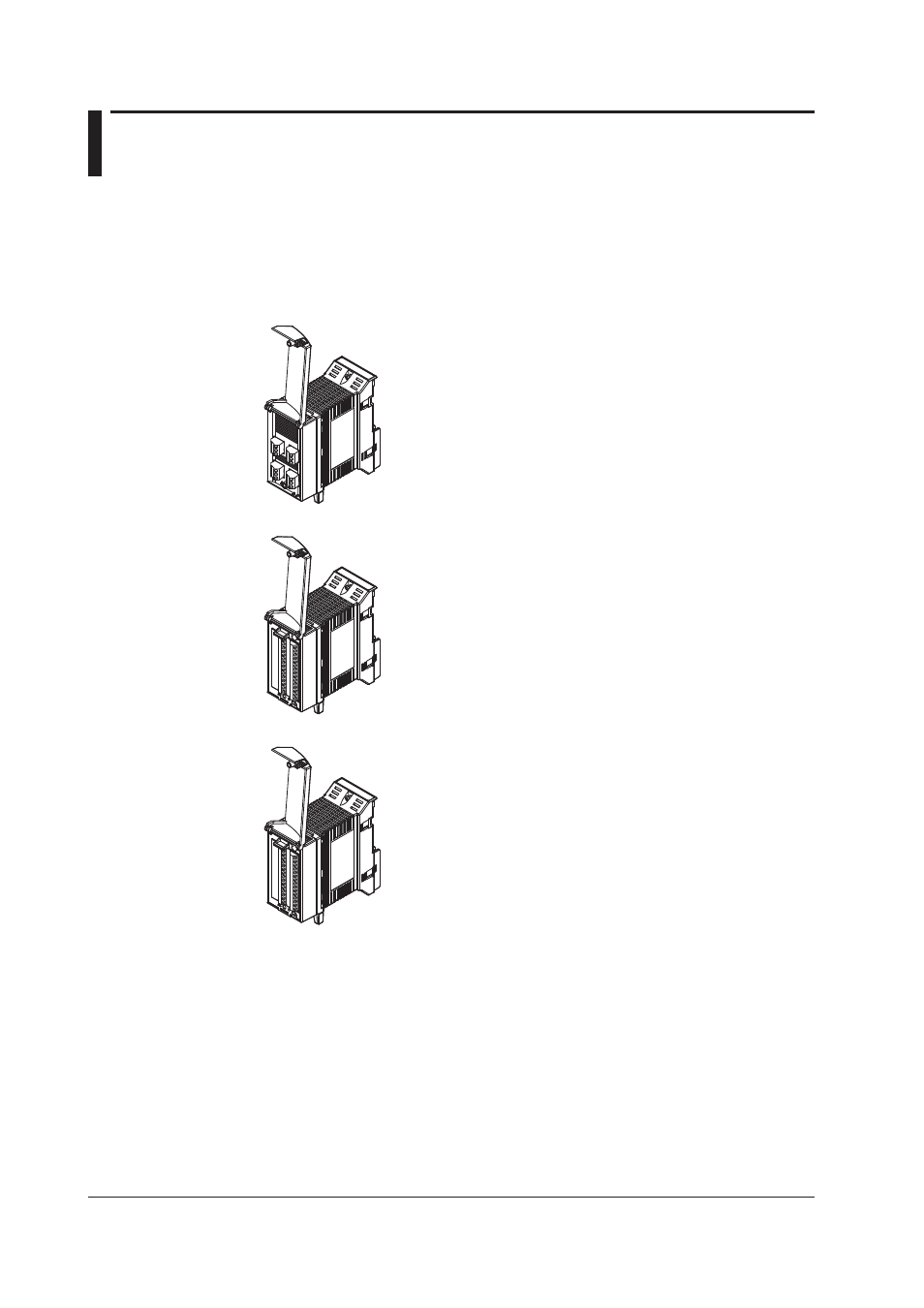

1.5 Input/Output Modules & Base Plate
Input/Output Modules
The following eleven types of modules are available. A screw terminal plate and
separately installed screw terminal block (both sold separately) are available as
accessories for the 10-CH Medium Speed Universal Input Module and the 10-CH High
Speed Digital Input Module.
4-CH, High-Speed Universal Input Module (MX110-UNV-H04)
• Minimum measurement interval: 10 ms (except 50 ms for
temperature measurement
• Maximum number of inputs: 4 inputs
• Input types: DC voltage, TC, 3-wire RTD, and DI (LEVEL,
contact)
10-CH, Medium-Speed Universal Input Module (MX110-UNV-M10)
• Minimum measurement interval: 100 ms
• Maximum number of inputs: 10 inputs
• Input types: DC voltage, TC, 3-wire RTD, and DI (LEVEL,
contact)
6-CH, Medium-Speed, Four-Wire RTD Resistance Input Module (MX110-V4R-M06)
• Minimum measurement interval: 100 ms
• Maximum number of inputs: 6 inputs
• Input types: DC voltage, 4-wire RTD, 4-wire resistance,
and DI (LEVEL, contact)
