Yokogawa PC-Based MX100 User Manual
Page 176
7-36
SM MX100-01E
7.

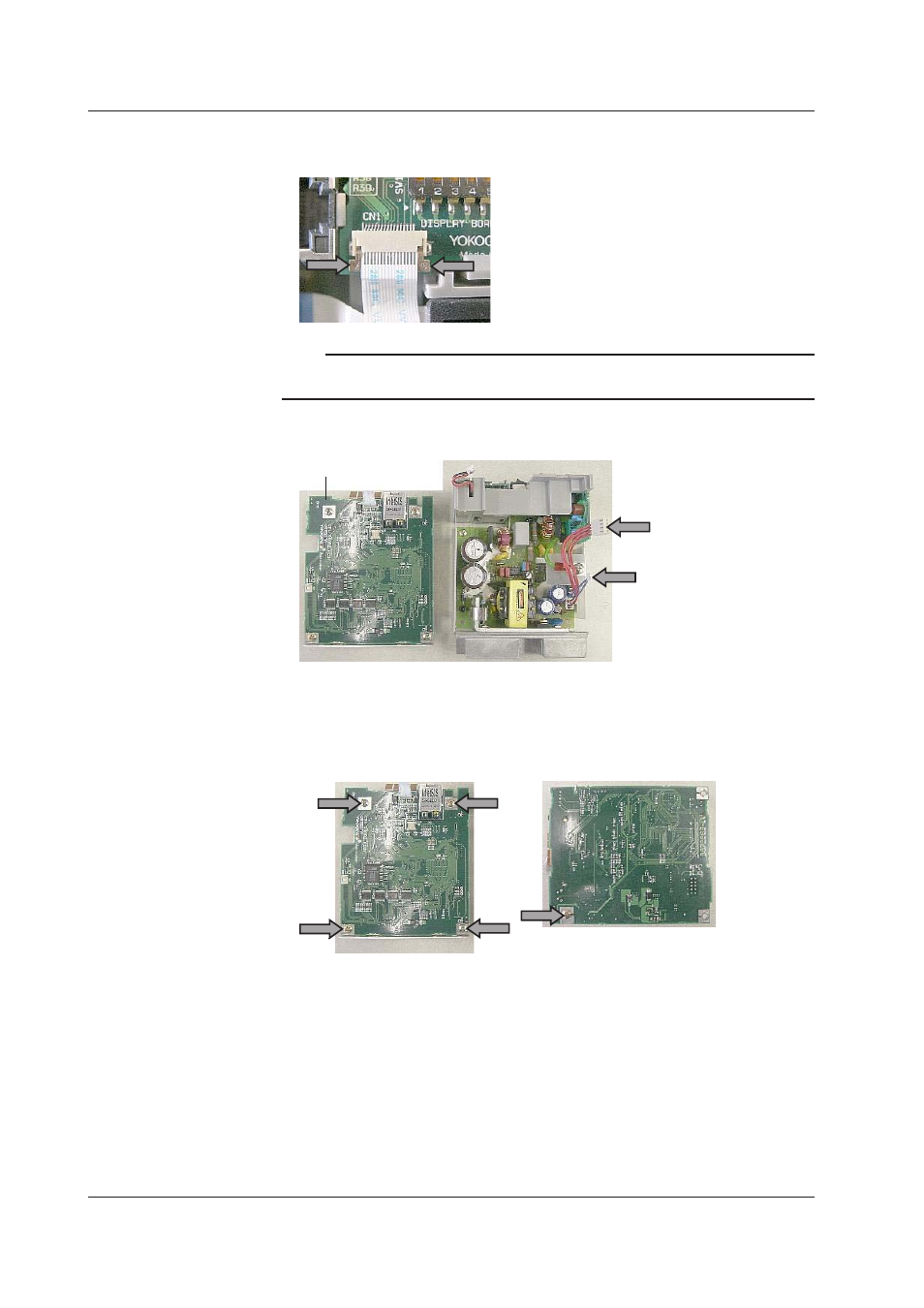

Lift the left and right side of the part indicated by the arrows of connector CN1 in
the figure below. The SUMICARD comes out.
Note
When attaching the SUMICARD to a connector, insert the flat cable all the way into the
connector, then push in the part indicated by the arrows.
8.
Remove the 2 cables on the right side of the figure below.
CPU Assembly
9.
Remove the CPU Assembly
Remove the CPU Board and Memory Board from the CPU Assembly
10.
Remove the five screws as indicated by the arrows in the figure below.
7.9 Disassembling the MX100 Main Module
