Yokogawa PC-Based MX100 User Manual
Page 183
7-43
SM MX100-01E
Procedures for Disassembly
1
2
3
4
5
6
7

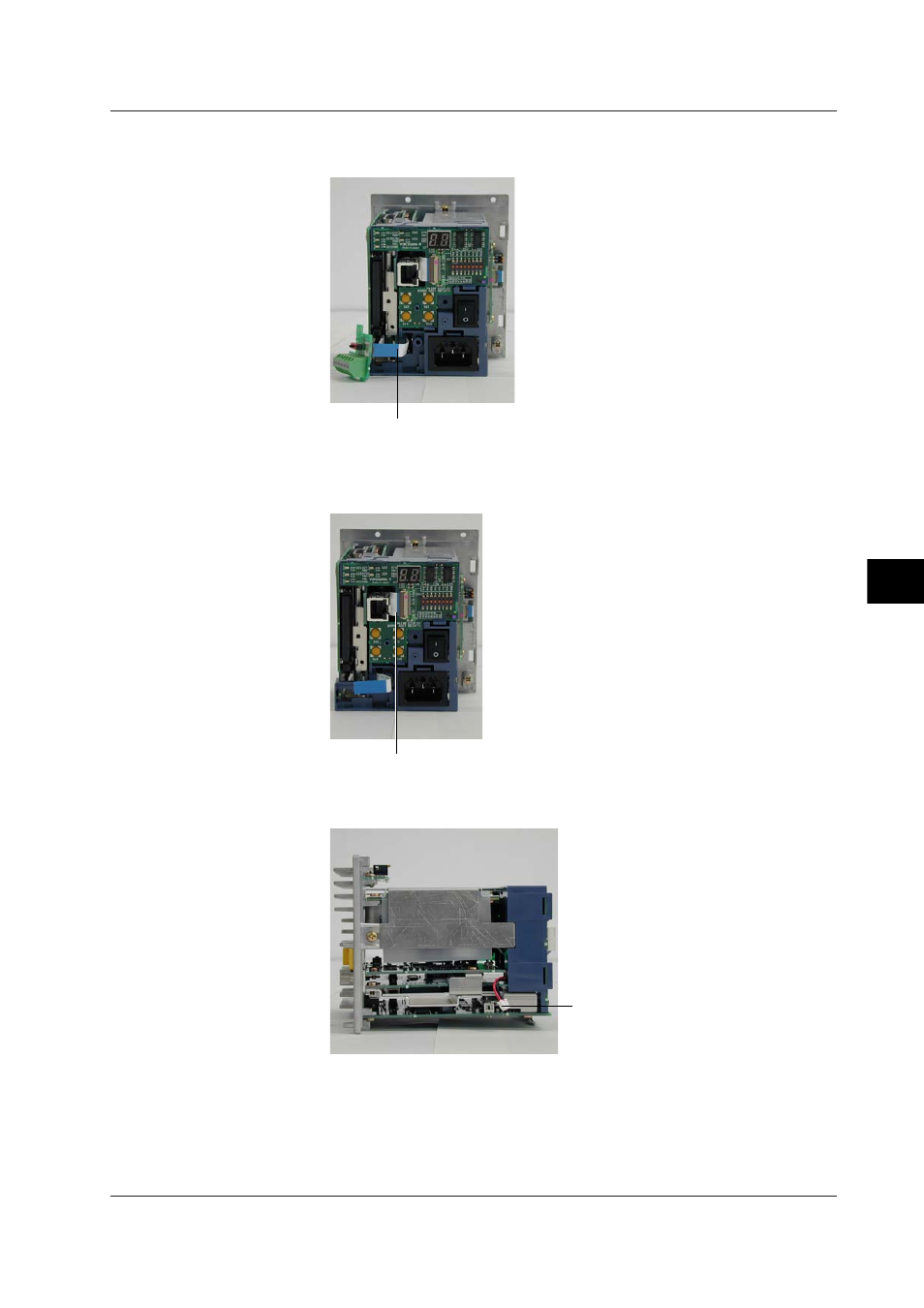

12.
Release the RS422A board Assembly’s connector lock, then remove the
SUMICARD.
SUMICARD
13.
Release the Display board Assembly’s connector lock, then remove the Flexible
printed circuit board.
SUMICARD
14.
Remove the Battery connector from the left panel.
Battery connector
7.10 Disassembling the MW100 Main Module
