Yokogawa PC-Based MX100 User Manual
Page 175
7-35
SM MX100-01E
Procedures for Disassembly
1
2
3
4
5
6
7

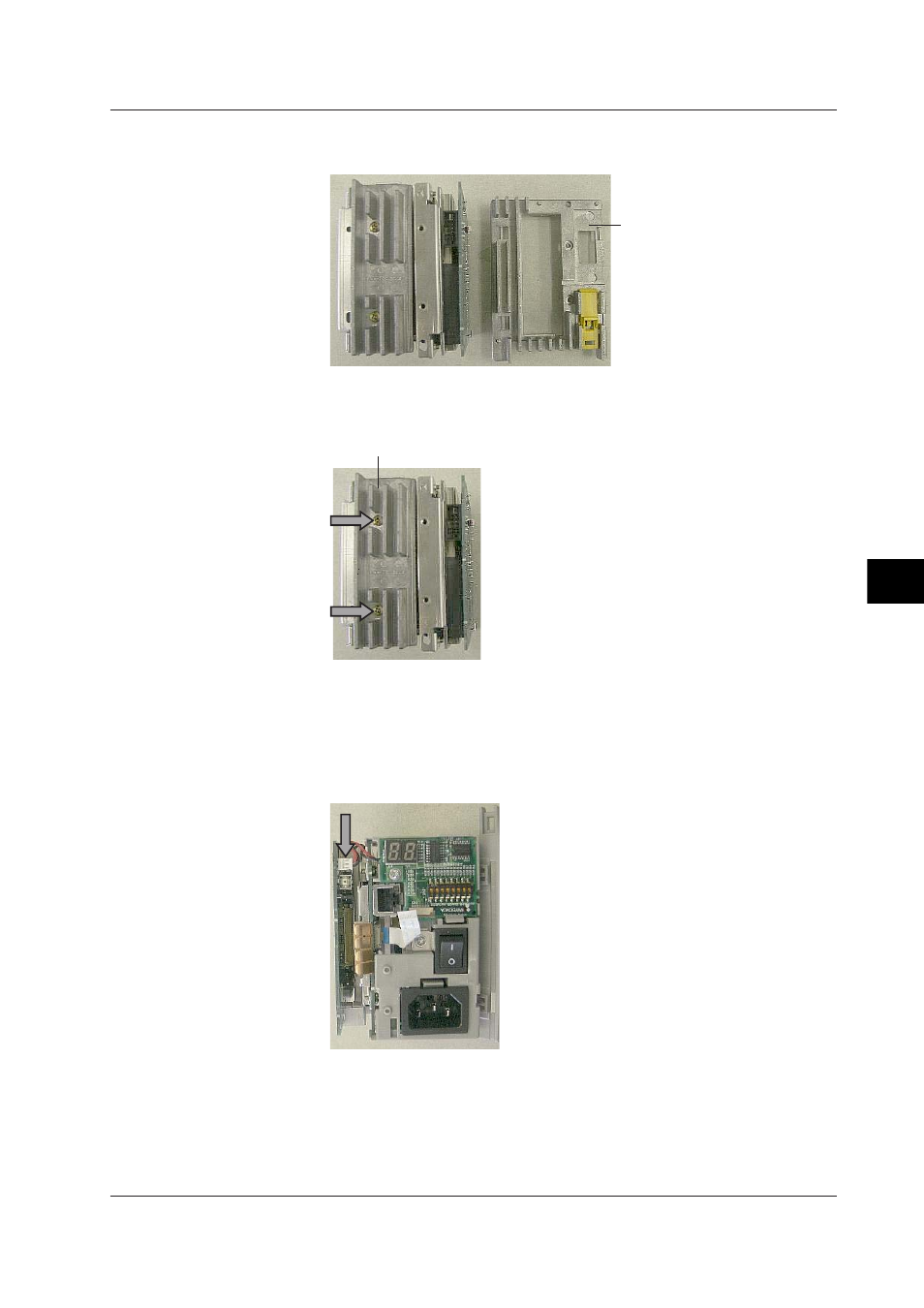

3.
Remove the CPU Back Plate.
CPU Back Plate removed
CPU Back Plate
Remove the Heat Sink
4.
Remove the 2 screws as shown in the figure below.
Heat think
5.
Remove the Heat Sink.
Remove the CPU Assembly
6.
The figure in step 5 as is shown in the figure below as seen from the left side.
Remove the connectors shown by the arrows.
7.9 Disassembling the MX100 Main Module
