7.2 Disassembling the MX110 Analog Input Module
7.2.1 Disassembling the MX110-UNV-H04

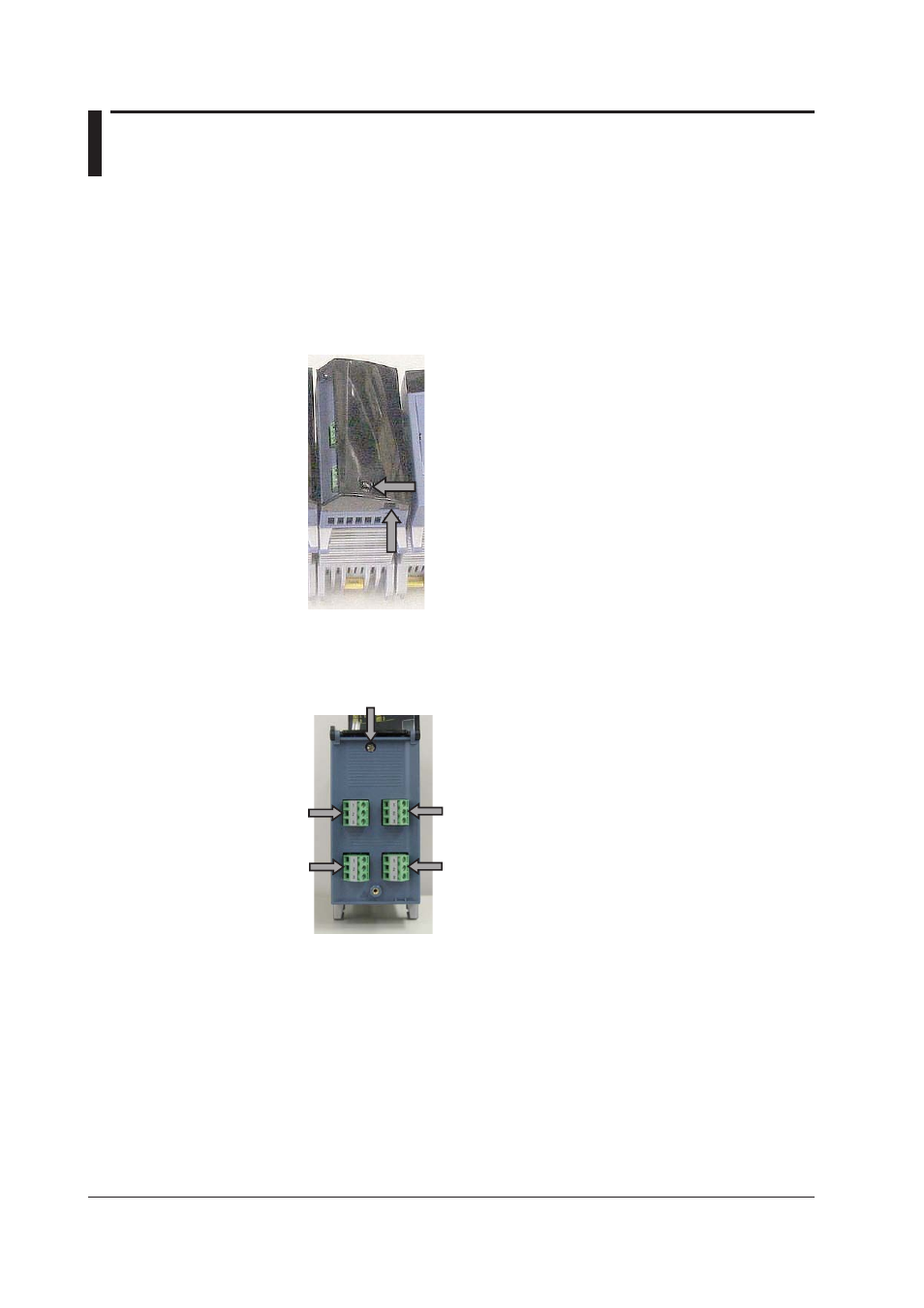

Open the TR Cover
1. Loosen the screw indicated by the upper arrow in the figure below with a flat head
screwdriver (the screw will not fall out from the TR Cover, so loosen the screw
completely).
2. While pushing the indentation indicated by the lower arrow in the figure below, lift
the TR Cover upward and remove.
Remove the Terminals
3. Remove the four terminals indicated by the arrows in the figure below (you can
pull them out by hand).
