Yokogawa PC-Based MX100 User Manual
Page 143
7-3
SM MX100-01E
Procedures for Disassembly
1
2
3
4
5
6
7

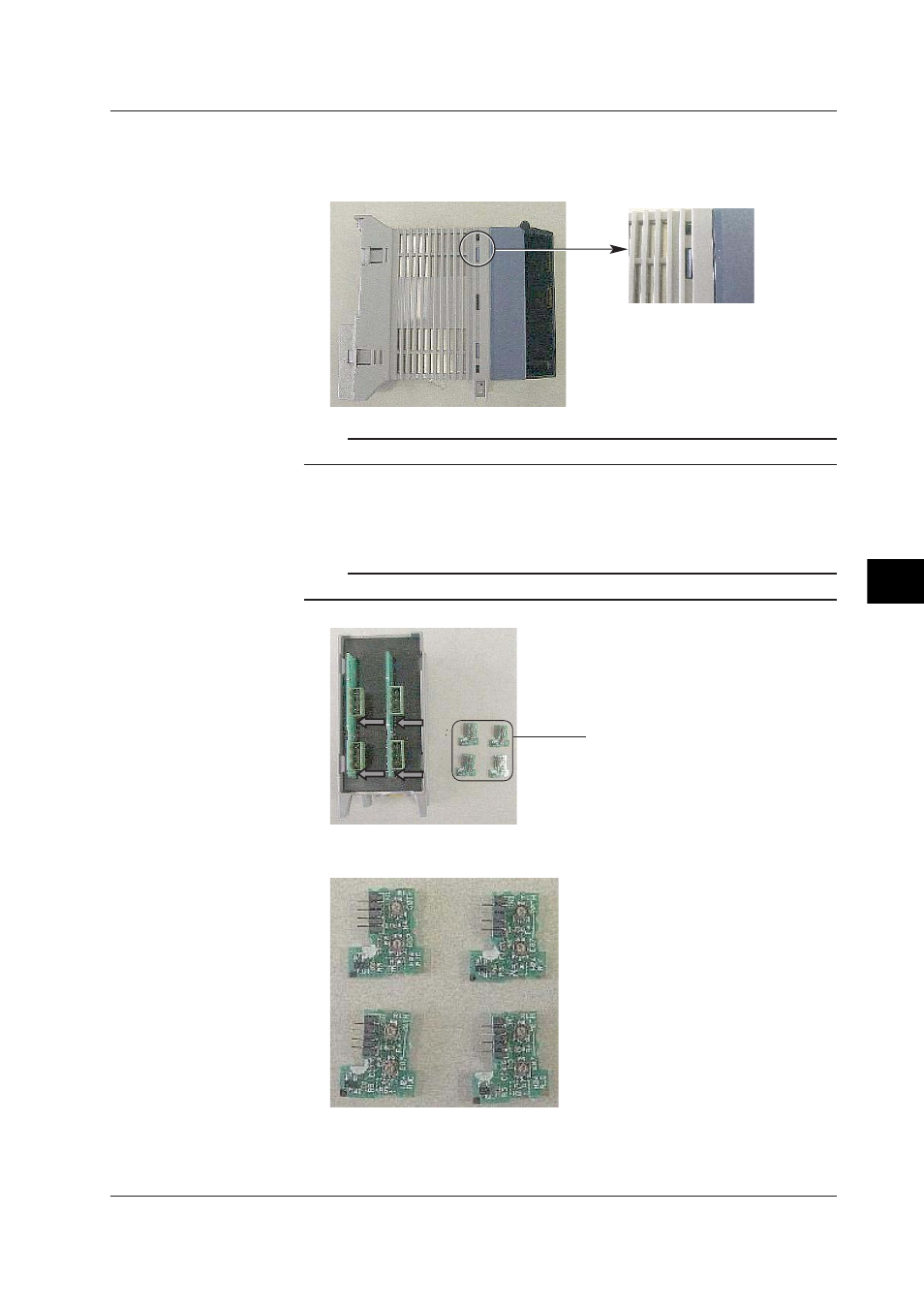

Remove the Bezel
4.
Push in the tabs indicated by the arrow in the figure below, then remove the
Bezel.
Note
If you free the tabs one by one, it is easier to remove the Bezel.
Remove the H04 RJC Boards
5.
Remove the four H04 RJC Boards indicated by the arrows in the figure below.
Note
Please take note to replace boards in the same positions when reassembling.
H04 RJC Board
Boards removed (when reassembling, insert them into their original positions)
7.2 Disassembling the MX110 Analog Input Module
