1.3 MW100 System Overview
MW100 Data Acquisition Unit
The MW100 Data Acquisition Unit consists of a main module equipped with an Ethernet
port, I/O modules for input and output of signals (these are the same as those for the
MX100 Data Acquisition Unit), and a base plate on which the first two items are mounted.
The main module comes with a HTTP server function, allowing users to easily enter
settings and monitor measured data from a PC using a browser. The MW100 can be
used for data acquisition on site as a standalone, enabling data acquisition on up to 360
channels using the Modbus/TCP function.
For details, see the user’s manual (IM MW100-01E).
System Configuration
The MW100 Data Acquisition Unit can be flexibly configured for a variety of measuring
environments.

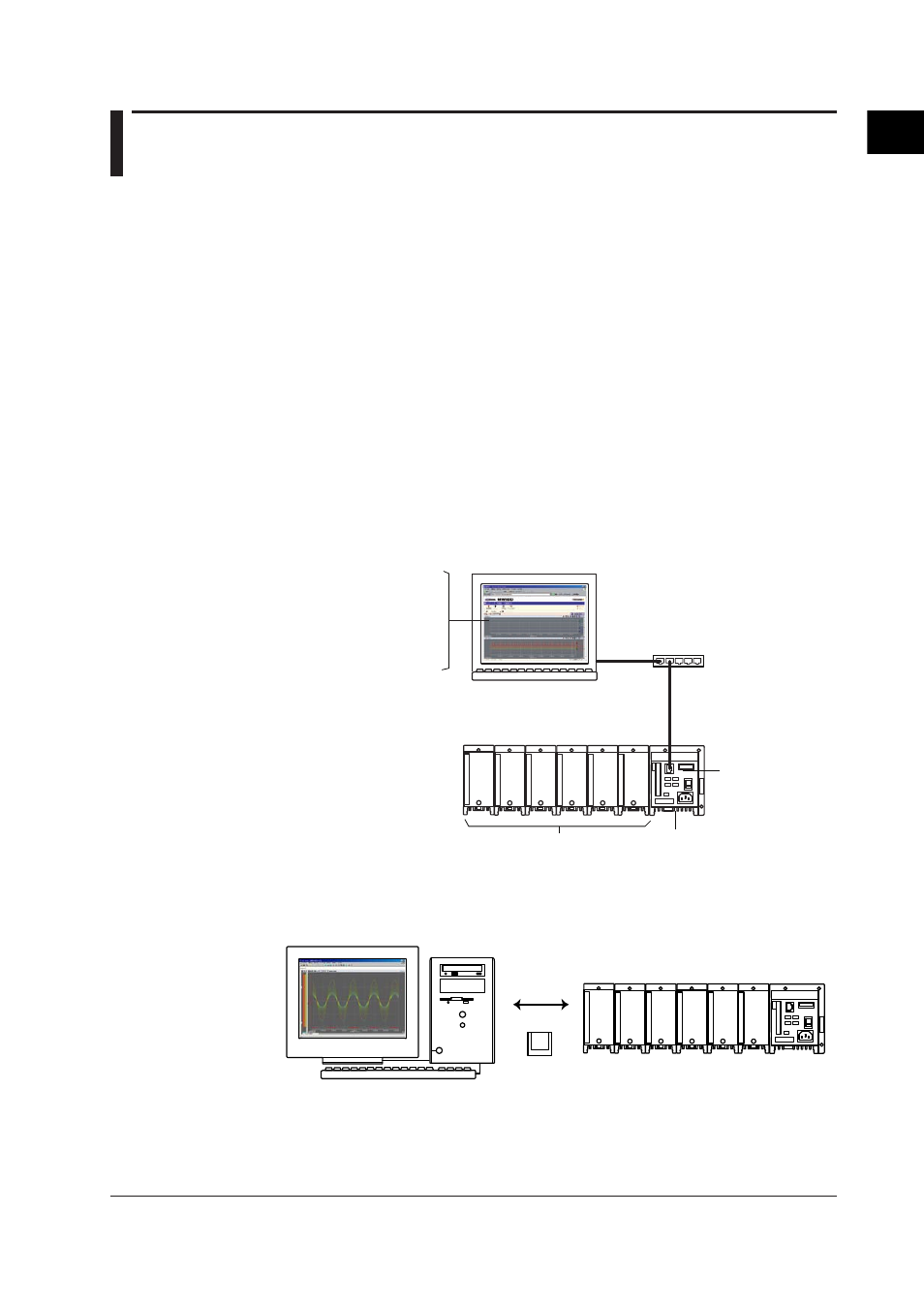

One-to-one Connection with a PC
This is an example of a system for small scale logging, setting the IP address, and other
tasks.
MW100
MW100 Data Acauisition Unit
Ethernet port
Using a Web browser:
• Easy setting entry
• Monitoring of measured
data
Using PC software:
• IP address setting
• Calibration
Hub
Input/Output module
Main module
PC
Standalone Configuration
This is an example of configuration for an on-site standalone data acquisition system.
PC
CF card
MW100 Data Acauisition Unit
MW100
