7.10 Disassembling the MW100 Main Module
4.

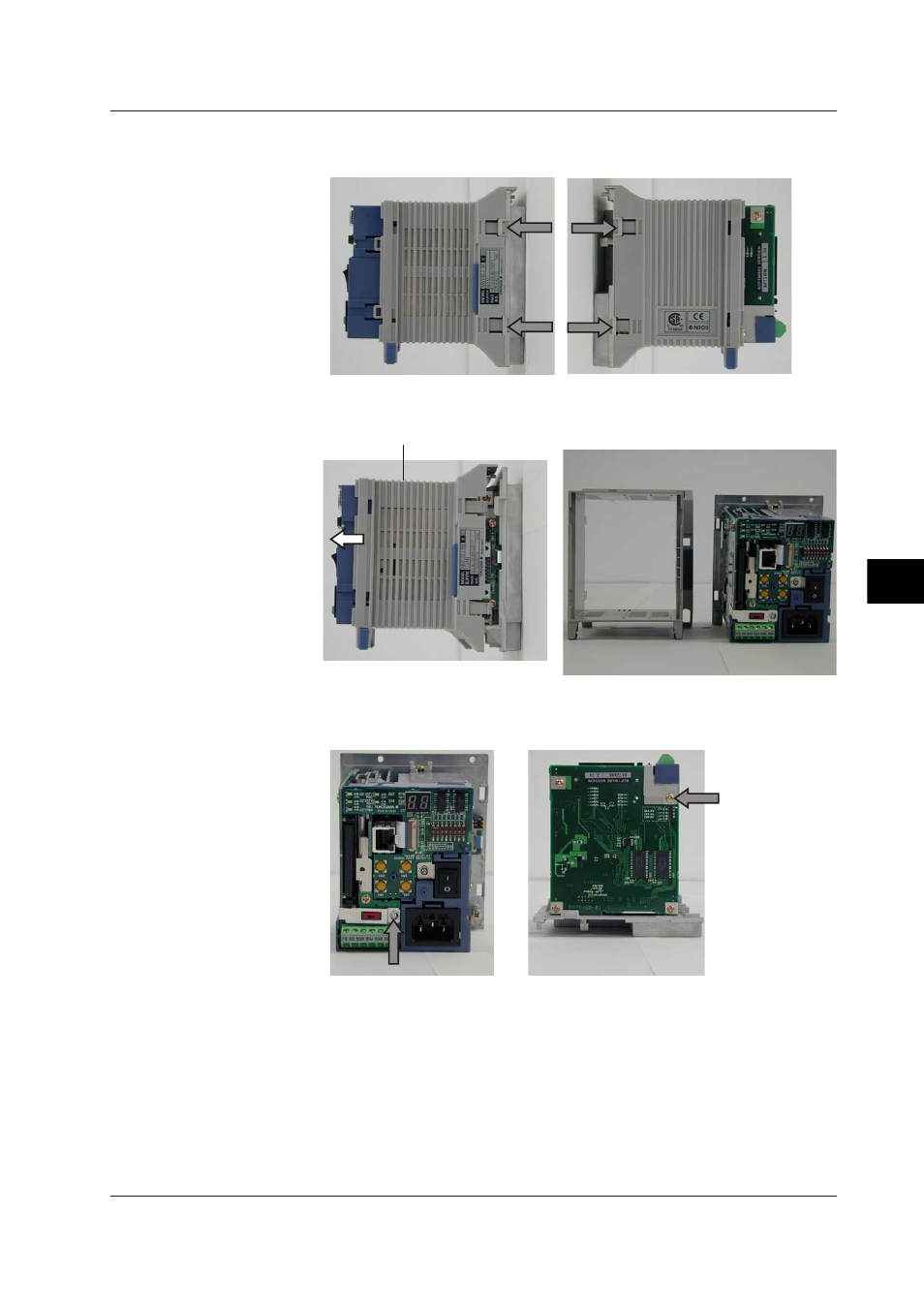

Remove 2 latches each from both the left and right sides (for a total of 4) of the
case shown in the figure.
5.
Pull the case in the direction of the arrow and remove it.
Case
Case removed
6.
Remove the screw from the front panel.
Front panel
Left side
7.
Remove the screw from the left panel.
