7 Page 7 - 18 TANK SENTINEL ® INSTALLATION GUIDE
NOTE
After Sensor Installation
When all sensor wiring is completed:
1) Reinstall the I.S. Probe and Sensor cover
2) Test all sensors for proper operation as described in each Sensor Installation
Manual, and the Tank Sentinel User’s Guide
3) In high water level applications, or in direct cable burial applications:
waterproof the cable and splice connectors of all tested probes with
TSP-DB1 Direct Burial Splice (sealing) Kit. Epoxy is provided along with
the sealing kit. You may order additional TSP-DB1 sealing kits from the
factory. DO NOT seal connectors with silicone rubber because it contains
acetic acid, which is corrosive and will cause future equipment failures.
4) Install the weatherproof junction box gasket and cover
5) Seal the EYS conduit fittings of all tested sensors with epoxy, and install the
manhole cover
WARNING After installation, you must test each sensor for proper operation.
Failure to test sensors may result in undetected leaks which could cause
serious legal, environmental, and heath and safety hazards.
INCON recommends that all sensors be inspected and tested at least once per
year.
CAUTION State and Local codes may require more frequent periodic
inspection and testing of each sensor. It is the system owner’s responsibility to
comply with all codes and regulations.

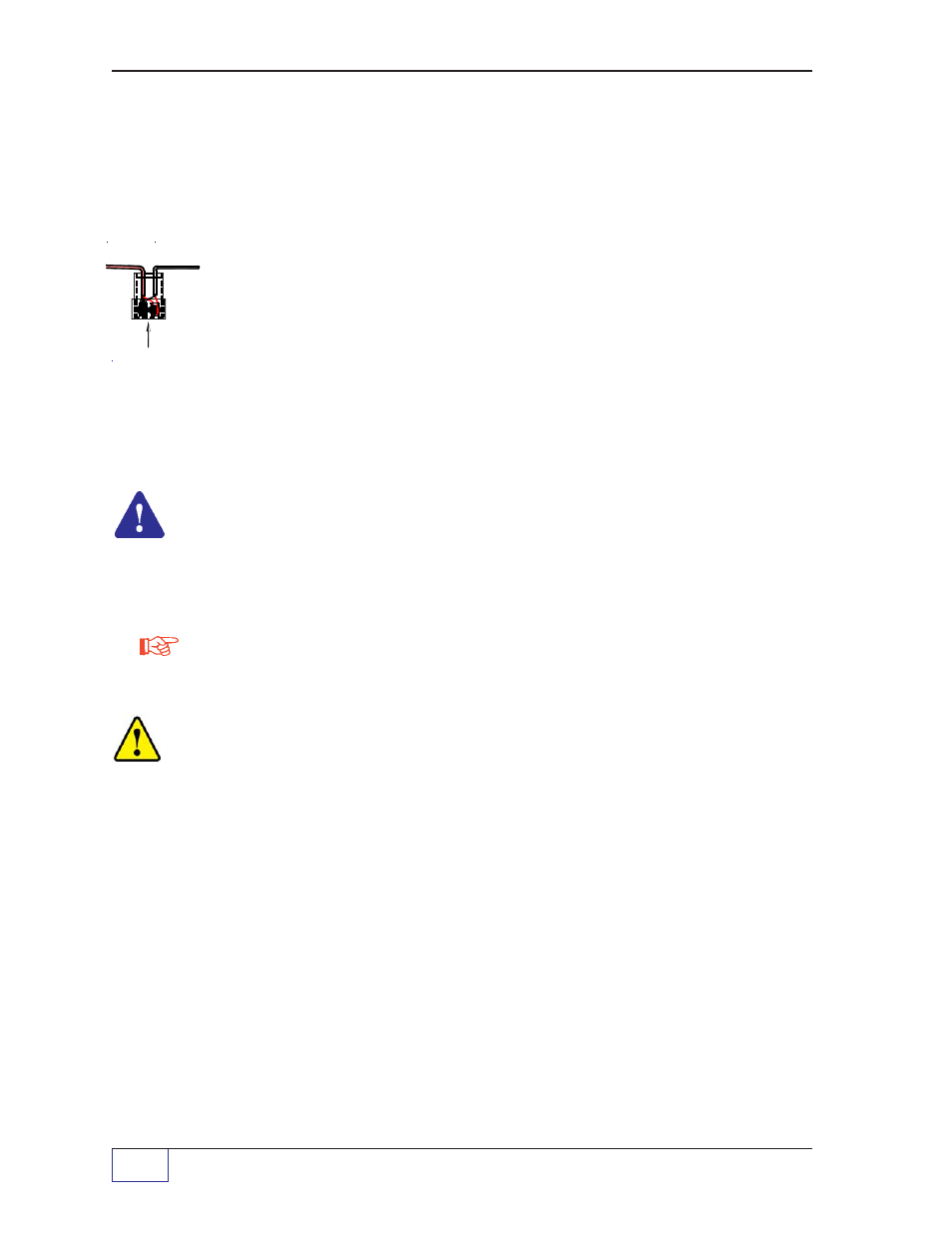

CABLE FROM
PROBE
(OR SENSOR) CABLE
FROM
CONSOLE
TS-DB1 SPLICE KIT
(EPOXY FILLED)
