SYSTEM WIRING
Page
7 - 5
7
connected at the console, a dangerous condition will be created which could
result in an explosion.
TABLE 7-1
120 VAC Line Power Wire Connection List:
Electrical Panel
No. Conductors, Color (Gauge)
Circuit
Console Terminal
10 Amp C.B. (Load) 1 Black wire,16 AWG (1.3 mm) min.
110 VAC Power
J17 - L1
Ground Bus
1 White wire,16 AWG (1.3 mm) min.
Neutral
J17 - L2 (NEUT)
Ground Bus
1 Green wire,16 AWG (1.3 mm) min.
Ground
J17 - GND
Ground Bus
1
*
Green wire,12 AWG (2.1 mm) min.
Safety Ground
J17 - SAFETY GND
*
= two (2) Safety Ground wires may be required in some locations (check your Local and
National Electric Codes).

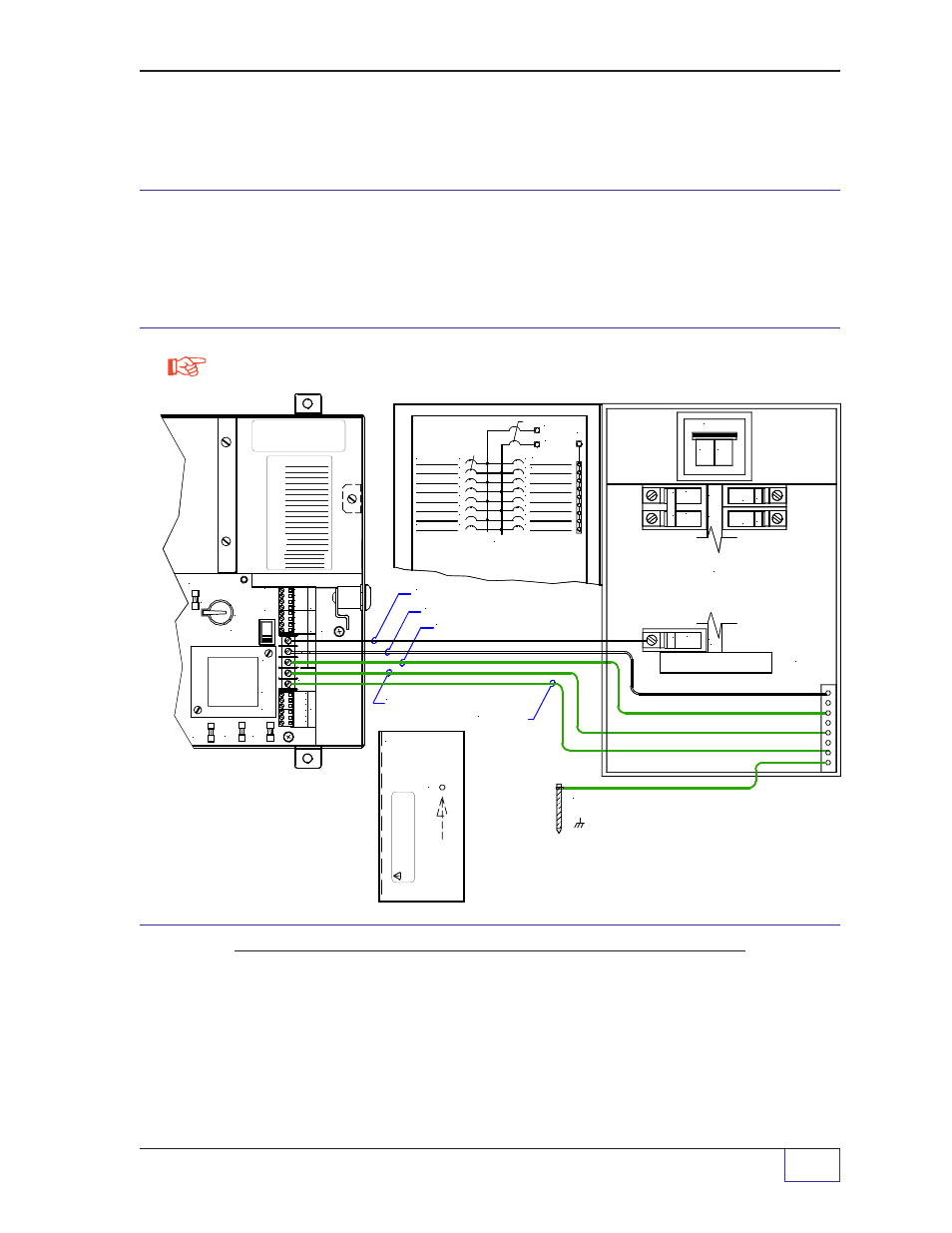

Figure 7-3a.
120 VAC Power and I.S. Ground Wiring
Check Electrical Resistance to Earth Ground
After wiring the I.S. Safety Grounds, check the resistance between the I.S.
safety ground terminals at the console to earth ground. This resistance must be
less than 1 ohm.
